Controls and displays

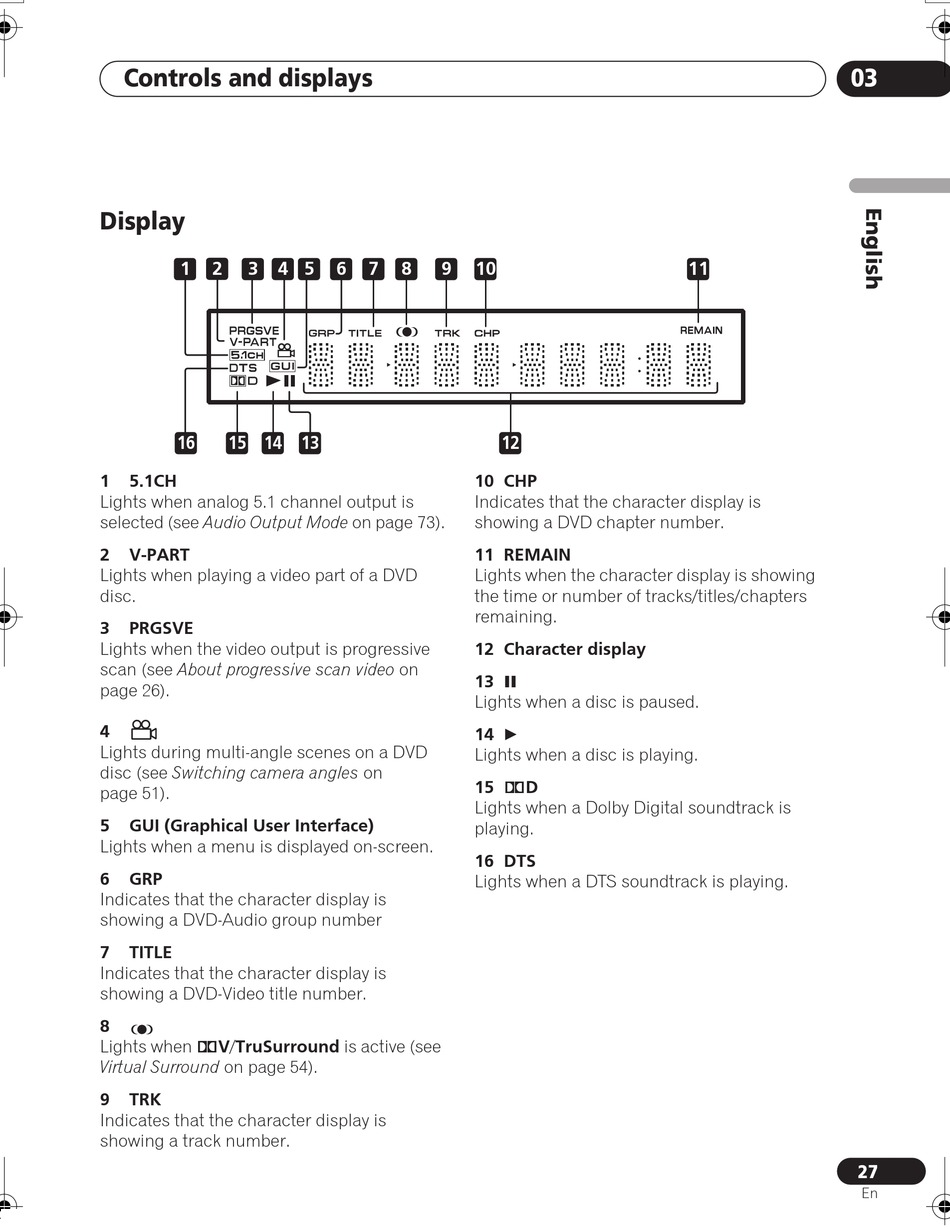

Display

2
1 3
16 15 14 13
1 5.1CH
Lights when analog 5.1 channel output is
selected (see Audio Output Mode on page 73).
2 V-PART
Lights when playing a video part of a DVD
disc.
3 PRGSVE
Lights when the video output is progressive
scan (see About progressive scan video on
page 26).
4
Lights during multi-angle scenes on a DVD
disc (see Switching camera angles on
page 51).
5 GUI (Graphical User Interface)
Lights when a menu is displayed on-screen.
6 GRP
Indicates that the character display is
showing a DVD-Audio group number
7 TITLE
Indicates that the character display is
showing a DVD-Video title number.
8
Lights when 2V/TruSurround is active (see
Virtual Surround on page 54).
9 TRK
Indicates that the character display is
showing a track number.
4 5 6 7 8 9 10
12
10 CHP
Indicates that the character display is
showing a DVD chapter number.
11 REMAIN
Lights when the character display is showing
the time or number of tracks/titles/chapters
remaining.
12 Character display
13
Lights when a disc is paused.
14
Lights when a disc is playing.
15 2D
Lights when a Dolby Digital soundtrack is
playing.
16 DTS
Lights when a DTS soundtrack is playing.
