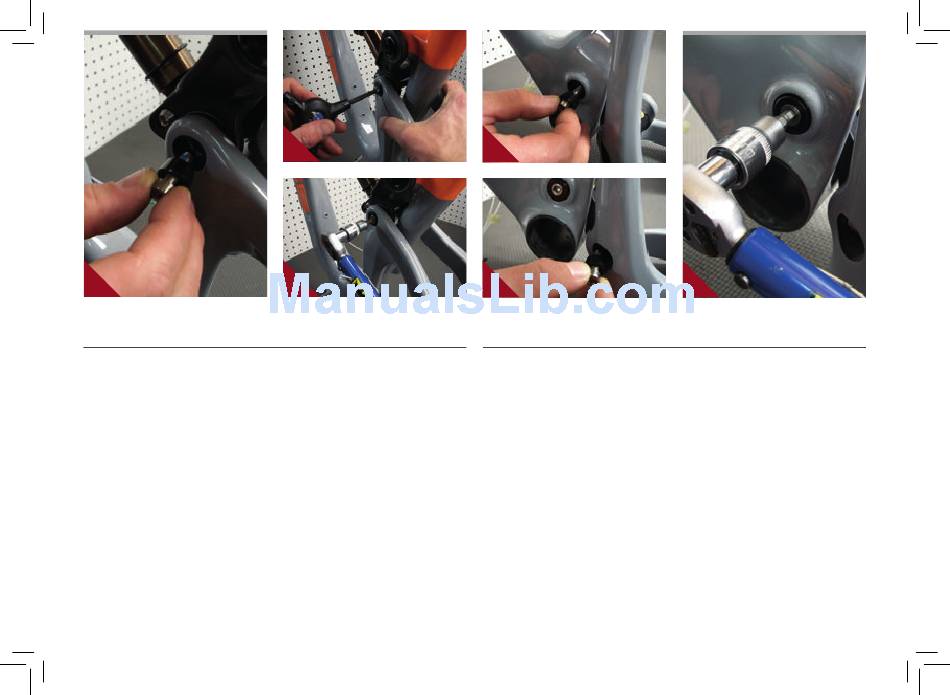

T I G H T E N I N G S E AT S TAY S T O T O P L I N K //
A
Grease and install adjuster cone
(#130807) into head of main pivot bolt
(#130791) and greased M6x22mm bolt
(#410032) through the adjuster cone
into the main pivot bolt (IMAGE #14).
15
16
B
Using hand pressure, squeeze the top
of seat stay together at the lower top
link location to eliminate side to side
play (IMAGE #15) then use a 5mm HEX
to make snug.
C
Torque M6x22mm (#410032) to 14 NM
or 125 in/lbs (IMAGE #16).
17
18
INSTALLING ADJUSTER CONES ON LOWER LINK //
A
Grease and install adjuster cone
(#130807) into head of main pivot bolt
(#130791) and greased M6x22mm bolt
(#410032) through the adjuster cone into
the main pivot bolt (IMAGES #17 & 18).
I N T E N S E
19
B
Torque M6x22mm (#410032) to 14 NM
or 125 in/lbs (IMAGE #19).
