Aligning The Insulation And Attaching The Controller - Froling S3 Turbo Installation Instructions Manual

Assembly
Installing the boiler

4.5.8 Aligning the insulation and attaching the controller

Installation Instructions S3 Turbo | M1081217_en

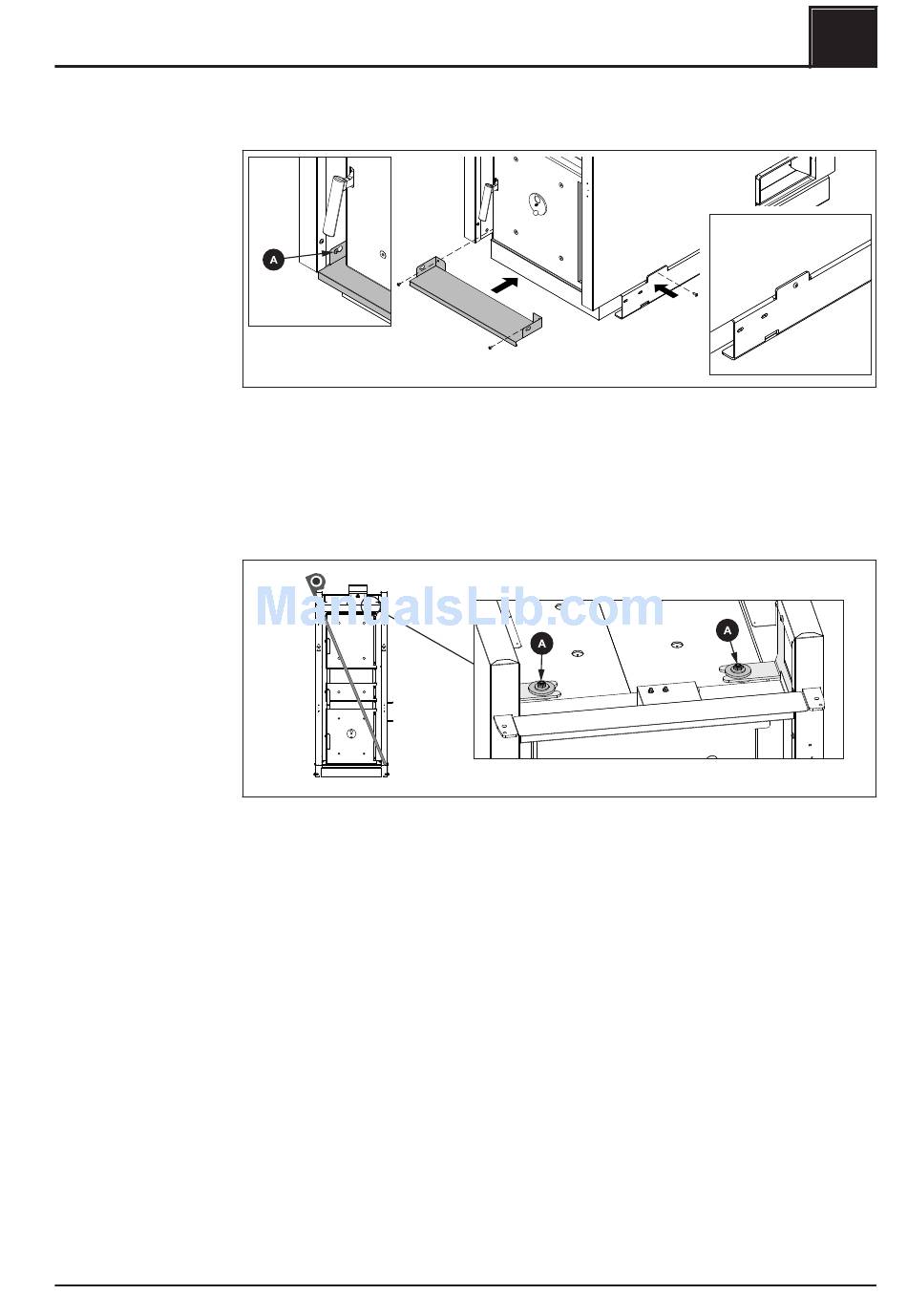

❒ Hang the lower spacer plate on the rivets (A) between the insulating side panels
and attach with one thread forming screw each
❒ Push the insulating side panels toward the rear until the borehole on the flaps
corresponds with the borehole on the side panels
❒ Secure the insulating side panels to the right and left at the flap on the boiler base
with thread forming screws
❒ Measure the diagonals and align the insulating side panels so that the two
diagonals are the same
➥ Adjust the position of the side panels if necessary
❒ Tighten the nuts (A) on the two brackets of the insulating side panels at the top of
the boiler
