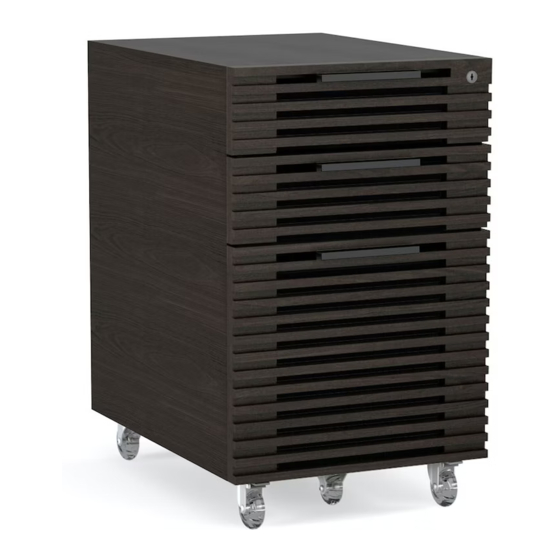

BDI CORRIDOR Assembly Instructions

Mobile file pedestal
Hide thumbs Also See for CORRIDOR:
1
2
3
4

Advertisement

Quick Links

Download this manual
CORRIDOR
MOBILE FILE PEDESTAL
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your
BDI products. Register today and you will be entered to win free a BINK
table from BDI. www.bdiusa.com/product-registration/
Placement and Maintenance
Corridor
Office furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer with a
moist cloth.
Your Corridor
Office furniture is engineered for easy assembly. Carefully
follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@
bdiusa.com. For all other concerns, please contact your BDI retailer.
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI
Made in China. 02.05.2016 V2
6507
TM
A1 Cabinet
bdiusa.com
customerservice@bdiusa.com
H2 M4 x 38mm
Screw x 6
H5 Phillips Machine
Screw x 20
C2 Pull x 3
C4.1 Small File Bar x 2
C6 File Bar Clip x 4
C8 Locking Swivel
Caster x 4
C9 Fixed Caster x 1
Tool Required:
Phillips screwdriver

Advertisement

loading
Need help?

Need help?

Do you have a question about the CORRIDOR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BDI CORRIDOR

Summary of Contents for BDI CORRIDOR

  • Page 1 Phillips screwdriver Designed by Matthew Weatherly. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI Made in China. 02.05.2016 V2...
  • Page 2 Step 2 - Rest Cabinet on its back side. Attach Casters to Cabinet using Screws H5 and tighten with a Phillips screwdriver. C8 (x4) H5 (x20) C9 (x1) Step 3 - Attach Pulls using Screws H2 and tighten with a Phillips screwdriver. H2 (x6) bdiusa.com CORRIDOR 6507 customerservice@bdiusa.com MOBILE FILE PEDESTAL...
  • Page 3 For letter files facing sideways, attach File Bar Clip C6 to both ends of Small File Bar C4.1 as shown. Place the file bar assembly in the notches located on the left and right drawer side panels. For front facing letter files, skip this step altogether. Step 5 - Legal File Accommodation bdiusa.com CORRIDOR 6507 customerservice@bdiusa.com MOBILE FILE PEDESTAL...
  • Page 4 Corridor file cabinets are pre-assembled with matching locks. If you require unique locks for your home or office use, please contact BDI Customer Service at customerservice@bdiusa.com to purchase a unique lock and key replacement kit which includes a lock assembly and two keys. To replace the lock please follow the instructions below.

This manual is also suitable for:

6507
