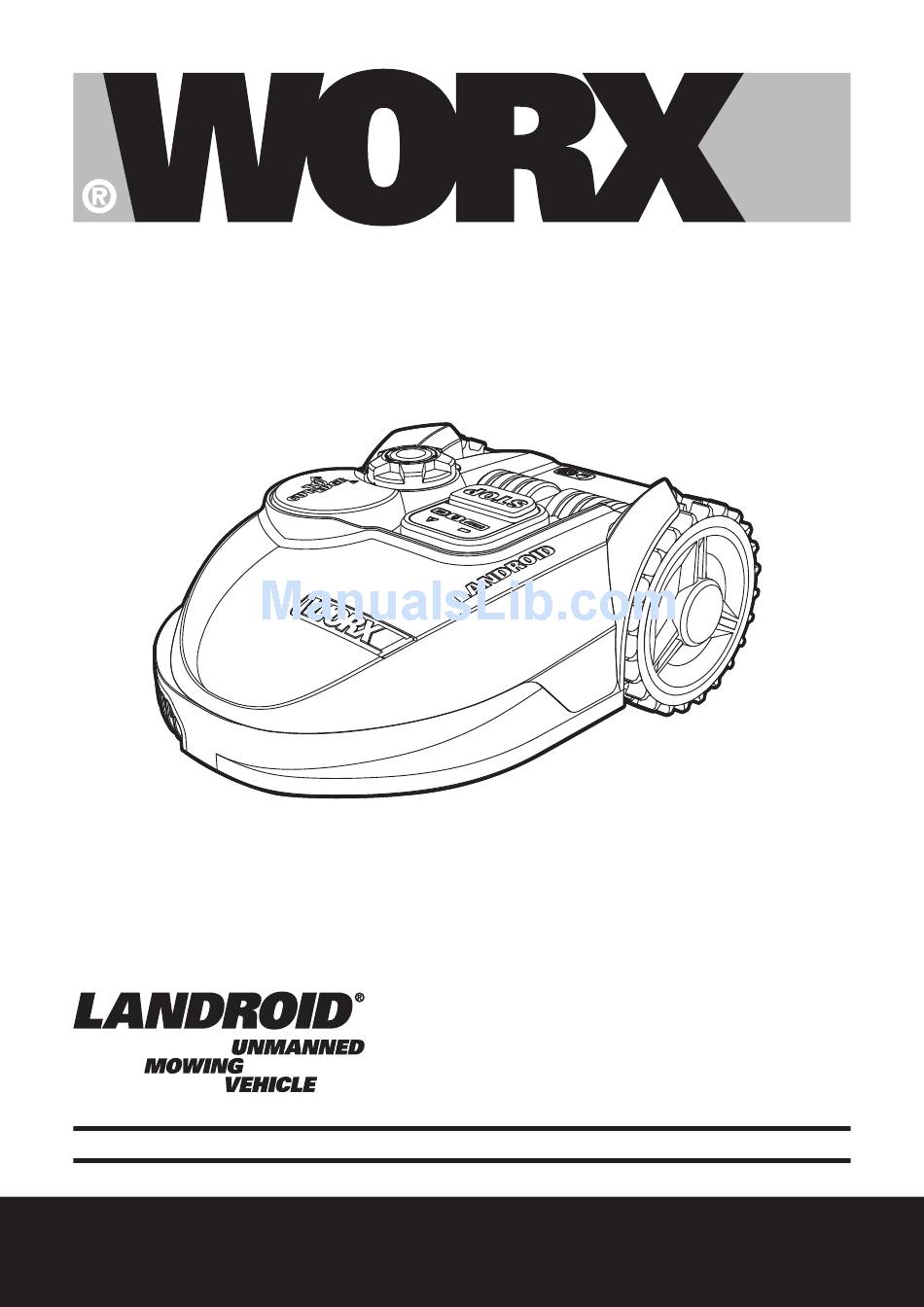

- Page 1 Lawn Mowing Robot...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS TABLE OF CONTENTS 1. Product Safety 1.1 General & Additional Safety Instruction ® 1.2 Information on the Landroid 2. Component list 3. Control Panel 4. Intended Use ® 5. Understanding Your Landroid ® 5.1 How does my Landroid know what to mow? ®... -
Page 3: Original Instructions
Original instruction 1. Product Safety 1.1 General & Additional Safety Instruction WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. - Page 4 When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. j) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
-
Page 5: Information On The Landroid
® 1.2 Information on the Landroid WARNING - Robotic lawnmower can be dangerous if incorrectly used. Read through the Operator’s manual carefully and understand the content before using your robotic lawnmower. WARNING - Keep a safe distance from the machine when operating. WARNING –Remove the disabling device before working on or lifting the machine. -
Page 6: Component List
2. Component List Lawn Mowing Robot... - Page 7 LOW VOLTAGE CABLE CONTACT PINS CHARGING BASE CHARGING STRIPS CUTTING HEIGHT ADJUSTMENT KNOB REAR DRIVING WHEEL RAIN SENSOR MAIN SWITCH STOP BUTTON 10. CONTROL PANEL 11. FRONT WHEEL 12. CUTTING BLADE 13. BLADE TURNING DISC 14. BATTERY PACK 15. HANDLE 16.
-
Page 8: Control Panel
Control panel Error indication light Battery indication light Display error messages Display battery/machine status HOME ® Send Landroid to its charging base during operation and activates START charging Start mowing Confirm any setting/Enter Wi-Fi connection mode STOP ® To stop Landroid during operation Start... -
Page 9: Understanding Your Landroid
® Understanding Your Landroid ® We would like to congratulate you on your new purchase of the Landroid and entering into the care-free life of automatic ® mowing. In the following, we would like to help you better understand how your Landroid thinks. -
Page 10: Finding The Charging Base
® 5.2 How does my Landroid know what to mow? ® ® Your Landroid is capable of doing things on its own. The Landroid knows when it needs to go to its Charging Base (3) to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, draw back, and then turn ®... -
Page 11: Cut To Edge
5.3 Cut to edge Off-centered Blade Turning Disc (13) design, it provides a clean cut with narrowest distance to the boundary or wall, it helps to minimize the amount and frequency of manual trimming along the uncut area. Additionally, the design with an underneath protective cover keeps any object away from touching the turning blades in case of injury. -
Page 12: App
® Your Landroid will cut its best in dry weather. It does not like wet grass, which can build up on the Blade Turning Disc (13) and within the motor, and can also cause loose traction and slippage while working. ®... -
Page 13: Burying The Boundary Wire
7.2 Burying the Boundary Wire If you are planning to bury the Boundary Wire then it should be noted that when entering its Charging Base for the first time, ® your Landroid may find problems with the way you have laid the wire. It is recommended to first peg down the Boundary ®... -
Page 14: Maintenance
Blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should ® be replaced with the spare blades provided with your Landroid . Spare blades are also available at your nearest WORX retailer. A. Replace the Blades ®... -
Page 15: Keep It Clean
Remove the battery cover and remove the battery. Take the screws off the Blades with a screwdriver (See Fig. M) Firmly screw on the new Blades. Refit the battery and the battery cover. IMPORTANT: After screwing the Blade to the Blade Disc, make sure the Blade is able to spin freely. 9.2 Keep it clean ®... -
Page 16: Winter Hibernation
• Battery maintenance during storage ® Landroid can be charged manually without the boundary wire. To manually charge the battery without connecting the boundary wire to the Charging Base; 1. Connect the Charging Base to a suitable power supply. The Charging Base green light will turn on. ®... -
Page 17: Function Messages
® Gently turn your Landroid upside down. Remove the screws on the battery cover. Remove the battery cover. (See Fig. Q1) Lift out the old battery carefully. Press the latch (a) and release the connectors. (See Fig. Q2) NOTE: Do not pull by the cables. Hold the connectors and release the latch (a). Connect a new original battery by attaching the connectors together until it clicks into position. -
Page 18: Error Messages
If Landroid runs abnormally once in a while, please try to restart it. If the problem cannot be solved, please contact WORX Service Agent for help. • Do not wash the machine with a high pressure washer. This could cause damage to the battery or the machine. -
Page 19: Fault Symptoms
13. Fault symptoms ® If your Landroid does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your Dealer. Symptom Cause Action ® Landroid is searching for the Charging ® Base (except that you press the HOME This is normal, Landroid needs to recharge, ®... -
Page 20: Environmental Protection
The clock is not set to the correct Set the clock to the correct time. time. ® Landroid is not operating at the correct time. Programmed cutting times for Change the time settings for the mower to ® Landroid are not correct. start and stop.
