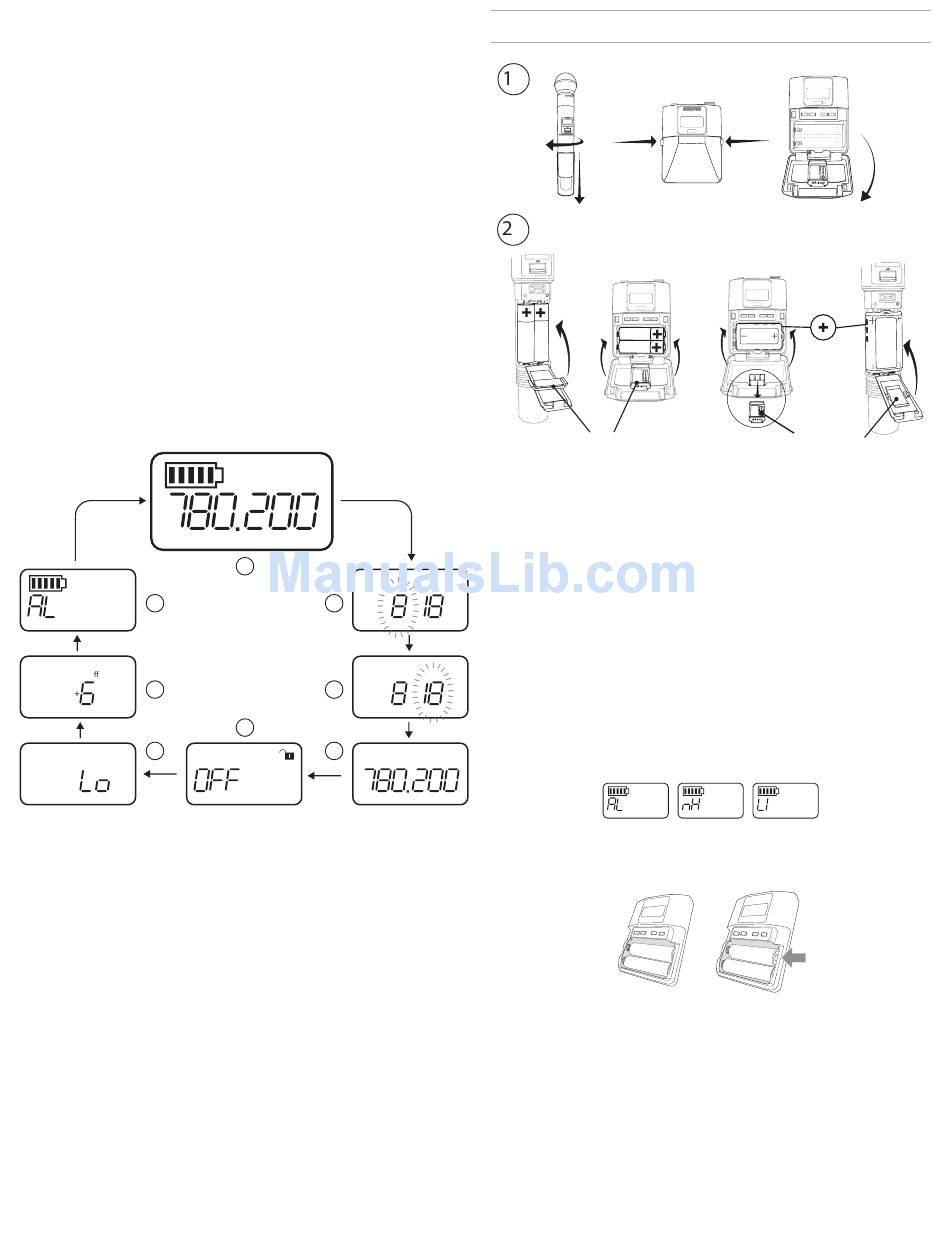

Transmitter Menu Options and Navigation
The transmitter features individual menu screens for setting up and adjusting the transmitter. To
access the menu options from the home screen, press the menu button. Each additional press of
the menu button advances to the next menu screen.
① Home Screen
Use the arrow keys to select one of the following home screen displays:
- Battery Icon/group and channel
- Battery Icon/frequency
- Battery Icon/Battery Runtime (SB900 installed)
② group
Use the arrow buttons to scroll through the groups.
③ channel
Use the arrow buttons to scroll through the channels.
④ frequency
Use the arrow buttons to adjust the frequency. Press and hold for faster scrolling.
⑤ lock
Select a lock option:
- On = controls locked
- OFF = controls unlocked
⑥ rf power
Select an rf power setting:
- Lo = 1 mW
- Hi = 10 mW
⑦ mic offset dB
Use to match audio levels between two transmitters used in a combo system. Range is 0 to
21 dB (3 dB increments). Adjustments occur in realtime.
⑧ battery type
Use to set the battery type to match the installed AA battery type to ensure accurate battery
metering. Menu is not displayed when Shure SB900 batteries are installed.
8
mic o set
dB
7
6
rf power
Tips for Editing Menu Parameters
• To access the menu options from the home screen, press the menu button. Each additional
press of the menu button advances to the next menu screen.
• A menu parameter will blink when editing is enabled
• To increase, decrease or change a parameter, use the arrow buttons
• To save a menu change, press enter
• To exit a menu without saving a change, press menu
8
MHz
1
2
group channel
3
group channel
5
4

Battery Installation

AA Batteries
on
AA Adapter
① Accessing the Battery Compartment
Press the side tabs on the bodypack or unscrew the cover on the handheld as shown to
access the battery compartment.
② Installing Batteries
- AA Batteries: Place batteries (note polarity markings) and AA Adaptor as
shown
- Shure SB900 Battery: Place battery as shown (note polarity markings),
remove AA Adaptor from bodypack transmitter, stow AA Adaptor in door for
handheld transmitter
Note: If using AA batteries, set the battery type using the transmitter menu.
Setting the AA Battery Type
To ensure accurate display of transmitter runtime, set the battery type in the transmitter menu to
match the installed AA battery type. If a Shure SB900 rechargeable battery is installed, selecting a
battery type is not necessary and the battery type menu will not be displayed.
1. Press the menu button to navigate to the battery icon.
2. Use the ▼▲ buttons to select the installed battery type:
- AL = Alkaline
- nH = Nickel Metal Hydride
- Li = Lithium Primary
3. Press enter to save.
MHz
AA Battery Installation
Fully insert the batteries as shown to ensure proper battery contact and to allow the door to latch
securely.
Shure SB900
AA Adapter
Correct Incorrect
on
