Manual Frequency Selection
Manual frequency selection can be used instead of groups and channels to set the transmitter
and receiver to a specific frequency. For example, an audio channel can be created by setting the
receiver and transmitter to same frequency.

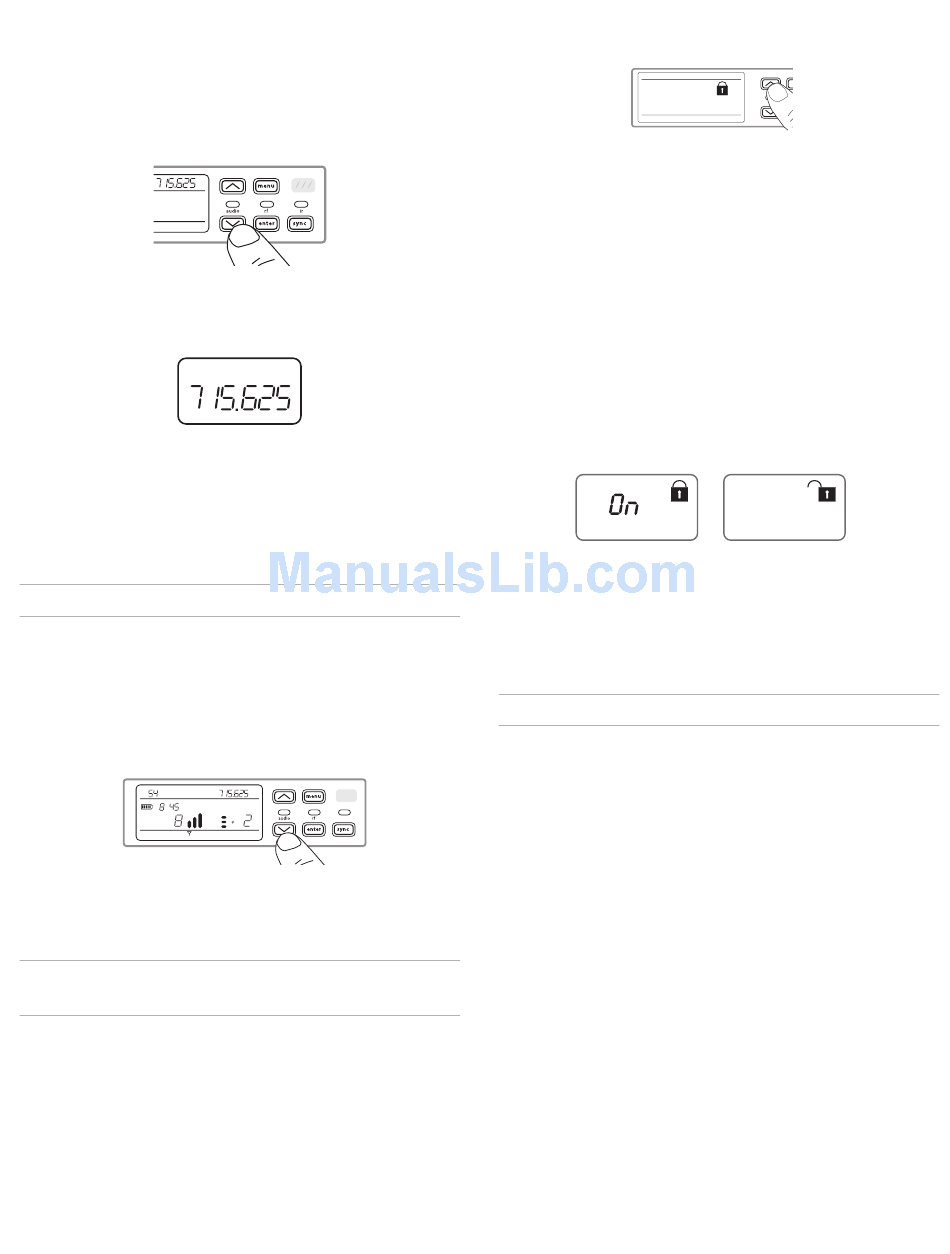

Setting the Receiver Frequency
1. Press menu to navigate to the frequency setting option.
2. Use the arrow buttons to adjust the frequency. Press and hold for faster scrolling.
3. Press enter to save.
MHz
Setting the Transmitter Frequency
1. Press menu to navigate to the frequency setting option.
2. Use the arrow buttons to adjust the frequency. Press and hold for faster scrolling.
3. Press enter to save.

Receiver Gain Adjustment

The gain control sets the overall signal level for the system. The default gain level is 12 dB and
the available gain range is -18 to 42 dB, in 1 dB increments.
Set the gain to a level where the audio LED appears green or yellow, with only the highest audio
peaks causing the LED to occasionally turn red and engage the limiter. Reduce the gain if there is
audible distortion of the audio.
From the receiver home screen, use the arrow buttons to increase or decrease the gain:
• A single button press adjusts the gain in 1 dB increments
• Press and hold the button for larger adjustments
Test the transmitter at performance levels when adjusting the gain. Monitor the audio meter and
the audio LED to prevent overloads.
TV
hr mn
channel rf
Control Lock Options for the Receiver and
Transmitter
Control lock options are available for both the receiver and the transmitter to protect against acci-
dental or unauthorized changes. Locks can be directly set from the component menu, or remotely
set from WWB6. To maintain protection, controls remain locked when the transmitter is turned off
and turned on.
Locking and Unlocking the Receiver Controls
The receiver has the following control lock options which can be used separately or in any
combination:
• gain: locks the arrow buttons to prevent changes to the audio gain settings
• menu: prevents access to menu items and IR sync (gain controls and power switch remain
active)
• power: disables power switch (gain and menu controls remain active)
To lock a receiver control:
1. Press the menu button to navigate to the lock settings.
10
MHz
MHz
dB
audio gain
2. Use the arrow buttons to add or remove the lock options shown next to the lock icon.
3. Press enter to save the lock settings.
To unlock a receiver:
Tip: To unlock the menu and clear all locks, press and hold the menu button while in the home
screen until the unlock icon appears. Press enter to confirm and save change.
1. To unlock gain or power settings, navigate to the lock settings by pressing the menu button.
2. Press the arrow buttons to de-select a lock option.
3. Press enter to confirm and save change.
Locking and Unlocking Transmitter Controls
The transmitter controls can be locked or unlocked by selecting On (locked) or OFF (unlocked)
from the transmitter lock menu.
If an attempt is made to access a locked control, the lock icon will flash, indicating that the trans-
mitter controls are locked.
To set a transmitter lock:
1. Press the menu button to navigate to the lock settings.
2. Use the arrow buttons to select on.
3. Press enter to save. The lock icon appears on the dis-
play to confirm that the control locks are enabled.
To unlock the transmitter:
1. Press and hold the menu button until OFF and the unlock icon appear on the display.
2. Press enter to save changes.

Network Scan

The Network Scan feature automates frequency assignment by using a single receiver to scan
and deploy frequencies to all networked receiver within the same frequency band.
Network Scanning and Frequency Deployment
1. Connect receivers to an active Ethernet network. All receivers must be on the same subnet.
2. Prior to performing a network scan, turn on all receivers and al-
low 60 seconds for all receivers to join the network.
3. Choose a group or custom group for deployment on the receiv-
er that will be used to initiate the network scan.
4. To start a network scan, press the menu button and navi-
gate to the network scan menu. Press enter.
5. When the scan is complete, the displays of receivers waiting for frequencies will flash.
6. Press enter to deploy the frequencies or press menu to cancel the deployment.
7. The front panel LEDs on each receiver will blink when a de-
ployed frequency has been assigned.
Note: Full frequency deployment may not occur if the number of receivers in the network exceeds
the number of available frequencies in the selected group. Try another group or rescan after turn-
ing off unused receivers.
