System Overview

QLX-D Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital
®
audio. Combining professional features with simplified setup and operation, QLX-D offers outstand-
ing wireless functionality for demanding live sound events and installations.
Shure digital wireless technology enables QLX-D to transmit clearly detailed audio with extended,
virtually flat frequency response. Designed to be highly RF spectrum efficient, QLX-D can operate
more than 60 compatible channels simultaneously in a single frequency band. Automatic chan-
nel scan and IR sync make finding and assigning an open frequency quick and easy. Ethernet
connection provides networked channel scanning across multiple receivers and Shure Wireless
Workbench control software compatibility for advanced frequency coordination. AES-256 encryp-
®
tion comes standard and can be easily enabled for secure wireless transmission.
QLX-D also adds Shure rechargeable power options to provide dramatic long-term cost savings
and extended transmitter battery life over alkaline batteries, and battery metering that reports
remaining runtime in hours and minutes. With clearly defined performance and innovation, QLX-D
delivers the very latest in digital wireless technology from Shure.
Features
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 64 MHz tuning bandwidth (region dependent)
• More than 60 available channels per frequency band (region dependent)
• Up to 17 compatible systems per 6MHz TV band; 22 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Automatic channel scan
• Ethernet networking for multiple receiver systems
• Network channel scanning configures open frequencies for networked receivers
• Compatible with Shure Wireless Workbench
• Remote control from a mobile device or tablet via ShurePlus™ Channels app
• AES-256 encryption for secure wireless transmission
• Elegant and easy-to-use interface with high-contrast LCD menu
• Compatible with external control systems such as AMX or Crestron
• Professional-grade all-metal construction
• Transmitters use 2 AA batteries or Shure SB900 rechargeable battery
Full Manual Online
This guide is a quick reference covering the essential features and functions of the QLX-D system.
A comprehensive version of the guide covering the following topics is available online by visiting
www.shure.com
• Encryption
• Network Scan
• Networking
• Firmware Updates
• Wireless Workbench 6
• Setting IP Addresses and Subnet Masks
• Connecting to External Controls Systems (AMX/Crestron)
• Transmitter RF Power
• Selecting Regional TV Bandwidth
• Combo Systems
• Custom Groups
• Optional Accessories
4
6 control software
®

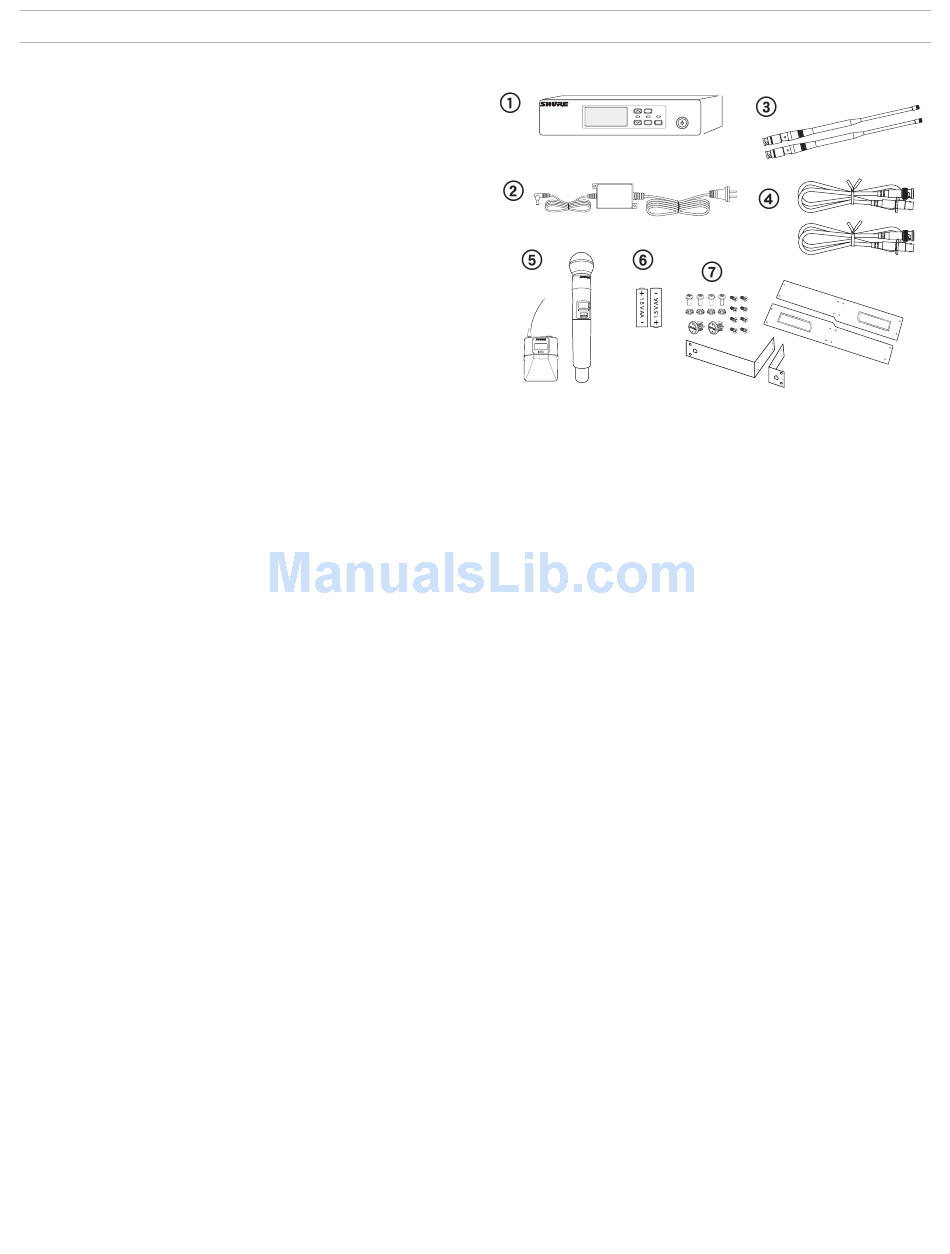

System Components

menu
enter sync
on
① QLXD4 Receiver
② PS23 Power Supply
③ 1/2 Wave Antennas (2)
④ 2 ft. BNC Cables with Bulkhead Adapters (2)
⑤ Choice of QLXD1 Bodypack Transmitter or QLXD2 Handheld Transmitter
⑥ AA Alkaline Batteries (not included in Argentina)
⑦ Rackmount Hardware
Model Variations
Model variations with additional components are available to meet specific performance situations.
QLXD2 Handheld Transmitter
Includes QLXD2 Handheld, available with any of the following microphone cartridges:
• SM58
• Beta 58A
• SM86
• Beta 87A
• SM87A
• Beta 87C
• KSM9
• KSM9HS (black)
Microphone Clip
Battery Contact Cover
Zipper Bag
QLXD1 Bodypack Guitar System
Includes QLXD1 bodypack transmitter
WA305 Premium instrument cable
Zipper Bag
QLXD1 Bodypack Headworn or Lavalier
Includes QLXD1 bodypack, available with any of the following microphone cartridges:
• Beta 98H/C
• WL93
• WL183
• WL184
• WL185
• MX150 (omni)
• MX150 (cardioid)
• MX153 (black or tan)
• SM35
Zipper Bag
Bodypack and Handheld Combo System
• QLXD1 bodypack transmitter with WL185 Microflex cardioid lavalier microphone
• QLXD2 handheld transmitter with Shure SM58 microphone cartridge
• Battery Contact Cover
• Zipper Bag (2)
