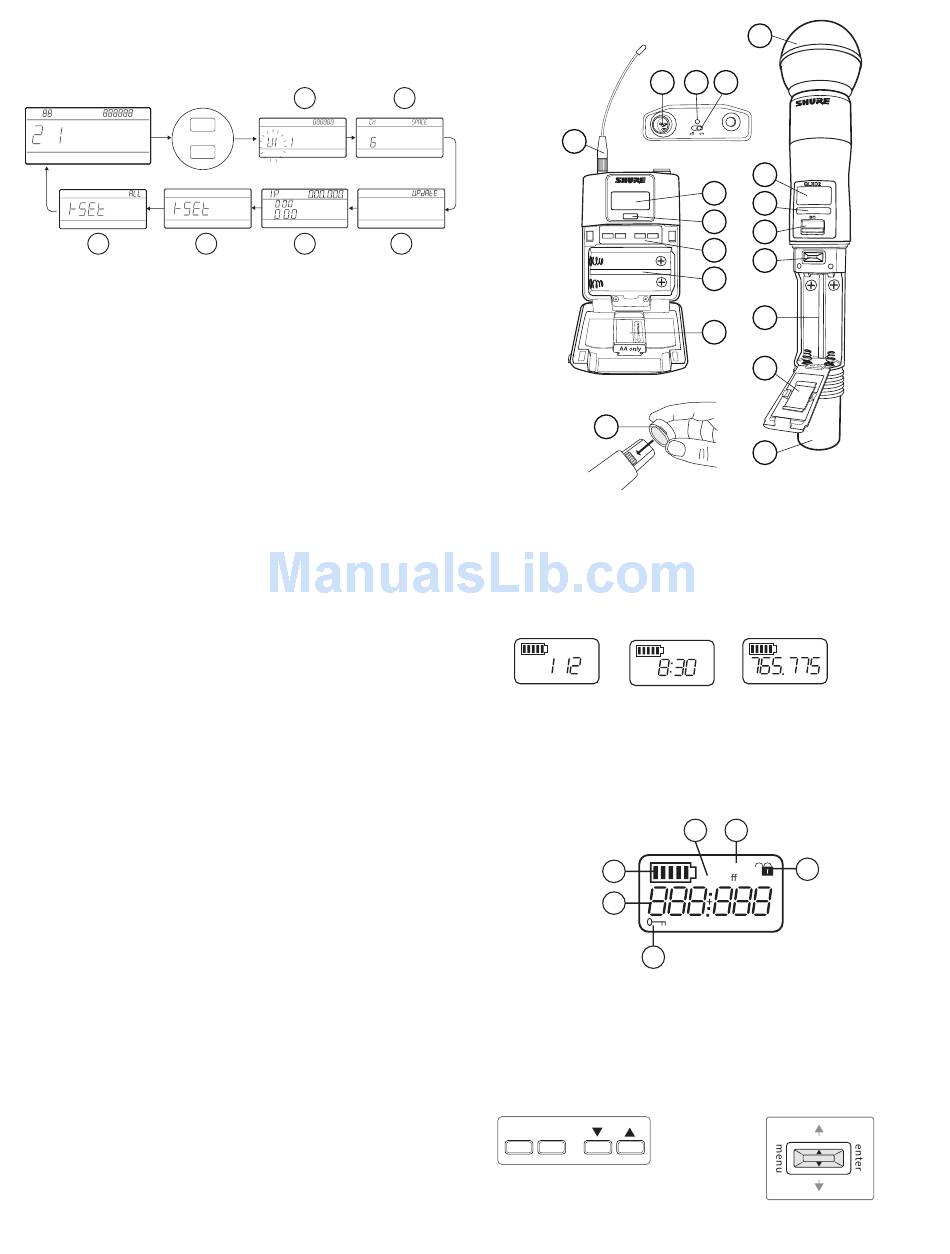

Advanced Menu
Starting from the main menu home screen, press menu while holding the enter button to access
the advanced menu. Each additional press of the menu button advances to the next menu screen
in the following order.
T V T V MH z MH z
enter
+
menu
group channel r f audio ga in
net wor k
6
① Custom Groups
Use to add channels and frequencies to Custom Groups
② TV Channel Spacing
Selects the regional bandwidth for TV channel display
③ Firmware Update
Use to update the transmitter firmware
④ IP Settings
Use to select and edit IP settings and subnet masks
⑤ Network Reset
Returns network settings and IP address to default setting
⑥ Factory Reset
Restores factory settings
For application and configuration details, see the related guide topic for each advanced feature.
Tips for Editing Menu Parameters
• To increase, decrease or change a parameter, use the arrow buttons
• A menu setting will blink when editing is enabled
• To save a menu change, press enter
• To exit a menu without saving a change, press menu
• To access the advanced menu, press menu while holding the enter button from the home
screen
• To return to the home screen from any menu without saving changes, press and hold the menu
button.
Transmitters
① Power LED
- Green = unit is powered on
- Red = low battery
② On/Off Switch
Powers the transmitter on or off.
③ Display:
View menu screens and settings. Press any control button to activate the backlight.
④ IR window
Align with the receiver IR window during an IR sync for automated transmitter programming.
⑤ Menu Navigation Buttons
menu = Use to navigate between menu screens.
▼▲ = Use to select menu screens, edit menu parameters, or choose a home screen display
option.
enter = Press to confirm and save parameter changes.
Tip: Press the menu button to exit without saving parameter changes.
⑥ Battery Compartment
Requires 2 AA batteries or a Shure SB900 rechargeable battery.
⑦ AA Battery Adapter
Secures batteries when powering transmitter with AA batteries instead of Shure SB900
battery.
⑧ Bodypack Antenna
For RF signal transmission.
⑨ Handheld Integrated Antenna
For RF signal transmission.
⑩ Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
⑪ TA4M Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
⑫ Battery Contact Cover
Align the cover as shown to prevent reflections from the battery contacts during broadcasts
or performances.
1
M H z T V
gro up ch an n e l
5 4
2
M H z
8
3
Transmitter Display
① Battery Indicator
Bars displayed indicate remaining battery life.
② Home Screen Display: Group and Channel/Frequency/SB900 Battery
Runtime
Use the arrow keys to select one of the following home screen displays:
Group and
Channel
group channel
③ Encryption Status
Icon displayed when encryption is enabled.
④ Lock
Displayed when transmitter controls are locked.
⑤ RF Power
RF power setting (Lo or Hi).
⑥ Mic Offset
Displays mic offset level in 3 dB increments.
Transmitter controls
• To increase, decrease or change a parameter, use the ▼▲ buttons
• To save a menu change, press enter
• To exit a menu without saving a change, press the menu button
menu enter
Bodypack
10
11 1 2
3
QLXD1 3
4
4
2
5
5
6
6
7
7
12
9
SB900 battery Frequency
runtime
6 5
1
rf power
mic o set
dB
2
group channel MHz
3
QLXD2
on
MHz
4
Handheld
