IMPORTANT INFORMATION
OPERATOR MANUAL
Part Number 121034

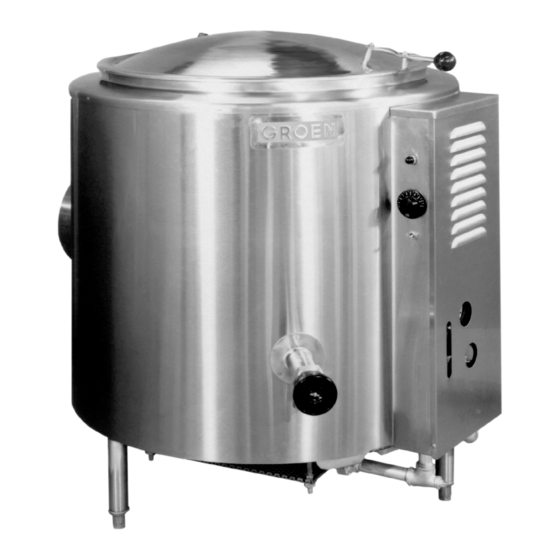

MODEL: HH/4 &HH/4/E
Steam Jacketed Kettles
Self-Contained
Natural Gas heated
Floor mounted
Stationary
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND
FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
INSTRUCTIONS TO BE FOLLOWED IN THE EVEN USER SMELLS GAS. THIS INFORMA-
TION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS SUPPLIER. AS A MIN-
IMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY AND YOUR AUTHORIZED
SERVICE AGENT. EVACUATE ALL PERSONNEL FROM THE AREA.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OP-
ERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING
OR SERVICING THIS EQUIPMENT.
j
KEEP FOR OPERATOR
WARNING
POST IN A PROMINENT LOCATION
WARNING
j
IMPORTANT INFORMATION
OM-HH
DOMESTIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HH/4 and is the answer not in the manual?

Questions and answers

Related Manuals for Groen HH/4

Summary of Contents for Groen HH/4

  • Page 1 IMPORTANT INFORMATION KEEP FOR OPERATOR IMPORTANT INFORMATION OPERATOR MANUAL OM-HH Part Number 121034 DOMESTIC MODEL: HH/4 &HH/4/E Steam Jacketed Kettles Self-Contained Natural Gas heated Floor mounted Stationary THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.

  • Page 2: Important Operator Warnings

    POWER SUPPLY AND CLOSE THE MAIN GAS COCK. ALLOW FIVE MINUTES FOR UNBURNED GAS TO VENT. CAUTION USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTOR CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES.

  • Page 3: Table Of Contents

    OM-HH Table of Contents IMPORTANT OPERATOR WARNINGS ........2 EQUIPMENT DESCRIPTION .

  • Page 4: Equipment Description

    Low-water cutoff: Turns off the burner if water water in the jacket to produce steam under level in the jacket gets too low for safe pressure. To ignite the flames, Model HH/4 has a operation. continuously burning pilot flame, called the standing pilot, and Model HH/4E has electronic •...
  • Page 5 OM-HH KETTLE CHARACTERISTICS Model HH/4 HH/4/E Ignition Pilot Spark Capacity, gallons (liters) 40 (150) 40 (150) Rim Height, inches (mm) 38 (960) 38 (960) Depth, inches (mm) 22 (560) 22 (560) Diameter, inches (mm) 26 (660) 26 (660) Overall front-to back, inches (mm) 40½...

  • Page 6: Inspection & Unpacking

    OM-HH Inspection & Unpacking The unit will arrive in a heavy shipping carton and Space for these entries is provided at the top of will be banded to a skid. Immediately upon the Service Log at the back of this manual. receipt, inspect the carton carefully for exterior Keep the manual available for operators to use.

  • Page 7: Installation

    Do not change the diverter in any way. Any mechanical, electrical, or gas type change must be approved by the Groen Food Service Engineering Department. WARNING ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED.

  • Page 8: Initial Start-Up

    ½ PSI (3.48 kPa). If the kettle functions as described, it is ready for use. If it does not, contact your area Groen 15. Check the following points to confirm that Authorized Service Representative.

  • Page 9: Operation

    If you are using Model HH/4E with cold, check the electronic spark ignition, or if you are pressure gauge. If using a Model HH/4 unit with the pilot the gauge does not burner already lit, all you have to do to start heating the kettle is:...
  • Page 10 OM-HH (2) Turn the thermostat dial to the desired setting. h. If the HH/4 pilot is not lit: (1) Locate the red reset button on the automatic gas control valve inside the control housing. (See photo, Page 5). WARNING OPEN THE KETTLE LID CAREFULLY TO (2) Hold a flame to the pilot burner and AVOID STEAM.

  • Page 11: Sequence Of Operation

    C. All Units user understand how the equipment works. As main burner heat raises steam temperature to A. Model HH/4 with Standing Pilot Ignition the set temperature, the thermostat switch opens. This cuts power to the main burner valve, which Pressing the reset button overrides the automatic closes and turns off the burner.

  • Page 12: Maintenance

    OM-HH Maintenance NOTICE: Contact Groen or an authorized Groen representative when repairs are required. or the valve leaks, stop using the kettle and 1. Periodic Maintenance contact a qualified Groen service representative. A Maintenance & Service Log is provided at the back of this manual with the warranty information.
  • Page 13 Obtain water treatment compound and a pH test kit from your Groen Authotized Service Parts Distributor. WARNING TO AVOID INJURY, READ AND FOLLOW...

  • Page 14: Cleaning

    OM-HH Cleaning 1. Suggested Tools: a. Cleaner, such as Klenzade HC-10 or HC- 32 from ECOLAB, Inc. b. Kettle brushes in good condition (and a bottle brush, for the draw-off). c. Sanitizer such as Klenzade XY-12. d. Film remover such as Klenzade LC-30. 2.

  • Page 15: Troubleshooting

    Troubleshooting Your Groen kettle is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel and in this manual. If an item on the list is followed by , the work should be done by a qualified service representative.
  • Page 16 Thermostat. Thermostat should click when the dial is Rep Only rotated above and below a setting. e. Safety valve. If valve pops below 29 PSI, replace. B. Model HH/4 with Standing Pilot Ignition (Refer to the electrical schematic) Pilot burner will not light User a.
  • Page 17 OM-HH System does not produce a spark Auth a. Thermostat: close the contacts if they are open Service b. AC voltage between terminals “2" and “GR.” If it is not Rep Only 24 Volt, replace the transformer c. That the jumper is securely connected between terminals “5"...

  • Page 18: Parts Lists

    OM-HH/4 Parts List To order parts, contact your Groen Certified Service Agency. Supply the model designation, part description, part number, quantity, and, where applicable, voltage and phase.

  • Page 19: Parts List

    36 Removable Strainer ¼” holes 009007 69 Hinge Cover RH (prior to 5/10/84) 002292 for optional 1½” Draw-Off 70 Not Used Removable Strainer ¼” holes 009044 71 Union ¾” IPS 005516 for standard 2" Draw-Off NOTE: HH/4 and HH/4/E use natural gas only.
  • Page 20 OM-HH Wiring Diagrams HH/4 Standing Pilot Ignition HH/4E Spark Ignition, Type QHL-1...

  • Page 21: Schematics

    OM-HH Electrical Schematics HH/4E Spark Ignition, Type CCG HH/4E Spark Ignition, Type G96...

  • Page 22: References

    OM-HH Service Log Model No. _______________________________ Purchased From _________________________ Serial No. _______________________________ Location ________________________________ Date Purchased __________________________ Date Installed ___________________________ Purchase Order No. ______________________ For Service Call __________________________ Date Service Performed Performed By...

  • Page 23: Maintenance Log

    Groen Foodservice Equipment ("Groen Equipment") has been skillfully manufactured, carefully inspected and packaged to meet rigid standards of excellence. Groen warrants its Equipment to be free from defects in material and workmanship for (12) twelve months with the following conditions and subject to the following limitations.
  • Page 24 1055 Mendell Davis Drive OM-HH (Revised 10/98) Jackson, Mississippi 39212 Part Number 121034 Telephone 601 373-3903 FAX 601 373-9587...
