Groen TDH Series Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION

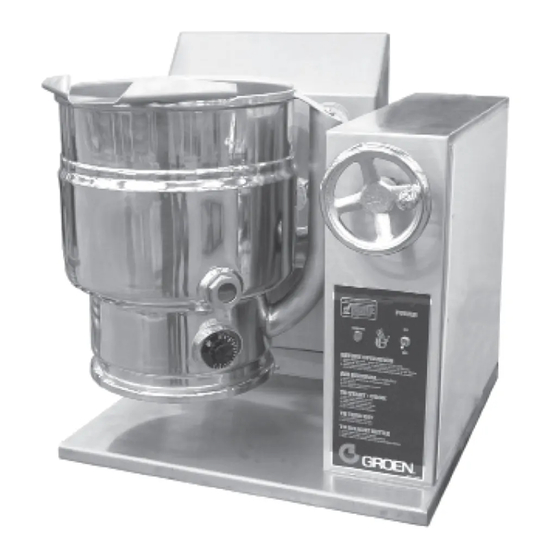

TDH and TDHC models are stainless steel, steam-jacketed, table top mounted
kettles with a self-contained, gas heated steam source. The TDHC has a crank tilt
hand wheel, and the TDH has a handle that allows the operator to manually tilt the
kettle. The kettle body is welded into one solid piece and furnished with a rein-
forced rim and welded-in "butterfly" shaped pouring lip. The interior of the kettle
is polished to a 180 emery grit finish, and the exterior is given a bright high buff
finish. The unit is A.S.M.E. shop inspected and registered with the National Board
for a design pressure of 50 PSIG.
The self-contained steam source is heated by propane or natural gas and is
equipped with electronic ignition. Charged at the factory with chemically pure wa-
ter containing rust inhibitors, the steam source provides kettle temperatures of
150ºF to approximately 295ºF.
Controls for the TDHC unit include a crank tilt handwheel, thermostat, pressure
gauge, pressure relief valve, low water cut-off, On/Off switch, indicator lamp, gas
regulator valve, and water level sight glass. Controls for the TDH are the same as
the above, with the exception of the crank tilt hand wheel.
This manual provides information for:
STEAM JACKETED KETTLE
MODELS TDH(C)-20/24/40/48
(C,A,C2T™) DOMESTIC
REFERENCES
CSA INTERNATIONAL
8501 East Pleasant Valley Road
Cleveland, Ohio 44131
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
The gas supply shuts off automatically when the kettle is tilted.
The unit must be specified for use with natural gas or propane. For other gas types,
consult factory. Service connections are required for gas and 115V electricity.
Options available include:
1. One-piece, Lift-off cover
2. Holder for Lift-off Cover
3. Basket insert
4. Rice Strainer
5. Stand that supports the unit and holds a pan in position for filling
6. Water fill swing faucet
7. 316 stainless steel interior (must be indicated on initial order)
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands
recommends referencing our product line websites, unifiedbrands.net, for the most updated product information and
specifications. © 2019 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
PART NUMBER 174844, REV. F (03/19)
