Page 1: User Manual

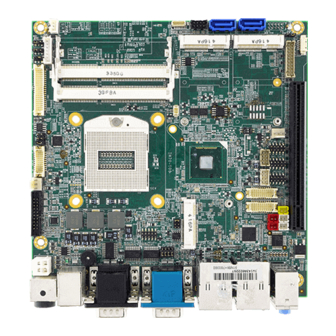

IH70 Motherboard Mini-ITX SBC with w/ Intel® 4th Generation Core i3/i5/i7 Processor, VGA, LVDS, Dual Giga Ethernet, USB 3.0 and Mini-PCIe Interface V110 User Manual Version 1.1 Manual Number: 9171111I101K... -
Page 2: Preface
IH70 Motherboard User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. - Page 3 IH70 Motherboard User Manual Packing List Before using this Motherboard, please make sure that all the items listed below are present in your package: IH70 SBC Motherboard User Manual & Driver CD Optional Accessories: Power Cord If any of these items are missing or damaged, contact your distributor or sales representative immediately.
- Page 4 IH70 Motherboard User Manual Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronic personnel should open the PC chassis.
- Page 5 IH70 Motherboard User Manual Safety and Warranty Please read these safety instructions carefully. Please keep this user- manual for later reference. Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth.
-
Page 6: Revision History
IH70 Motherboard User Manual Revision History Manual Board Released Note Author Version Version Date V100 2014.10.7 Initial Draft Patrick Hsien V110 2015.12.30 Revised: BIOS Configuration, Austin, Driver Installation, edited by Anna Pin Assignment and Jumper Kiseleva Setting... -
Page 7: Table Of Contents
IH70 Motherboard User Manual CONTENTS PREFACE ………………………………………………………………………………………..II CHAPTER 1 GENERAL INFORMATION ........... 2 1.1 I ..................2 NTRODUCTION 1.2 F ....................2 EATURES 1.3 M ..............3 OTHERBOARD PECIFICATIONS CHAPTER 2 HARDWARE INSTALLATION ..........7 2.1 M (SO-DIMM) I ........... 7... - Page 8 IH70 Motherboard User Manual 3.3 U ........68 SING ECOVERY IZARD TO ESTORE OMPUTER CHAPTER 4 DRIVER INSTALLATION ............. 71 4.1 I ............71 NTEL HIPSET RIVER NSTALLATION 4.2 G ..............73 RAPHICS RIVER NSTALLATION 4.3 A ..............76 UDIO...
-
Page 9: Chapter 1 General Information
General Information This chapter includes the IH70 SBC Motherboard background information. Sections include: Introduction Features Motherboard Specifications... - Page 10 The processors are designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH) to be used with the Mobile chipset. IH70 is equipped with rich peripheral connectors: three Mini-PCIe I/O ports, two Serial ATA III (6Gb/s)connectors, six serial ports (three connectors; three pin headers), six super-speed USB 3.0 connectors (four connectors;...
-
Page 11: Motherboard Specifications
IH70 Motherboard User Manual Motherboard Specifications CPU Type Intel® 4th Generation Core i3/i5/i7 Processor Chipset Intel® QM87 BIOS AMI System BIOS Graphic Intel® HD Graphics 4600 support DX11, OGL4.0 LCD interface Dual-channel 24 bit LVDS Up to 1440 x 900 @ 60Hz... - Page 12 IH70 Motherboard User Manual Function block (V100)
-
Page 13: Otherboard
IH70 Motherboard User Manual Board dimensions (V100) -
Page 14: Chapter 2 Hardware Installation
IH70 Motherboard User Manual Hardware Installation This chapter provides information on how to use jumpers and connectors on the IH 70 SBC Motherboard. Be cautious while working with these modules. Please carefully read the content of this chapter in order to avoid any damages. -
Page 15: So-Dimm) I Nstallation
IH70 Motherboard User Manual Chapter 2 Hardware Installation 2.1 Memory Module (SO-DIMM) Installation The IH70 SBC Motherboard has two 204-pin SODIMM slot. The socket supports up to 8GB DDR3L 1333/1600 SDRAM. When installing the –memory unit, please follow the steps below: Steps 1 Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. -
Page 16: I/O Equipment Installation
IH70 Motherboard User Manual 2.2 I/O Equipment Installation 2.2.1 12V DC-IN The IH 70 SBC Motherboard allows plugging 12V DC-IN jack on the board without another power module converter under power consumption by Intel® 4th Generation Core i7/i5/i3 Processor and QM87 chipset. -
Page 17: Audio Function
IH70 Motherboard User Manual 2.2.6 Audio Function The Audio 7.1 channel capabilities are provided by a Realtek ALC886 chipset supporting digital audio outputs. The audio interface includes three jacks: line-in, line-out and mic in. -
Page 18: Jumpers And Connectors
IH70 Motherboard User Manual 2.3 Jumpers and Connectors 2.3.1 Component Side... -
Page 19: Solder Side
IH70 Motherboard User Manual 2.3.2 Solder Side... -
Page 20: I/O Side
IH70 Motherboard User Manual 2.3.3 I/O Side... -
Page 21: Jumper Settings
IH70 Motherboard User Manual 2.4 Jumper Settings This section explains how to set jumpers for correct configuration of the motherboard. A pair of needle nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your... -
Page 22: Setting Jumpers
IH70 Motherboard User Manual 2.4.2 Setting Jumpers JP1/JP2: COM Serial Port (RS232/422/485) Select Please refer to JP1/JP2 settings below. RS232 RS422 RS485 10-11 11-12 11-12 For example: At the picture below you can see RS-232, RS-422, RS-485 (J8/J9) jumper setting. To select RS-232 set Jumper 8 Pin 1-2 to the SHORT position, and Jumper 9 Pin1-2, 4-5, 7-8, 10-11 to the SHORT position. - Page 23 IH70 Motherboard User Manual JP10: Panel Power Select Pin № Name 1-2* +3.3V +12V *Default...
- Page 24 IH70 Motherboard User Manual JP13: VR Control/Chipset Control Setting Function WM to DC mode by software 2-3* VRD Control Mode *Default JP14: PWM/DC Select Setting Function 1-2* + 3.3V + 5.0V *Default...
-
Page 25: Connectors And Pin Assignment
IH70 Motherboard User Manual 2.5 Connectors and Pin Assignment 2.5.1 Front Side Setting Description The table below shows each of front side connectors and its functions. Label Function Note ATX PWR 2x2 wafer, pitch 4.2mm 12V output 1x2 wafer, pitch 2.0mm 5V output 1x2 wafer, pitch 2.0mm... - Page 26 IH70 Motherboard User Manual CN5: ATX PWR Pin № Name Pin № Name CN6:12V Output Pin № Name +12V CN8: 5V output Pin № Name...
- Page 27 IH70 Motherboard User Manual CN9: 5V Output Pin № Name CN10: Wifi Pin № Name Pin № Name PCIE_WAKE# 3.3V BT_EN +1.5V CLK_SLOT2_OE# CLK_PCIE_SLOT2_N CLK_PCIE_SLOT2_P 3G_EN PCIE_RESET PCIE2_RXN2 +3.3V PCIE2_RXP2 +1.5V SMB_CLK PCIE2_TXN2 SMB_DATA PCIE2_TXP2...
- Page 28 IH70 Motherboard User Manual USB_D- USB_D+ 3.3V 3.3V +1.5 V 3.3V 3.3V CN13: HDMI Pin № Name Pin № Name TMDS_DATA2+ TMDS_DATA2- TMDS_DATA1+ TMDS_DATA1- TMDS_DATA0+ TMDS_DATA0- TMDS_CLOCK+ TMDS_CLOCK- DDC_CLOCK DDC_DATA Hot Plug Detect CN15: PCIEX16 *PCI Express x16 standard...
- Page 29 IH70 Motherboard User Manual CN16: Backlight Pin № Name Pin № Name Backlight Power Backlight Power Backlight Power Brightness Adjust Backlight Enable Note: Please refer to settings to select POWER RATING CN18: WWAN Pin № Name Pin № Name PCIE_WAKE# +3.3V...
- Page 30 IH70 Motherboard User Manual SMB_CLK PCIE_TXM SMB_DATA PCIE_TXP USB_D- USB_D+ +3.3V +3.3V +1.5V +3.3V +3.3V CN19: mSATA Pin № Name Pin № Name +3.3V +1.5V SATA_RXP +3.3V SATA_RXN +1.5V SMB_Clock...
- Page 31 IH70 Motherboard User Manual SATA_TXN SMB_Data SATA_TXP +3.3V +3.3V +1.5V SSD_LED# +3.3V CN20: SATA Power Pin № Name Pin № Name +12V +12V...
- Page 32 IH70 Motherboard User Manual CN21: DVI Pin № Name Pin № Name TMDS2- TMDS2+ DVIC_LVDS_DET TMDS1- DVIC_BKLTEN TMDS1+ DVIC_VDDEN TMDS0- DVIC_HPD2 TMDS0+ DVI VPNL CLK- DVI VPNL CLK+ DVI_EXT_5V DDC_CLK DVI_EXT_5V DDC_DATA Note: 1) Refer to JP10 Settings to select POWER RATING for LCDVDD...
- Page 33 IH70 Motherboard User Manual CN26: eDP Output Connector Pin № Name Pin № Name TXP0_C VDD_eDP TXN0_C VDD_eDP +VCC_EDP_BKLT TXP1_C +VCC_EDP_BKLT TXN1_C +VCC_EDP_BKLT EDP_HPD AUXP AUXN BKLT_EN BKLT_CTRL CN27: Internal USB2.0 Pin № Name Pin № Name USB_D- USB_D- USB_D+...
- Page 34 IH70 Motherboard User Manual CON1: LVDS Pin № Signal Name Pin № Signal Name LCDVDD LVDS0_TX0_N LCDVDD LVDS0_TX0_P LCDVDD LVDS0_TX1_N LVDS0_TX1_P LVDS0_TX2_N LVDS0_TX2_P LVDS0_CLK_N LVDS0_CLK_P LVDS0_TX3_N LVDS0_TX3_P LVDS1_TX0_N LVDS1_TX0_P LVDS1_TX1_N LVDS1_TX1_P LVDS1_TX2_N LVDS1_TX2_P LVDS1_CLK_N LVDS1_CLK_P LVDS1_TX3_N LVDS1_TX3_P Note: Refer to...
- Page 35 IH70 Motherboard User Manual DIMM1: DDR3L DIMM2: DDR3L...
- Page 36 IH70 Motherboard User Manual FAN1: SYS_FAN1 Pin № Name Pin № Name +12V SENSE FAN2: CPU _FAN Pin № Name Pin № Name +12V SENSE...
- Page 37 IH70 Motherboard User Manual J1: R-Speaker out Pin № Name ROUT- ROUT+ J2: L-Speaker out Pin № Name LOUT- LOUT+ J7: VRD Debug Pin № Name Pin № Name +3.3V DATA CLOCK RESET...
- Page 38 IH70 Motherboard User Manual LPT1: Parallel Port Pin № Name Pin № Name LPT_STB# LPT_PD0 LPT_PD2 LPT_PD1 LPT_PD3 LPT_PD4 LPT_PD5 LPT_PD6 LPT_PD7 ACK# Busy SLCT LPT_AFD# LPT_INIT# ERR# 18-25 LPT_SLIN# Panel1: OSD Membrane Control Pin № Name Pin № Name +3.3V...
- Page 39 IH70 Motherboard User Manual SATA1: SATA Pin № Name Pin № Name SATA_TXP SATA_TXN SATA_RXN SATA_RXP SATA2: SATA Pin № Name Pin № Name SATA_TXP SATA_TXN SATA_RXN SATA_RXP USB1: Internal USB2.0...
-
Page 40: I/O Side
IH70 Motherboard User Manual Pin № Name Pin № Name USB_D- USB_D- USB_D+ USB_D+ USB2: Internal USB2.0 Pin № Name Pin № Name USB_D- USB_D- USB_D+ USB_D+ 2.5.2 I/O Side The table below shows each of I/O side connectors and its functions. - Page 41 IH70 Motherboard User Manual Audio: Line In/Line Out/Mic COM1: D-Sub 9 Pin № RS232 RS422 RS485 TxD- TxD+ RxD+ RxD- COM2, COM4: Serial port (232) Pin № Name Pin № Name...
- Page 42 IH70 Motherboard User Manual 12V DC Input: 12V DC INPUT Pin № Name Pin № Name +12V *Note: Pin 3 is not visible for use LAN1, LAN2: Gigabit Ethernet Pin № Name Pin № Name TX1+ TX1- TX2+ TX2- TX3+...
- Page 43 IH70 Motherboard User Manual +DATA Reserved +CLK Reserved...
- Page 44 IH70 Motherboard User Manual USB: USB 3.0 Pin № Name Pin № Name USB_D- USB_D+ STDA_SSRX- STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ VGA: Video Graphics Array Pin № Name Pin № Name GREEN BLUE ID2/RES RED_RTN GREEN_RTN BLUE_RTN KEY/PWR ID0/RES ID1/SDA HSync...
-
Page 45: Chapter 3 Ami Bios Setup
IH70 Motherboard User Manual AMI BIOS Setup This chapter contains BIOS Configuration and OS Recovery information. Sections include: 3.1 When and How to Use BIOS Setup 3.2 BIOS Functions 3.3 Using Recovery Wizard to Restore Computer... - Page 46 IH70 Motherboard User Manual Chapter 3 AMI BIOS SETUP 3.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press Del key when the prompt appears on the screen during start up. The prompt screen shows only few seconds so need press Del key quickly.
-
Page 47: Bios Functions
IH70 Motherboard User Manual Cursor ← Moves to the previous item Cursor → Goes to the next item You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard to your tablet PC. NOTE 3.2 BIOS Functions... - Page 48 IH70 Motherboard User Manual BIOS Setting Description Setting Option Effect System Displays the system Select the Set the system Language language. system language. [English] is used by language The language of this default. device is English. System Date This is current date Date changes.
-
Page 49: Advanced Menu
IH70 Motherboard User Manual 3.2.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer. - Page 50 IH70 Motherboard User Manual Intel ®Rapid Start Configures Intel ®Rapid Start Enter Opens submenu Technology Technology parameters PCH-FW Configures PCH-FW Enter Opens submenu Configuration parameters AMT Configuration Configures AMT parameters Enter Opens submenu USB Configuration Configures USB parameters Enter Opens submenu...
- Page 51 IH70 Motherboard User Manual ACPI Settings Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates. The power supply can be adjusted for power requirements. You can use the screen to select options of ACPI configuration. A description of the selected items will appear on the right side of the screen.
- Page 52 IH70 Motherboard User Manual RTC Wake Settings BIOS Setting Description Setting Effect Option Enable or disable this function. When Wake system with System wake on Enabled/ enabled, the system Fixed Time alarm event Disabled will wake on the hr: min: sec specified.
- Page 53 IH70 Motherboard User Manual Configure wake When enabled, the Wake system from from hibernation Enabled/ system will wake on mode (S4) system Disabled hibernation mode. setting Trusted Computing BIOS Setting Description Setting Option Effect Enable or disable Security Device Enable or disable this...
- Page 54 IH70 Motherboard User Manual CPU Configuration Press <Enter> to view current CPU configuration and make settings for the following sub-items. BIOS Setting Description Setting Option Effect Reduces a computer EDB is a hardware-based system's, or a security component used server’s,...
- Page 55 IH70 Motherboard User Manual operating systems to run at the same time on the same machine. Auto Auto mode Allows processor cores to run at the Standard frequency This feature selects the recommended by Boot performance state the the manufacturer.
- Page 56 IH70 Motherboard User Manual parameters Digital Thermal Sensors Enable or disable CPU DTS Enabled/ Disabled (DTS) parameters. this function SATA Configuration BIOS Setting Description Setting Option Effect Allows users to enable Enabled/ Enable or disable SATA Controller(s) or disable the SATA...
- Page 57 IH70 Motherboard User Manual INTEL® Rapid Star Technology Allows users to enable or disable Intel rapid start technology. BIOS Setting Description Setting Option Effect The system Entry on S3 RTC automatically wakes up Enable or disable Enabled/ Disabled Wake and set to Rapid Start this function Technology S3 mode.
- Page 58 IH70 Motherboard User Manual Allows you to enable or Hybrid Hard Disk Enable or disable disable the hybrid hard Enabled/ Disabled Support this function disk support Allows you to enable or Rapid Display Enable or disable disable the Rapid Display...
- Page 59 IH70 Motherboard User Manual Intel AMT Configuration BIOS Setting Description Setting Option Effect Set parameters of Enabled/ Intel ®Active Disabled. Enable or disable Intel AMT management this function Technology BIOS Default: Enabled Extension. Use this item to BIOS Hotkey BIOS Hotkey Pressed...
- Page 60 IH70 Motherboard User Manual Use this item to un- Enabled/ Enable or disable Un-configure ME configure ME Disabled this function Set up AMT Wait Select wait time AMT Wait Timer Timer number Use this item to Enabled/ Enable or disable...
- Page 61 IH70 Motherboard User Manual Support port. support if no USB devices are connected Disable Will keep USB devices available only for EFI applications. Enable Enable all the USB devices XHCI Hand‐off This is a workaround for OSs Disable Disables this function without XHCI hand‐...
- Page 62 IH70 Motherboard User Manual option can be used to force HDD formatted drive to boot as FDD. F81866 H/W Monitor BIOS Setting Description Setting Option Effect Set parameters of Enabled/ Enable or disable Smart Fan Function smart fan function Disabled...
- Page 63 IH70 Motherboard User Manual Super IO Configuration BIOS Setting Description Setting Option Effect Set Parameters of Serial Ports. User can Enabled/ Serial Port Enable or Enable/Disable the serial Disabled 1,2,3 ,4,5,6 disable Serial port and select optimal Configuration Port (COM)
-
Page 64: Chipset Menu
IH70 Motherboard User Manual A description of the selected item appears on Change the You can use the screen to the right side of Super IO GPI0 value of the select options for Super IO the screen. For Setting option Configuration. - Page 65 IH70 Motherboard User Manual PCI –IO Configuration BIOS Setting Description Setting Effect Option PCI Express PCI Express Parameters Enter Opens submenu Configuration USB parameters Enter Opens submenu Configuration...
- Page 66 IH70 Motherboard User Manual PCI Express Configuration BIOS Setting Description Setting Option Effect The control of Active State Power DMI Link ASPM Enabled/ Enable or disable this Management on both NB Control Disabled function side and SB side of the...
- Page 67 IH70 Motherboard User Manual USB Configuration BIOS Setting Description Setting Option Effect Allows user to enable or Enabled/ Enable or disable this Precondition disable USB Precondition Disabled function Smart Auto, Allows user to enable or XHCI Mode Enabled/ Enabled/ Disabled...
- Page 68 IH70 Motherboard User Manual System Agent (SA) Configuration VT-d Allows users to enable or disable Intel Virtualization Technology for Directed I/O.
- Page 69 IH70 Motherboard User Manual Graphics Configuration BIOS Setting Description Setting Option Effect Graphics Turbo Allows users to select which Set Turbo IMON IMON Current Graphics Turbo IMON Current parameter Current. Primary Display Allows users to select [IGFX], [Auto] Select Primary...
- Page 70 IH70 Motherboard User Manual Panel Power Allows users to enable or Enabled/ Enable/Disable Enable disable Panel Power. Disabled this function NB PCIe Configuration...
-
Page 71: Boot Menu
IH70 Motherboard User Manual 3.2.4 Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS use to look for a boot device from which to load the operating system. - Page 72 IH70 Motherboard User Manual (default = Black Enabled Enables this background) is displayed. function Fast Boot Enables or disables Fast Disabled Disables this Boot to shorten the OS boot function process. (Default: Disabled). Enabled Enables this function Boot Option Specifies the overall boot Ex: Boot Ex.: Set Network...
-
Page 73: Security Menu
IH70 Motherboard User Manual 3.2.5 Security Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference. BIOS Setting Description Setting Effect Option Administrator Displays whether or not an... -
Page 74: Save & Exit
IH70 Motherboard User Manual 3.2.6 Save & Exit BIOS Setting Description Setting Effect Option Save Changes This saves the changes to the CMOS <YES> Save changes and Exit and exits the BIOS Setup program. Discard Changes This exits the BIOS Setup without <YES>... - Page 75 IH70 Motherboard User Manual and Reset any changes <NO> Return to the BIOS Setup Main Menu Save Changes Save changes done so far to any of <YES> Saves the changes the setup options. <NO> Return to the BIOS Setup Main...
-
Page 76: Using Recovery Wizard To Restore Computer
IH70 Motherboard User Manual 3.3 Using Recovery Wizard to Restore Computer IH70 computer has a dedicate recovery partition stored on the hard drive of the PC to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to each IH70 series PC. - Page 77 IH70 Motherboard User Manual Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed.
-
Page 78: Chapter 4 Driver Installation
IH70 Motherboard User Manual Driver Installation This chapter offers information on all of the recommend driver installation. Sections include: 4.1 Intel Chipset Driver Installation 4.2 Graphics Driver Installation 4.3 Audio Driver Installation 4.4 Ethernet Driver Installation 4.5 Intel® Management Engine Software Installation 4.6 Fintek COM Port Driver Installation... -
Page 79: Intel Chipset Driver Installation
IH70 Motherboard User Manual Chapter 4 Driver Installation 4.1 Intel Chipset Driver Installation The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation. - Page 80 IH70 Motherboard User Manual Step 3 Click Next to install the driver. Step 4 Click “Yes, I want to restart this computer now “to continue.
-
Page 81: Graphics Driver Installation
IH70 Motherboard User Manual 4.2 Graphics Driver Installation IH70 Motherboard comes with Intel mobile Core i7/i5/i3 dual core CPU and with an integrated graphics controller. You need to install the Graphic driver to enable the function. Intel Graphic supports versatile display options and 32-bit 3D graphics engine. - Page 82 IH70 Motherboard User Manual Step 2 Click on “Next “to install the driver. Step 3 Click “Yes “to agree with the License terms.
- Page 83 IH70 Motherboard User Manual Step 4 Click “Next “to install the driver. Step 5 Click “Yes, I want to restart this computer now” to finish the installation and restart your computer.
-
Page 84: Audio Driver Installation
Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology. The user must make sure which operating system you are using in the IH70 Motherboard before installing the Audio drivers. Follow the steps below to complete the installation of the Realtek ALC886 Audio drivers. - Page 85 IH70 Motherboard User Manual Step 3 Select “Yes, I want to restart my computer now” to finish the installation and restart the computer, and click Finish.
-
Page 86: Ethernet Driver Installation
IH70 Motherboard User Manual 4.4 Ethernet Driver Installation The users must confirm which operating system is used on the IH70 Motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers. - Page 87 IH70 Motherboard User Manual Step 2 Extract the “PROWinX64_19.0” file and click “Next” to install the driver. Step 3 Click “Next” to agree with the License terms.
- Page 88 IH70 Motherboard User Manual Step 4 Click “Next” to install the driver. Step 5 Click “Finish” to complete the driver installation.
-
Page 89: Intel® Management Engine Software Installation
IH70 Motherboard User Manual 4.5 Intel® Management Engine Software Installation This installation program installs the Intel® ME software components required for the Platform on which you are installing, and install only those components that matches your platform capabilities. Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”... - Page 90 IH70 Motherboard User Manual Step 2 Click the checkbox for Install Intel® Control Center & click “Next”. Step 3 Click “Yes” to agree with the License terms.
- Page 91 IH70 Motherboard User Manual Step 4 Carefully read the License Agreement and select “I accept the terms of the license agreement” to continue the installation. Step 5 Click “Finish” to complete the software installation.
-
Page 92: Fintek Com Port Driver Installation
IH70 Motherboard User Manual 4.6 Fintek COM Port Driver Installation STEP 1 If the system is WIN7 please firstly close UAC (Refer following “Disabling User Account Control (UAC) in Windows 7”) STEP 2 Extract the Patch_0408.zip to a folder. STEP 3 Double-click batch file (patch.bat) will install driver. - Page 93 IH70 Motherboard User Manual To turn off UAC, move the slider to the Never notify position, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation.
- Page 94 IH70 Motherboard User Manual To turn UAC back on, move the slider to choose when you want to be notified, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation. You will need to restart your computer for UAC to be turned off.
-
Page 95: Usb 3.0 Driver Installation (For Windows 7)
IH70 Motherboard User Manual 4.7 USB 3.0 Driver Installation (for Windows 7) If the operating system of the device is Windows Embedded 8.1 Industry or Windows Embedded 8 Standard, users can skip this Note installation. Step 1 Locate the hard drive directory where the driver files are stored with the browser or the explore feature of Windows*. - Page 96 IH70 Motherboard User Manual Step 4 Read License Agreement and click “Yes” to proceed. Step 5 Review Readme File Information and click “Next” to proceed.
- Page 97 IH70 Motherboard User Manual Step 6 When the Setup Progress is complete click “Next” to proceed.
- Page 98 IH70 Motherboard User Manual Step 7 Click “Yes, I want to restart this computer now” to finish the installation and restart your computer.
-
Page 99: Chapter 5: Technical Support Documents
IH70 Motherboard User Manual Technical Support Documents This chapter includes SDK list for this User Manual. 5.1 Digital I/O SDK 5.2 Watchdog SDK... - Page 100 5.1 Digital I/O SDK To find the Digital I/O Sample code, please refer to the IH70 driver CD SDK or contact 5.2 Watchdog SDK To find the Watchdog Sample code, please refer to the IH70 driver CD SDK or contact...
