Figure 45: Connecting A Fiber-Optic Cable To An Optical Transceiver Installed In; A Device - Juniper EX3200 Hardware Manual

EX3200 Switch Hardware Guide
Related
Documentation
140

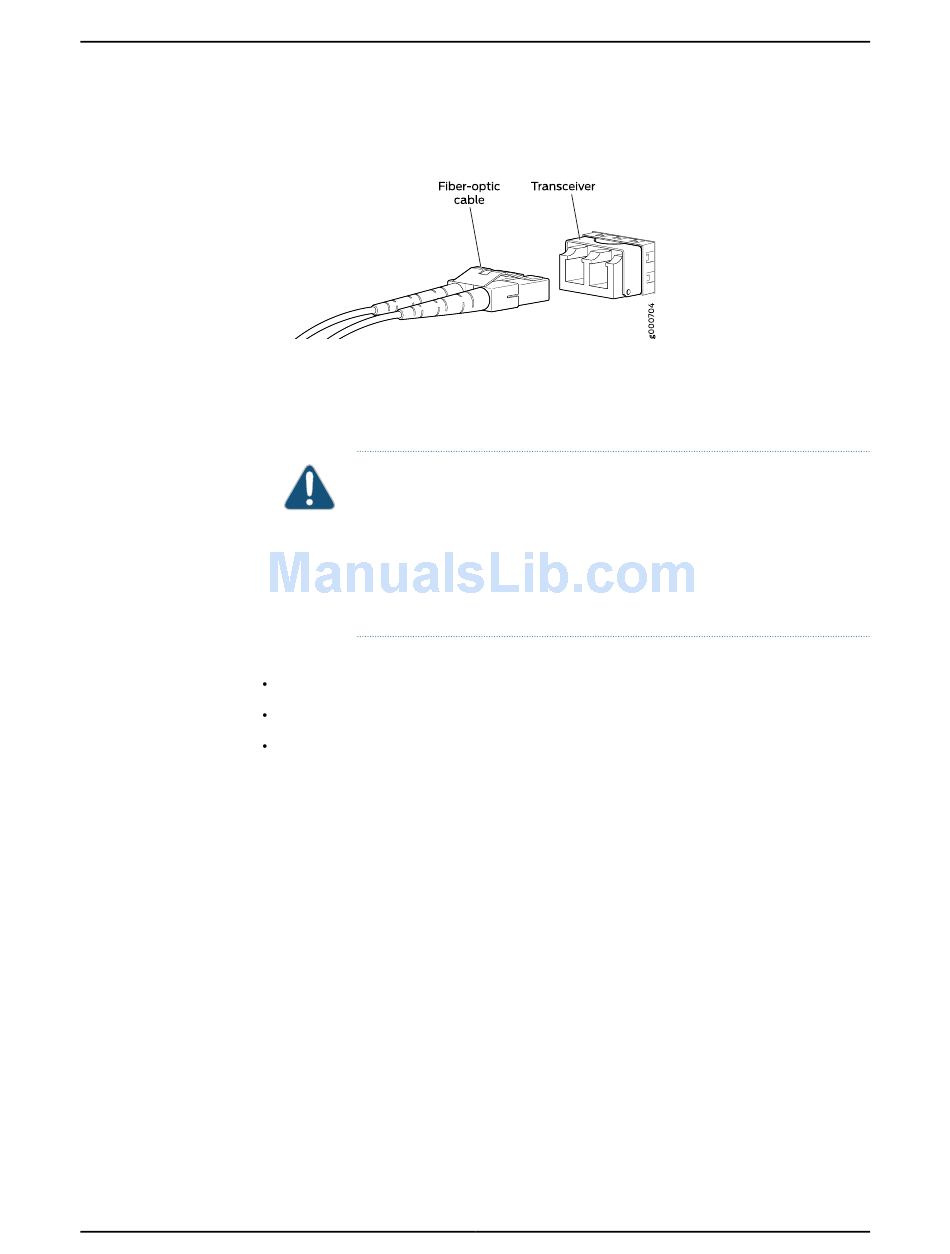

Figure 45: Connecting a Fiber-Optic Cable to an Optical Transceiver
Installed in a Device
Secure the cables so that they do not support their own weight. Place excess cable
4.
out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain
their shape.
CAUTION: Do not bend fiber-optic cables beyond their minimum bend
radius. An arc smaller than a few inches in diameter can damage the cables
and cause problems that are difficult to diagnose.
Do not let fiber-optic cables hang free from the connector. Do not allow
fastened loops of cables to dangle, which stresses the cables at the
fastening point.
Disconnecting a Fiber-Optic Cable from a Device on page 180
Installing a Transceiver on page 173
Maintaining Fiber-Optic Cables on page 181
