614T/R Quick Start Guide
This guide helps you install and use your 614T/R for the first time.
Go to
check if firmware upgrades are available.
Scan for full manual
Step 1: Capture the EDID
614T/R Two Fiber Detachable Optical DVI Transmitter
Receiver

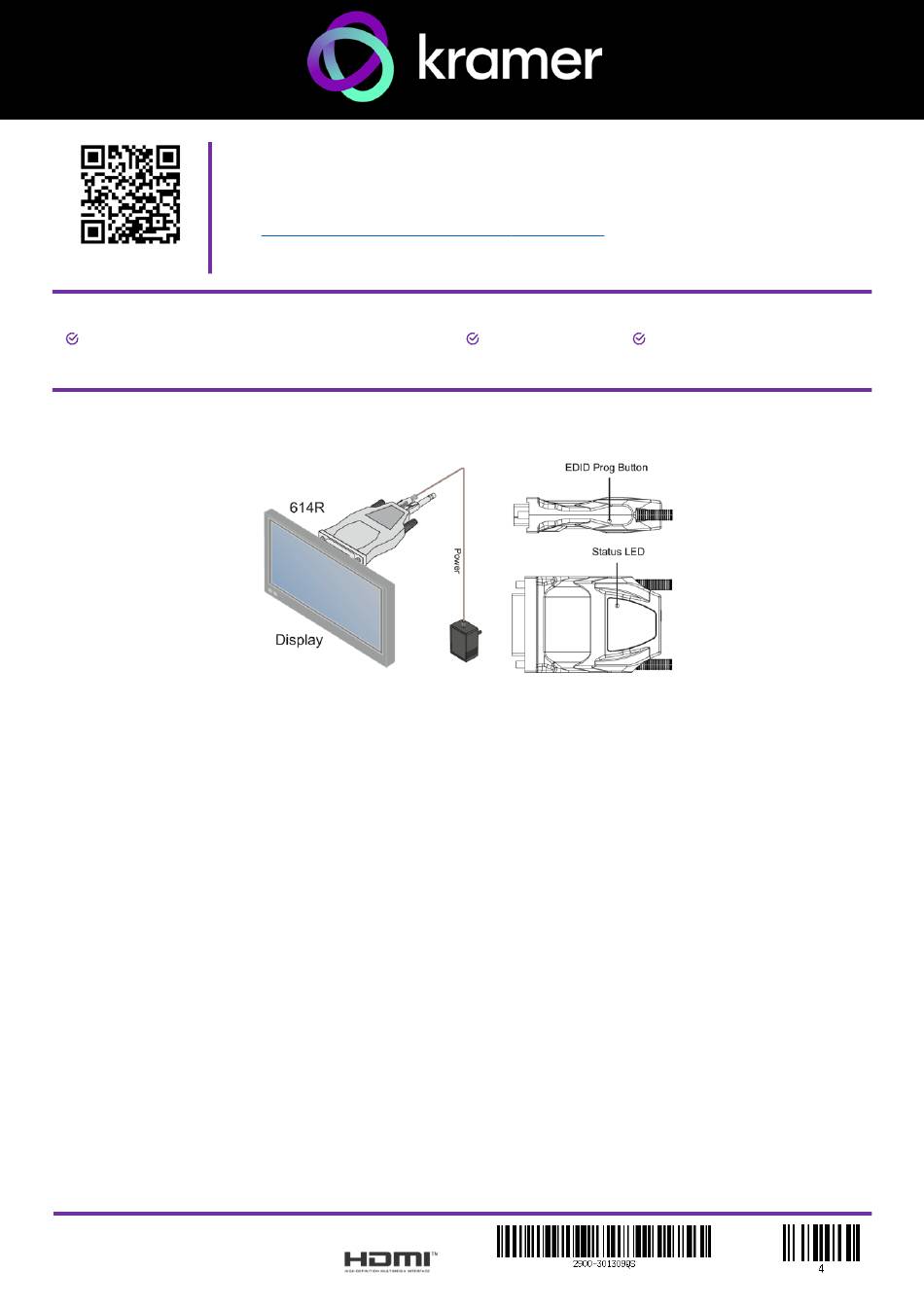

Step 2: Get to know your 614T/R
Capture the EDID of the display device if the display has a resolution different than 2560x1600.
1. Connect the power to the display.
2. Connect the power to the 614T.
3. Push the EDID button.
4. Connect the 614T directly to the display device (the LED flashes and turns off after about 7-8 seconds).
5. When the LED is off, disconnect the 614T from the display.
614T/R Quick Start
https://k.kramerav.com/support/product_downloads.asp
to download the latest user manual and
2 Power supplies
(5V DC)
P/N:
1 Quick start guide
Rev:
