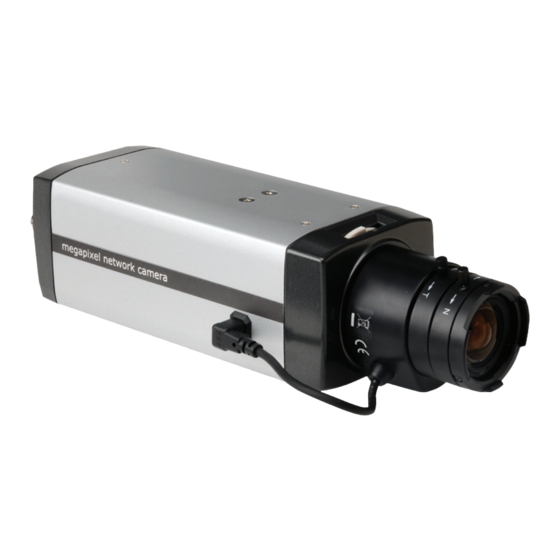

Network Camera User Guide
C-AX401C1MN
1
2
4
6
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for i3 International C-AX401C1MN
Summary of Contents for i3 International C-AX401C1MN
- Page 1 C-AX401C1MN Network Camera User Guide CONTENTS PRECAUTIONS NOTES OF USE NETWORKING SETTINGS SPECIFICATIONS WARNING: Before attempting to connect or operate this product, read these instructions carefully. Save this manual for future use. To avoid electrical shock and to preserve the product warranty, DO NOT disassemble the camera.
- Page 2 PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 NOTES OF USE Power Supply Ensure the supplied voltage meets the power consumption requirements of this camera before powering the camera on. Incorrect voltage may cause irreparable damage to the video camera and will effectively void the camera warranty Operating or storage location Avoid shooting very bright objects (such as light fittings) for an extended pe- riod.
- Page 4 NOTES OF USE Included in the box Camera (C-Ax401C1MN) Software CD Quick start guide Feature & Functions SD card slot Power (White:-/Red:+) Power 24VAC 12VDC 24VAC Positive White 24VAC Negative Default Button Reset Button Power Indicator Network TV/IP Select AL. I(Alarm In) &...
- Page 5 NETWORKING Connecting to a camera using a network 1. Connect the camera to a PoE (Power over Ethernet) enabled switch or router using a RJ45 Cat5 or Cat6 connection cable. 1.1. Connect the users computer to the PoE switch or router. 1.
- Page 6 NETWORKING 4. If you cannot connect try the following: 4.1. Wait. sometimes the router or switch will take a few seconds to refresh the routing table 4.2. Go to control panel, network connections, and properties of the LAN or WAN the camera is connected to. Under the Internet Protocol (TCP/IP) properties, change the 2nd section of the IP to match the same as your camera EG IP: 192.0.0.90 Camera: 192.0.0.64 Network connections...
- Page 7 SPECIFICATIONS Camera Synch System Internal Day & Night (IICR) D/N (auto/manual) Image Sensor 1/3" progressive transfer CCD Number of Effective Pixels Full scanning mode: 1280 (H) x 960 (V) Lens Optional Mega-pixel lens: f=2.4~6mm, F1.2, f=3.0 ~ 8 mm, F1.0, f=5~50mm F1.4 Frame rate SXVGA 1280x960 @15 fps;...
- Page 8 SPECIFICATIONS Interface Network Port RJ45 with LEDs Video Port Audio IN & OUT Ports 3.5mm phone jack Alarm IN & OUT Ports 1x Alarm In / 1x Alarm out Electrical Audio Two-way mono audio; Full-duplex Alarm Yes, 1 x Alarm in, 1 x Alarm out SD card slot Yes, SD card up to 2GB supported Power Requirement...
- Page 9 i³ INTERNATIONAL INC. 1.866.840.0004 U.S.A. 440 Lawrence Bell Drive, Canada 780 Birchmount Road, www.i3international.com Suite 16, Williamsville Unit 16, Scarborough, NY, 14221 ON, M1K 5H4...
