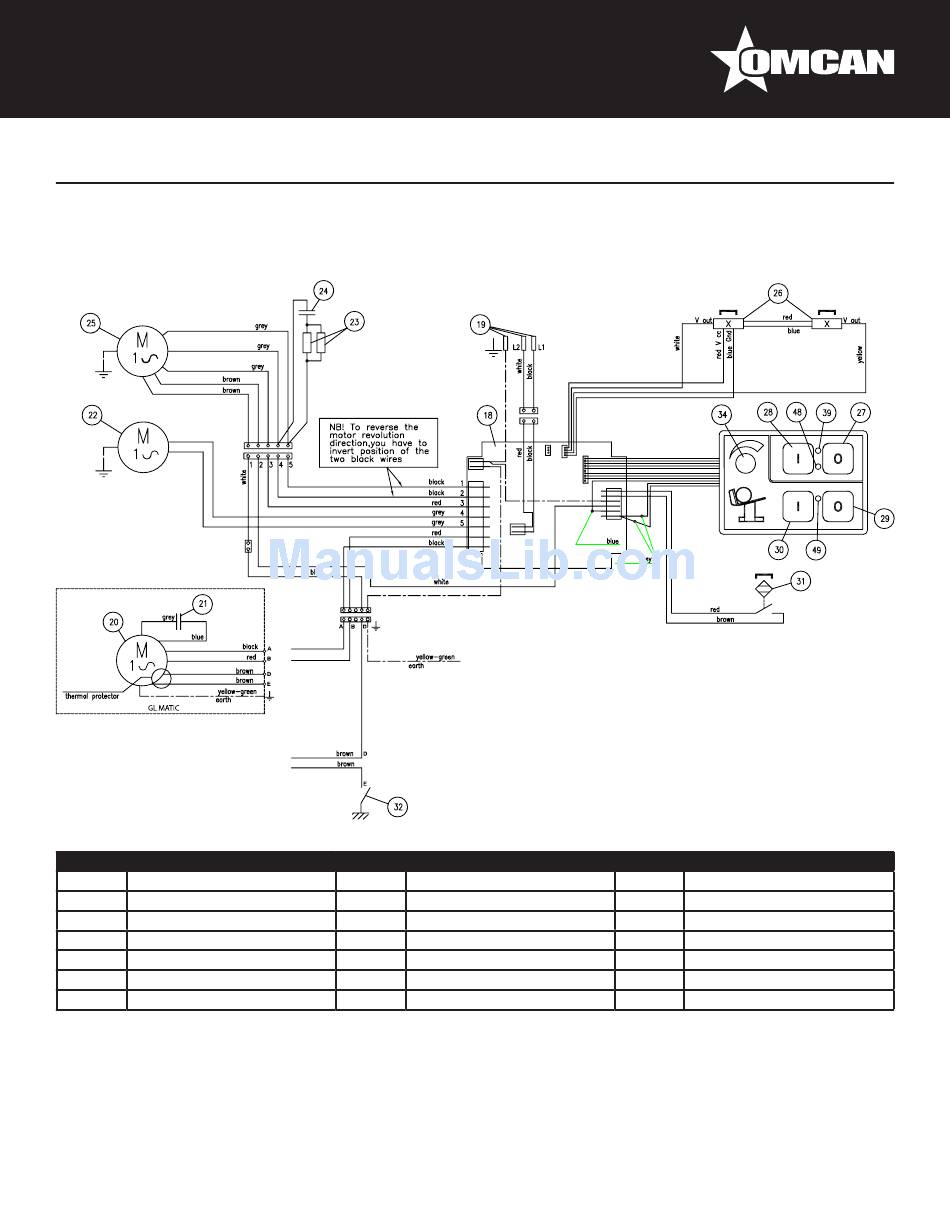

Electrical Schematics

Model MS-IT-0300-A
Position Description
18 Printed Circuit Board
19 Power Cord
20 Blade Motor
21 Capacitor 14uF
22 Fan
23 Resistance 50W
24 Capacitor 35uF
13654
Position Description
25 Carriage Motor
26 Hall Effect Switch
27 Blade Stop Push Button
28 Blade Start Push Button
29 Carriage Stop Push Button
30 Carriage Start Push Button
31 Carriage Microswitch
24
Position Description
32 Blade Cover Contact
34 Carriage Stroke Adjustment
39 LED Power Supply
48 LED Blade Start
49 LED Product Holder Start
