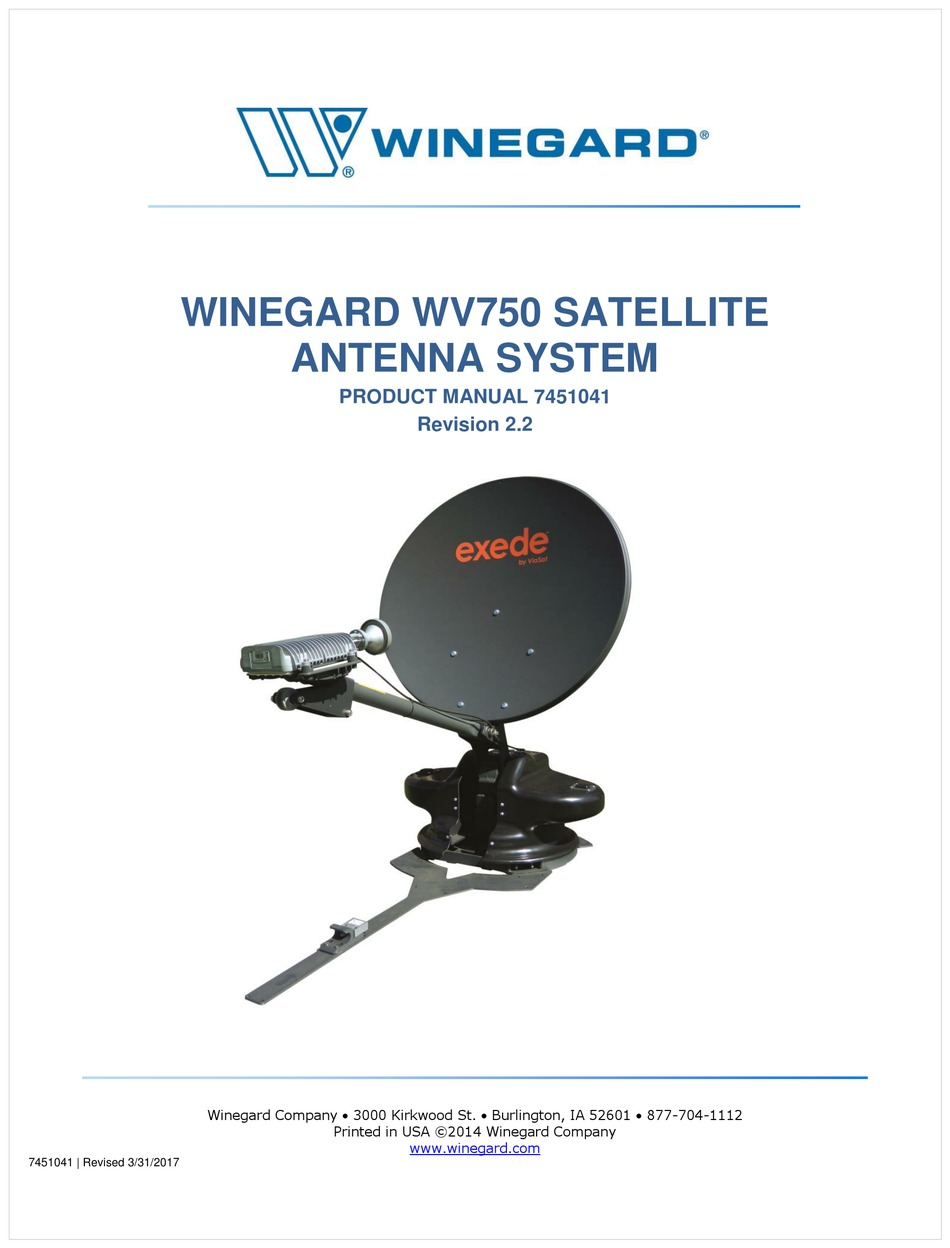

WINEGARD WV750 SATELLITE

ANTENNA SYSTEM

PRODUCT MANUAL 7451041
Revision 2.2
Winegard Company  3000 Kirkwood St.  Burlington, IA 52601  877-704-1112
Printed in USA ©2014 Winegard Company
www.winegard.com
7451041 | Revised 3/31/2017
