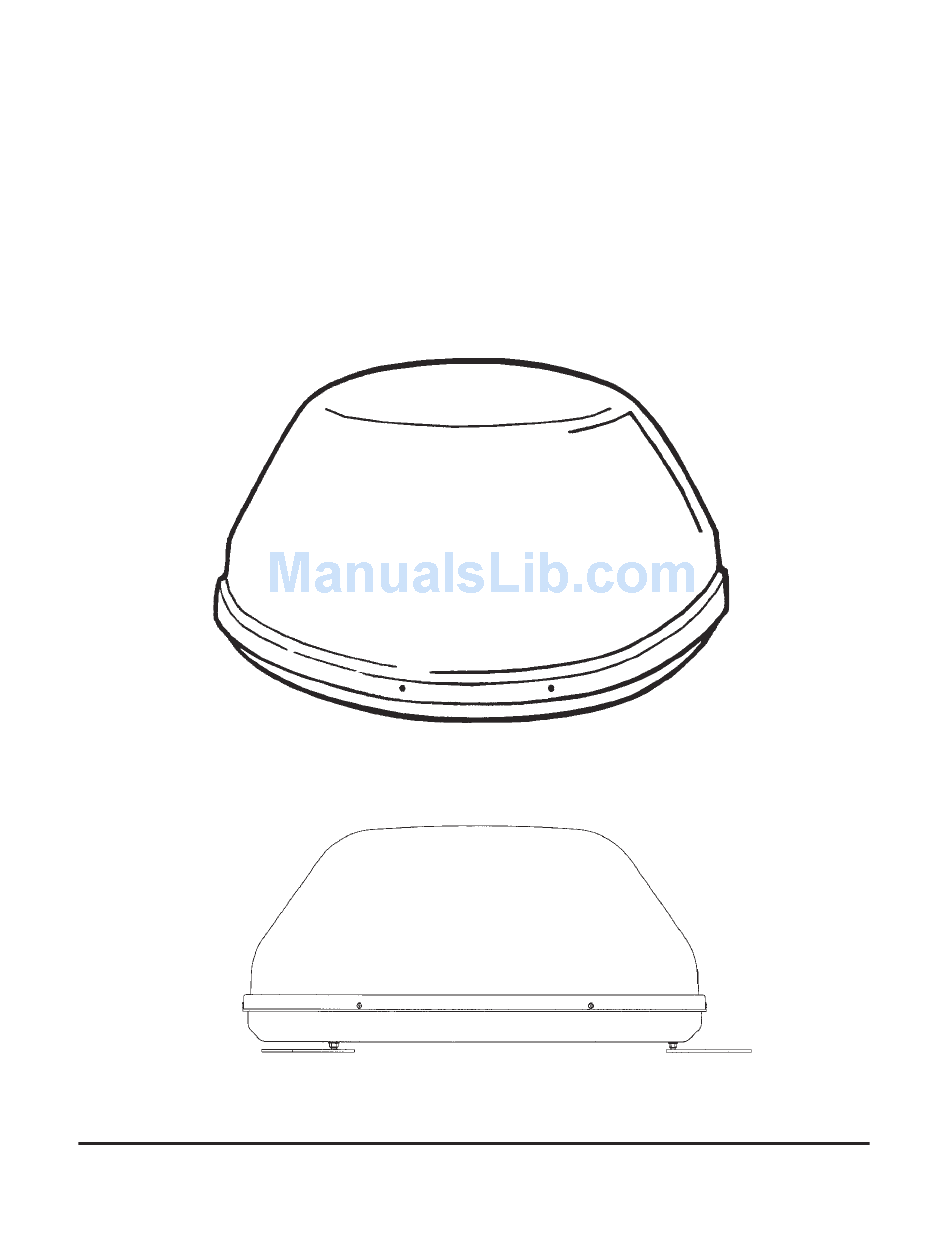

WINEGARD
®
TM
Movin' View
Digital Satellite Mobile Antenna
Models MV-2222/MV-1111
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2001 2451021 Rev. 1/06/03
1
Advertisement
Table of Contents
Related Manuals for Winegard Movin' View MV-1111
Summary of Contents for Winegard Movin' View MV-1111
- Page 1 Digital Satellite Mobile Antenna Models MV-2222/MV-1111 Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2001 2451021 Rev. 1/06/03...
- Page 2 ® DIRECTV - 1-800-DIRECTV (1-800-347-3288) Your new Winegard RV Digital Satellite System is an easy-to-use satellite TV reception system. Because it mounts on the top of your recreational vehicle, it goes where you go and provides quality reception of digital satellite signal in the continental United States only.
-
Page 3: Parts Included
About this manual — We hope this manual will provide clear instructions to install and operate the MV-2222 and MV-1111. Two symbols have been used — Indicates caution should be taken! PARTS INCLUDED: 1 Radome 3 base mounting feet 1 Power switch... -
Page 4: Installation Diagram
Installation Diagram FIGURE 1 ADJUSTABLE BASE FOOT LEVELING SCREW LEVELING SCREW ADJUSTABLE BASE FOOT S:\PART-NO\1021P4 GPS ANTENNA SWITCH LOCATION EL MOTOR POWER SUPPLY COUNTERWEIGHT AZ MOTOR REFLECTOR HEYCO ® CONNECTORS LEVELING SCREW REAR ADJUSTABLE BASE FOOT REAR BASE FOOT MUST DIRECTLY FACE REAR OF VEHICLE... -
Page 5: Installation
Installing unit on roof of vehicle — Install in DRY conditions only! IMPORTANT! Do not install this system in the rain, or under any wet conditions. Moisture may affect electronics and void your warranty! 1. For best performance and to reduce signal acquisi- tion time, park vehicle on a level surface. -
Page 6: Gps Installation
Installation ROOF INSTALLATION, continued Place the unit on the roof in its permanent location and mark around the base bracket, Figure 4. (Make sure the rear adjustable base foot is directly facing the back of the coach.) FIGURE 4 10. Clean roof area where the base feet will be attached to the roof. -
Page 7: Installation & Wiring
See diagram. Connect a power wire to the + and - (minus) terminals labeled “OUT” on the DC Voltage Filter. 3. Connect the ground wire from the MV-1111/MV-2222 and the ground wire coming from the DC Voltage Filter “OUT” together using large yellow spade connector. (Black wire from MV unit and ground wire coming from the - (minus) on the DC Voltage Filter’s “OUT”... - Page 8 Installation • Wiring Connecting the receiver — MV-1111 Domed Automatic/MV-2222Tracking System Connecting one receiver 1. Mount the DC Passive D575p demultiplexer in the same cabinet as your receiver. 2. Connect the coax cable from the roof to the “input” on the DC Passive D575p demultiplexer. Connect a coax cable from the “sat receiver”...
-
Page 9: Operation
To operate your system — NOTE: For Model MV-1111 vehicle must be parked. 1. Turn on receiver and television set. This unit will not operate unless receiver is on. Be sure your TV is turned to channel 3 or 4. -
Page 10: Troubleshooting
Troubleshooting IF YOU DO NOT HAVE A SIGNAL: 1. The signal may be blocked by trees, hills or structures. Pull into an area where no trees or buildings are in the line of sight from unit to the satellites. 2. Check your +12 VDC power switch. Make sure it is in the ON position. -
Page 11: Base Diagram
FIGURE 9 #3 CONTROL #4 COAX CABLE AT BOX TO LNBF CONTROL BOX CONTROL (DETAIL BELOW) #2 LNBF VOLTAGE s:\part-no\1021p11 #1 POWER SUPPLY (POWER WIRE, SEE DETAIL) EL MOTOR POWER SUPPLY AZ MOTOR DO NOT USE EL MOTOR AZ MOTOR Base Diagram HEYCO CON- NECTORS... -
Page 12: Specifications & Warranty
Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
