Winegard Movin' View MV-4000 Manual

Winegard Movin' View MV-4000 Manual

Digital satellite mobile antenna for single receiver for use while stationary or in-motion
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

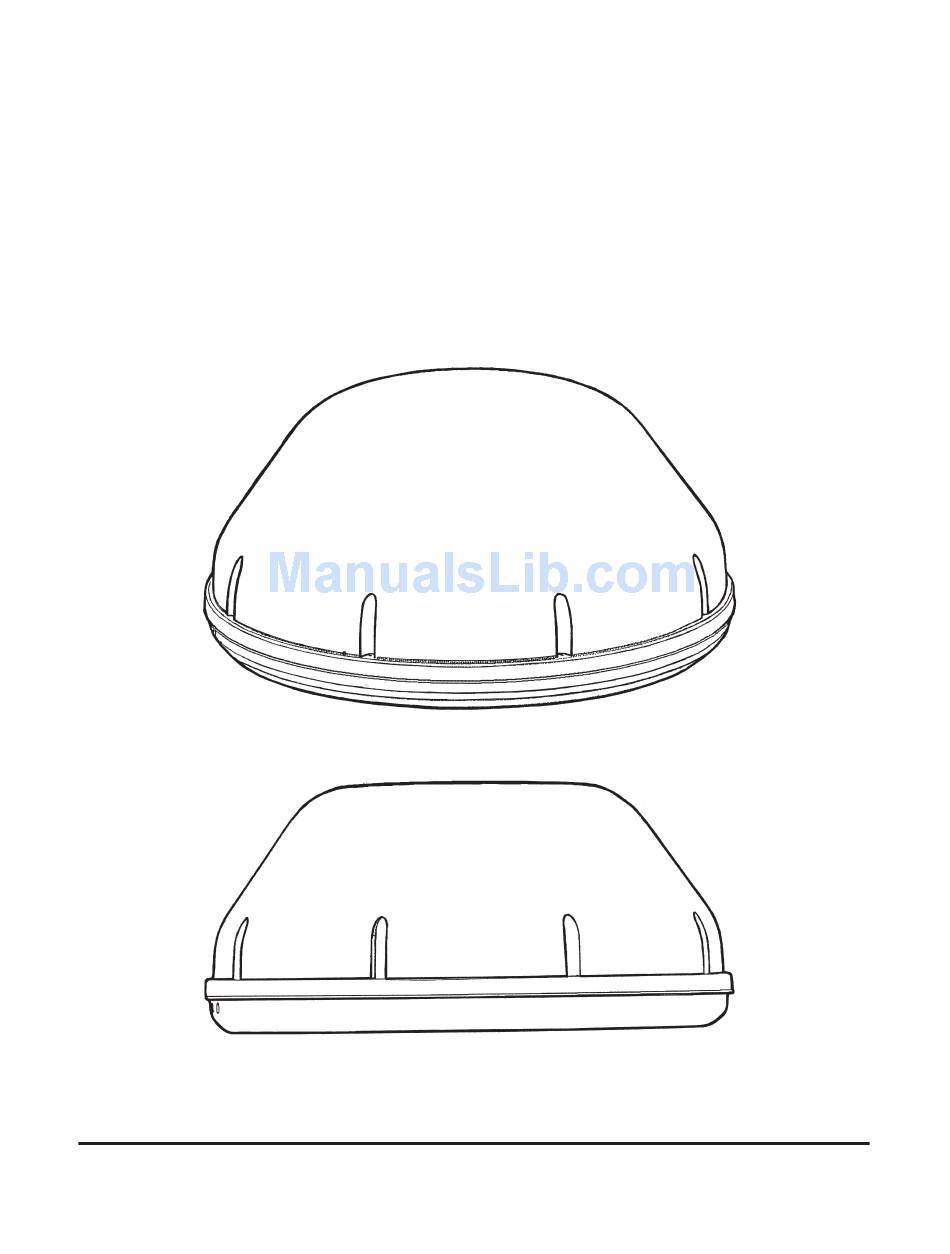

WINEGARD
Movin' View
TM
Digital Satellite Mobile Antenna for Single Receiver
for Use While Stationary or In-Motion
Model MV-4000
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2005 2452065 Rev. 5/05
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movin' View MV-4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Winegard Movin' View MV-4000

Summary of Contents for Winegard Movin' View MV-4000

  • Page 1 Use While Stationary or In-Motion Model MV-4000 Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2005 2452065 Rev. 5/05...
  • Page 2 Introduction/How Does Digital Satellite TV Work? About this manual —We hope this manual will provide clear instructions to install and operate MV-4000. Two symbols have been used — Indicates caution should be taken! Introduction Congratulations! You have purchased one of Winegard’s latest developments in the mobile satel-...
  • Page 3 1= DOWN 0= UP FIGURE 1A, OPTION A CENTER LINE OF VEHICLE MV-3500 MV-4000 DIRECTV receivers must be set to the two satellite, oval dish setting. Refer to your receiver manual. ® DISH Network receivers must either have the check switch set for SW42 or unknown, no satellite found.

  • Page 4: Operation

    Operation 1. Turn on receiver and television set. The MV-4000 must be connected to a receiver that is plugged into 120 VAC. 2. Verify that you are getting the receiver’s menu screens on the television. These screens are avail- able with or without the dish finding the signal.
  • Page 5 To toggle between satellites when subscribing to multi-satellite programming— While in Sleep Mode, the MV-4000 will toggle be- tween the primary and seconday satellites for either DISH Network or DIRECTV. Both have program- ming on more than one satelite.When a channel is...

  • Page 6: Parts Included

    PARTS INCLUDED: 1 Radome 1 Power switch 1 Wall plate (white) 1 Surface mount box 1 Cable entry plate 2 Cable ties 3 Base feet 1 Coax connector TOOLS NEEDED FOR UNPACKING & INSTALLATION: Level Drill w/3/4” bit 1-1/4” hole saw (if mounting switch in wall) Phillips screw driver #2 UNPACKING THE UNIT .

  • Page 7: Base Diagram

    Base Diagram SWITCH LOCATION FIGURE 2 (SIDE OF BOX, SEE PAGE 3) COAX CABLE AT CONTROL BOX +12VDC POWER CABLE LNBF VOLTAGE CONTROL BOX DETAIL Vehicle Front (#1 represents Switch DOWN; #0 represents Switch up) Sat. Rcvr. Mt. Option Mount Option A DIRECTV ...

  • Page 8: Installation

    15” ... 32” FIGURE 3 WARNING: Level the base front to back and side to side. If base is not level the MV-4000 may re- quire more time to locate the correct satellite or may not locate the correct satellite.

  • Page 9: Installing The Power Switch

    DO NOT OVERTIGHTEN!! INSTALLING THE POWER SWITCH 1. Choose a location to install the MV-4000 power ON/OFF switch. Remember when selecting a location that you will need to run the +12VDC power cable from the MV-4000 to the switch. Be sure the switch is in the OFF position before continuing.

  • Page 10: Installation & Wiring

    Connect the coax cable from the roof to the “Satellite In” connection on the receiver. (A dual receiver upgrade kit is available. Contact Winegard Company for more information.) INITIALIZING --- 1. Be sure vehicle is in a location free of all obstruc- tions and with a clear view of the southern sky.

  • Page 11: Troubleshooting

    1. Check your Power switch to verify that it is in the ON position. 2. Check +12 V wires at unit to verify power. Check fuse on electronics. 3. Verify that the MV-4000 has had it’s shipping straps removed. These straps are located inside the dome and keep the dish from moving until it is installed.

  • Page 12: Specifications & Warranty

    Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
