VHF & UHF Antenna
Coast to Coast RV Services
20 George Young Street, Auburn NSW 2144
Postal Address: PO Box 415, Regents Park NSW 2143
Email Technical: technical@coastrv.com.au
Email Warranty: warranty@coastrv.com.au
Specifications
• For VHF & UHF channels
• Bidirectional antenna
• Operating dimensions: 43.2 cm wide x 116 cm tall
• Length when stowed: 125.3 cm
• Height when stowed: 11.2 cm
• Storage (survival) temperature: - 40° C to +80° C
• For outdoor use only
• Model CC-10HV (Aftermarket)
Product Registration
Please register your Winegard product by
completing the online registration form at http://
www.winegard.com/registration.
Phone: 02 9645 7600
Fax: 02 9645 7688
2452246
Advertisement
Table of Contents
Related Manuals for Winegard Sensar HV
Summary of Contents for Winegard Sensar HV
- Page 1 • Height when stowed: 11.2 cm • Storage (survival) temperature: - 40° C to +80° C • For outdoor use only • Model CC-10HV (Aftermarket) Product Registration Please register your Winegard product by completing the online registration form at http:// www.winegard.com/registration. 2452246...
- Page 2 Is within five degrees of level (for best operation, must be within three degrees of level) • For sloped/rounded roofs, Winegard recommends model RW-2000 exterior roof Maintain a minimum RW-2000 IW-5000 wedge (sold separately) to level installation.
- Page 3 Run a solid bead of sealant over the mounting around the hole for cable entry, and around the screws. This will also help to prevent leaks. bottom gear housing. Winegard Sensar HV Antenna Winegard Sensar HV Antenna...
- Page 4 • If the roof is more than 12 cm thick (max. 17.8 cm), a directional handle extension is needed. the bottom of the directional Winegard recommends model EK-1036 directional handle extension (sold separately). handle. Sold Separately Inside the vehicle, mark the...
- Page 5 +12 VDC source wires to make sure there are 12VDC present. If there is still no +12 VDC, replace power supply. Don’t apply sealant over the top of the base plate. moving the vehicle. Winegard Sensar HV Antenna Winegard Sensar HV Antenna...
- Page 6 If you don't inner insulation, being (braid and foil, on foil have a dealer/service center near you, call Winegard Compression tool Plug Company at 1-800-288-8094. All major credit cards careful not to nick shield cable).
- Page 7 Replacement Kits & Parts Parts Antenna Head & Boom CC-RPHV: Antenna Element CC-25HV: Retrofit Kit (Head Only) Part Description Quantity Part Description Quantity Antenna Decal Antenna Decal (unattached) Antenna Element CC-25HV Manual 55” Coax Boom Assembly Assembly CC-RPHV Manual 55” Coax Assembly Antenna RP-0154: Boot...
- Page 8 Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated 13 mm sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
Need help?
Do you have a question about the Sensar HV and is the answer not in the manual?
Questions and answers
Why should sealant NOT be used over the top of the base plate?

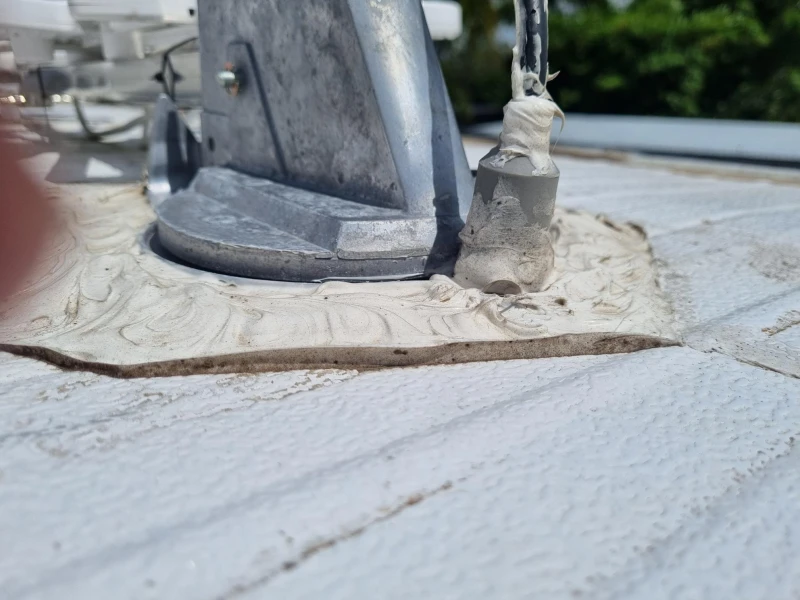

Sealant should not be used over the top of the base plate on the Winegard Sensar HV to prevent interference with the rotating gear housing. Applying sealant in this area could affect the movement and functionality of the antenna.
