2.4.1 SIP Call Button Connectors

See the following figures and tables to identify the connectors and functions of the SIP Call Button.
Connector
JBTN
JMIC1
JSPKR
JKPAD
JY
JP10
JBT1
JBT2
Operations Guide

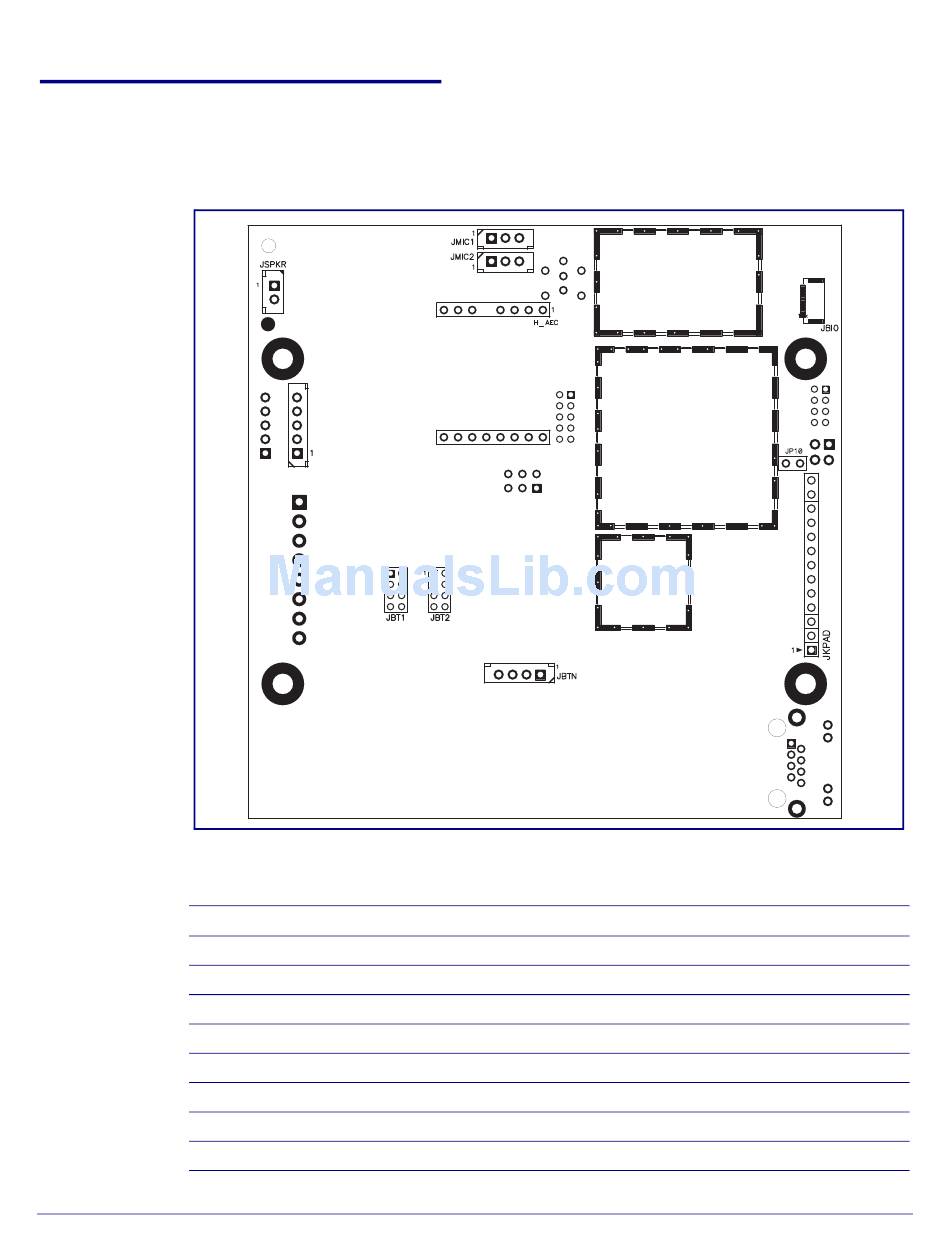

Figure 2-9. Connector Locations
JY
Table 2-2. Connector Functions
Function
Call Button LED Interface
Microphone Interface
Speaker Interface
Keypad Interface (Not Used)
I²C 5V Peripheral Bus
Disables the intrusion sensor when installed.
Touch Button — 1 Interface (Not Used)
Touch Button — 2 Interface (Not Used)
930801M
