CyberData 011049 Operation Manual page 11

Door Strike 011269 Door Strike Relay
Module (sold separately)*
*See the Quick-Reference Placemat or Operations Guide
of the relevant door strike relay for connection specifics.
Door Strike
011375 Network Dual
Door Strike
Door Strike Relay 
(sold separately)*
*See the Quick-Reference Placemat or Operations Guide
of the relevant door strike relay for connection specifics.
Operations Guide

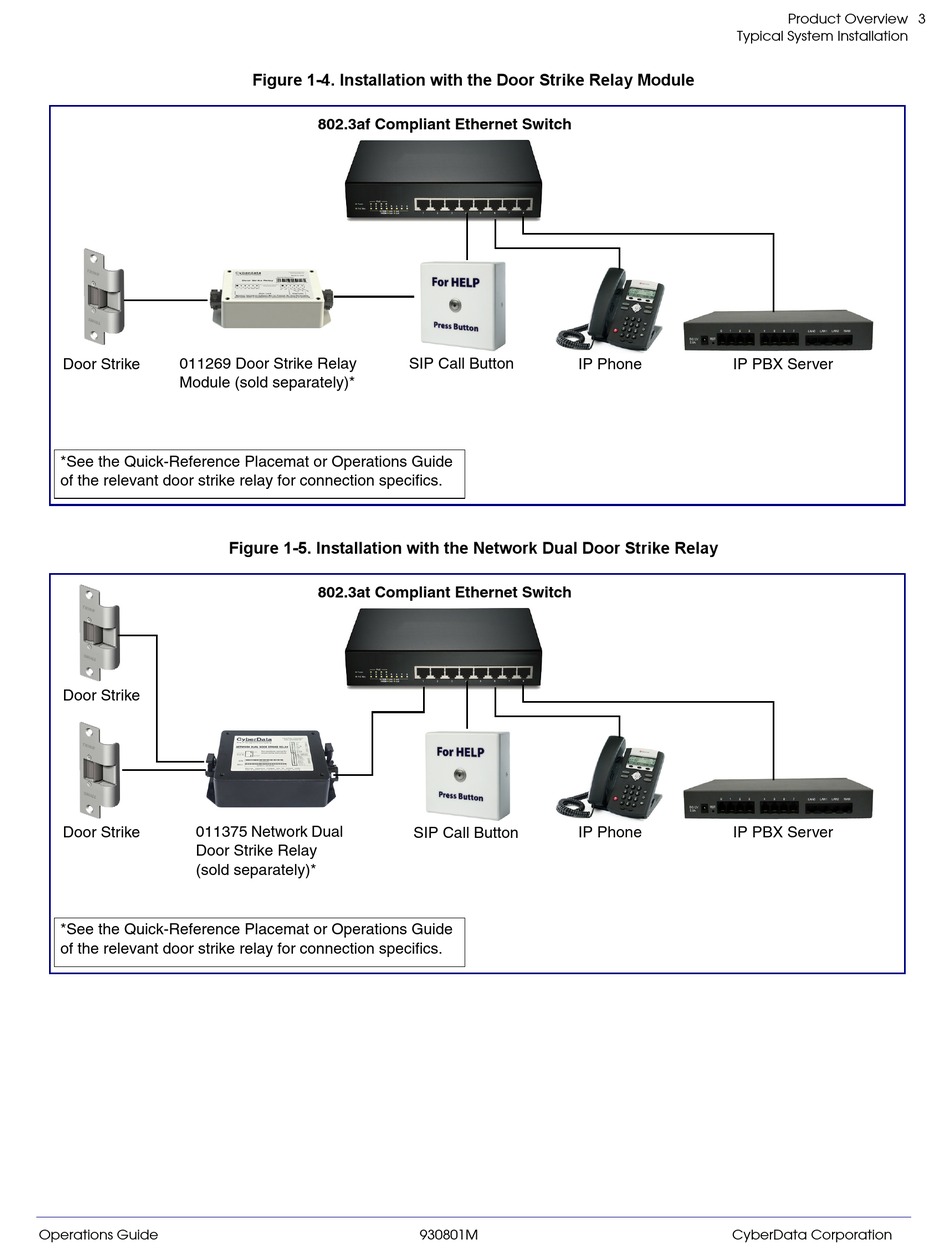

Figure 1-4. Installation with the Door Strike Relay Module
802.3af Compliant Ethernet Switch
Figure 1-5. Installation with the Network Dual Door Strike Relay
802.3at Compliant Ethernet Switch
SIP Call Button IP Phone
SIP Call Button IP Phone
930801M
Product Overview
Typical System Installation
IP PBX Server
IP PBX Server
CyberData Corporation
3
