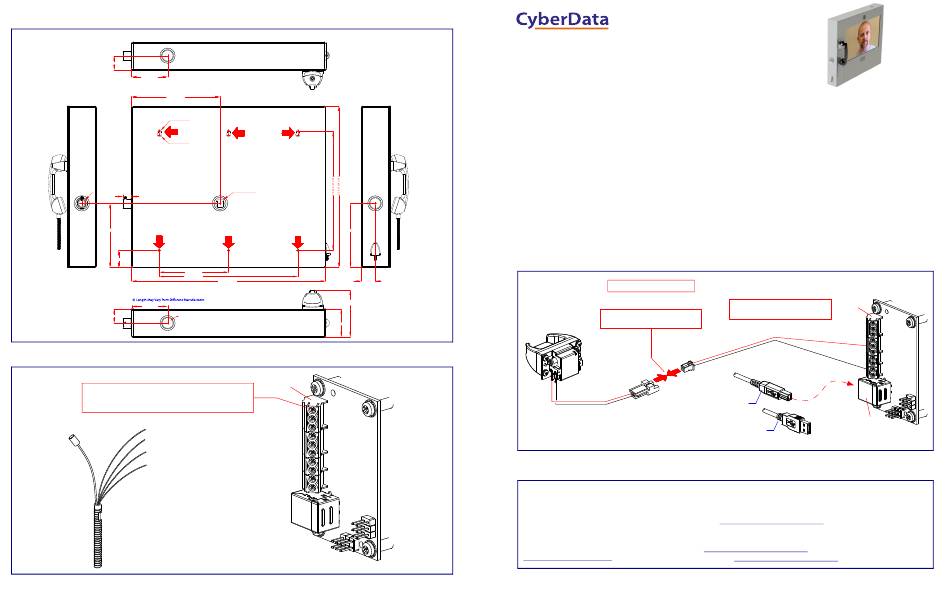

CyberData DX80 Installation Quick Reference

Backbox Mounting Holes Dimensions
2.047 [52.00]
5.118 [130.00]
12.567 [319.19]
Top
ø0.41 [ø10.5]
Knock Out
2
ø0.63 [ø16.0]
Front Right Rear
Tool Required to Remove
Knock Out:
1) Hammer
2) Screwdriver
Typical EMT Fitting
Hole Diameter
ø1.160 [ø29.50]
4
1.230 [31.25]
9.114 [231.50]
Knock Out
2.421 [61.50]
9.843 [250.00]
19.685 [500.00]
Notes:
1) Dimensions are in Inches [Millimeter]
2) Mounting Holes Fit Up to 1/4" Square Neck Carriage Bolt, 1/4" Self-Tapping or 10 Millimeter Machine Screw
3) 1" EMT Fitting is not provided.
5.118 [130.00]
2.047 [52.00]
View Shown with
Hole Plug Installed
Open Faceplate
then Remove Fastener
from the Inside
Armored Cord Handset to USB to Analog Audio Module
Tool Provided for Terminal Block Screw:
1) #00 size Phillips Screw Driver
Red Wire to J4 (Position 1)
Yellow Wire to J4 (Position 2)
Green Wire to J4 (Position 3)
Black Wire to J4 (Position 4)
Armored Cord Wires End
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
Rear
Bottom
Front
Top
Top
Knock Out
Rear Left
1
ø1.30 [ø33.0]
Conduit Hole Fits
One Inch Conduit
EMT Fitting 3
(One on Each Side)
9.114 [231.50]
Knock Out Knock Out
27.559 [700.00]
Approx.
Front 6.690 [169.92]
Tool Required to Remove
Nut Behind:
Top
1) 3/8" Socket / Wrench 4.016 [102.00]
or 9mm Socket / Wrench
J4
1
2
3
4
5
6
7
8
9
931352A
The IP Endpoint Company
Getting Started
Take the following into consideration before you install this product:
• Due to the size and mass of this product, it is important that the Backbox is safely installed according to these installation
instructions.
• Make sure that the type of wall is capable of supporting the system and use screws that are suitable for that type of wall.
Front
• The system must be installed by qualified personnel in accordance with state and local building regulations.
• Also see the
• Locate the provided Security Torx Driver Bit (usually taped right next to the Hookswitch on the Faceplate).
• Tool required to remove Security Torx Screws (an Electric Hand Drill or Powered Screwdriver)
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Hookswitch Wires to USB to Analog Audio Module Connections
1.969 [50.00]
Red Wire
HOOKSWITCH
ASSEMBLY
& WIRES TO SOCKET
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
http://www.cyberdata.net/
Quick Reference Quick Reference
Installation Quick Reference

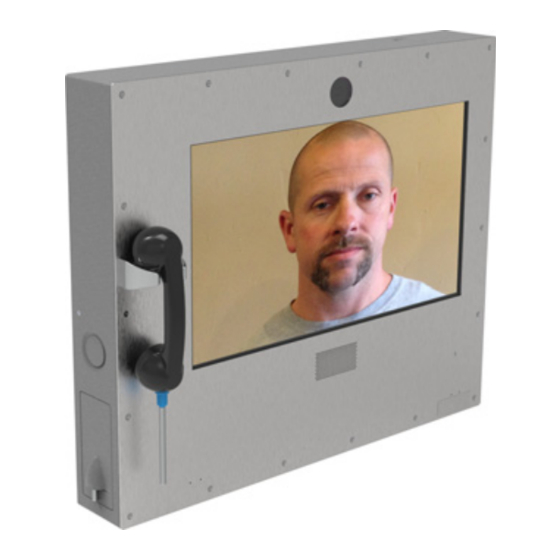

DX80 Secure Phone
011416
Install the DX80 Phone to Enclosure (on the other page).
FACTORY DISCONNECTED
***
RECONNECT BEFORE FASTEN
FACEPLATE TO BACKBOX
PLUG
Black Wire
USB - B Plug
Plug in to (J1)
SOCKET
USB - A Plug
Plug in to Connector Panel
on DX80
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: http://support.cyberdata.net/
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
RMA Status: http://support.cyberdata.net/
Warranty Information: http://support.cyberdata.net/
931352A
