CyberData 011460 Installation Quick Reference

Installation

Follow all appropriate electrical codes and use only approved electrical fittings for the installation.
1. Determine if power to operate the device will be provided via the Ethernet or if external power will be required. If external power is
required, install an Auxiliary Power Supply or the equivalent. See the
2. To maintain Ingress Protection / NEMA ratings, use appropriately rated hardware and waterproofing techniques.
3. Choose a wall location that is free of obstructions and permits space for conduit runs.
4. Ensure mounting can support 11.8 lbs (5.4kg) and any additional foreseeable load.
If using an auxiliary power supply, ensure it is unplugged during installation to avoid the danger of an accidental shock or
circuit damage.
5. Separate the faceplate from the housing by removing the two temporary, factory installed screws.
Note The handset and all electronics are attached to the front plate. The front cover may be separated from the back box by
disconnecting the harness plugs. Be careful when removing the faceplate. The circuit board is on the faceplate.
6. Drill or punch cable entrances as required. There are three drill dimples to assist.
7. Use the provided template to locate and drill holes for mounting screws.
8. Use ¼-inch or M8 screws to secure the unit to the wall.
9. Bring the Network cable into the enclosure through the conduit entrance and plug into the RJ-45 connector on the PCBA.
10. If using an alternate power supply connect the supply to the terminal block J9. Before doing so determine if power is supplied over
the Ethernet cable. See the Terminal Block Connections
11. Connect the on-board relay if utilized. See the Operations Guide for details.
12. Reconnect the faceplate harness.
13. Ensure all connections are secure.
14. Determine that the device is properly connected by pressing the RESET switch to announce the IP address (see the
Function Management (RESET) Switch section). LEDs on the RJ45 connector indicate network connection and activity. See the
Operations Guide for LED details.
15. Replace the faceplate.
16. Set up and configure if changes are required to the default settings.
17. Test the unit by calling to and from another device, preferably a VoIP device. See the Operations Guide for LED details.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
RMA Status:
Fax: 831-373-4193
Warranty Information:
http://www.cyberdata.net/
© 2018, CyberData Corporation, ALL RIGHTS RESERVED
Terminal Block Connections section.
section.
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931472A
The IP Endpoint Company

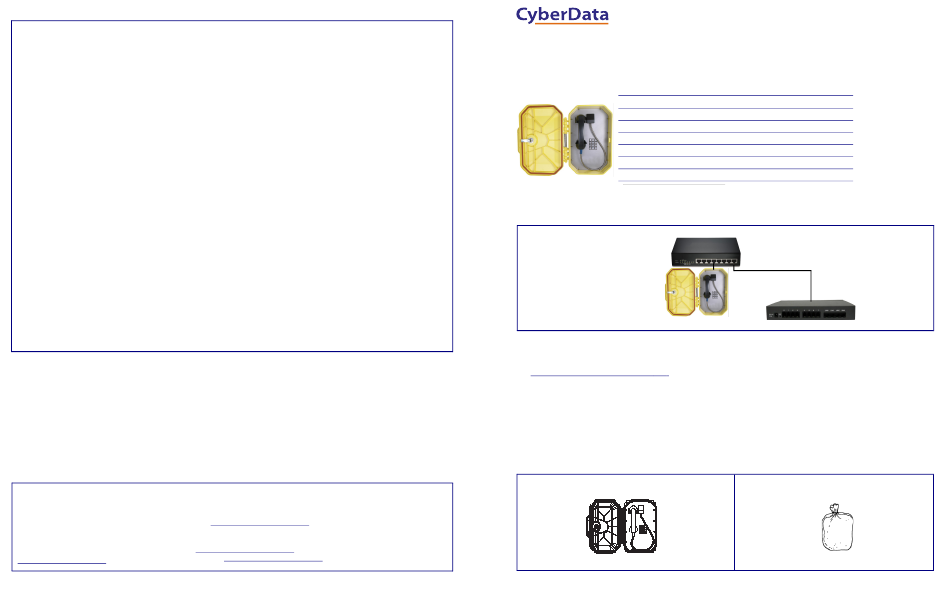

Typical System Installation

*More installation and mounting
options are available in the
Operations Guide.
Reset Test

Getting Started

• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011460/
• Create a plan for the locations of your SIP Weatherproof Keypad Phones.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
•
WARNING: This enclosure is not rated for any AC voltages!

Parts

Quick Reference Quick Reference
Installation Quick Reference
SIP Weatherproof Keypad Phone
SIP Compliant
011460
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Generic PoE Switch
SIP Weatherproof Keypad Phone
(1) SIP Weatherproof Keypad Phone
1 2 3
4 5 6
7 8 9
*
0 #
931472A
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP PBX Server
Accessory Kit
