6
add a Decoder unit. Up to 1024 encoders can be integrated with an unlimited amount of
displays.
For example, if your system requires 4 video sources to be distributed to 42 displays, you
may build a system using (4) KD-IP9222ENC, (42) KD-IP9222DEC, and the appropriate
IGMP network switch.
You must ensure that all units are fully configured before connecting all units to your network
switch. Refer to the Unit and System Setup using KD Wizard Utility section for more
information.
Product Compatibility:
Key Digital Enterprise AV product family consists of many different models. Not all models
are compatible together.
Model Function
KD-IP922ENC Encoder (Tx)
KD-IP922DEC Decoder (Rx)
KD-IP1080Tx Encoder (Tx)
KD-IP1080Rx Decoder (Rx)
KD-IP120Tx Encoder (Tx)
KD-IP120Rx Encoder (Tx)
KD-IP120POETx Decoder (Rx)
KD-IP120POERx Decoder (Rx)
KD-IP922ENC + KD-IP922DEC systems are not compatible with
KD-IP1080Tx + KD-IP1080Rx systems
Choosing the right network equipment:
Enterprise AV requires a Full Gigabit network switch with IGMP v2 (Internet Group
Management Protocol), and 8K Jumbo Frame support.
An up to date list of verified network switches is available on all Enterprise AV product pages
the Key Digital web page:
http://www.keydigital.com/Items.asp?ItemCode=KDIP922ENC&Company=KEY
Max Video Rack Mount Note
Res
UHD/4K KD-RKSMS12 Not compatible
with KD-IP1080/
KD-IP120 systems
1080p KD-RK120PLT Not compatible
with KD-IP922
systems
1080p KD-RK120PLT
Choosing the right control interface for Enterprise AV
Enterprise AV has a variety of control options, ensuring that the right interface is presented to
the end-user.

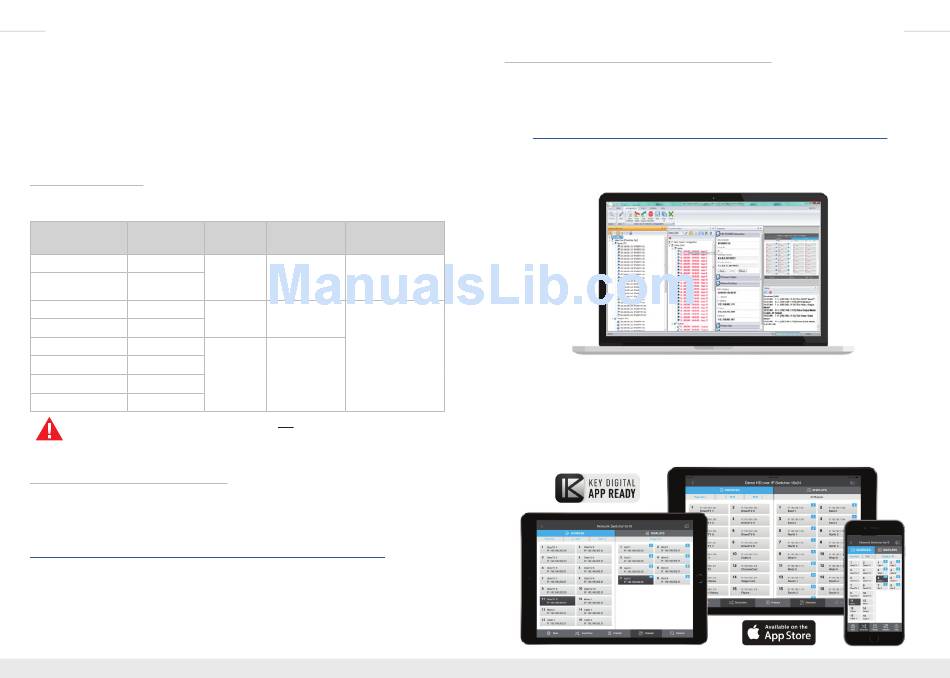

PC software
The KD Wizard software is downloaded from Enterprise AV product pages:
»
http://www.keydigital.com/Items.asp?ItemCode=KDIP922ENC&Company=KEY
The software can be used for control and configure Enterprise AV systems
»
Screen layout presets can be called or customized to provide a user-friendly interface
»
that does not give access to system configuration options.
Key Digital App
The Key Digital app for iOS devices is downloaded from Apple's App Store
»
The Key Digital app provides video switching control, preset creation, displays the
»
friendly names defined in system setup, and even has demo systems for a test drive.
The Key Digital app offers control of other Key Digital App Ready devices
»
Once launched, the Key Digital app auto-scans to find the Enterprise AV systems on
»
the local area network
7
