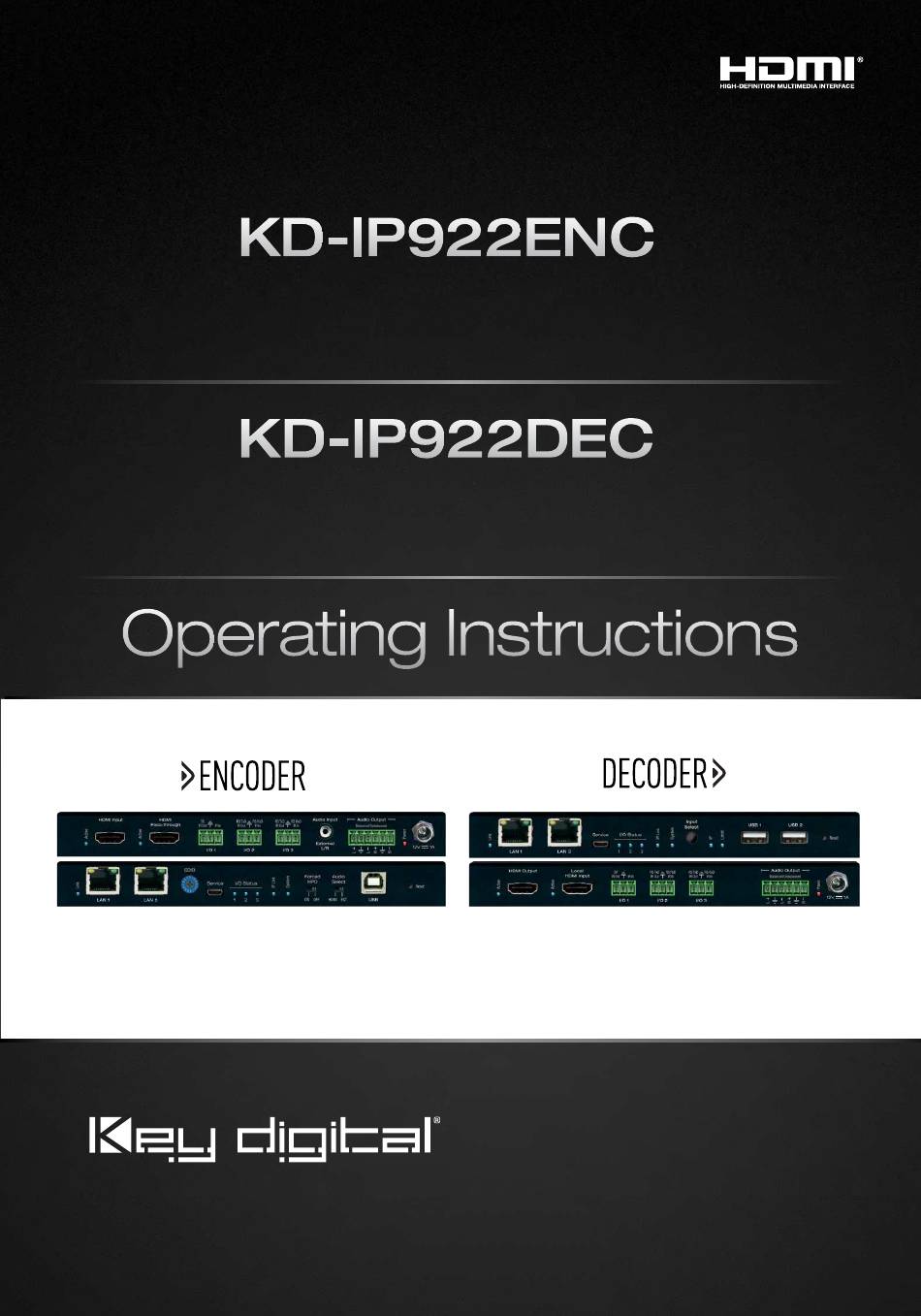

Key Digital KD-IP922ENC Operating Instructions Manual

Enterprise av over ip encoder/decoder
Hide thumbs Also See for KD-IP922ENC:
Table of Contents

Advertisement

Quick Links

Download this manual
™
Enterprise AV
over IP Encoder, supports 4K, 2 PoE ports LAN Switch, HDMI
Pass-through, Audio In, Audio De-Embedding with Lip-Sync & DSP, KVM/USB
™
Enterprise AV
over IP Decoder, supports 4K, 2 PoE ports LAN Switch,
Local HDMI Switching, Audio De-Embedding, Video Wall Processing, KVM/USB
KD-IP922ENC
KD-IP922DEC
The Experts in Digital Video Technology and Solutions
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-IP922ENC and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital KD-IP922ENC

Summary of Contents for Key Digital KD-IP922ENC

  • Page 1 Pass-through, Audio In, Audio De-Embedding with Lip-Sync & DSP, KVM/USB ™ Enterprise AV over IP Decoder, supports 4K, 2 PoE ports LAN Switch, Local HDMI Switching, Audio De-Embedding, Video Wall Processing, KVM/USB KD-IP922ENC KD-IP922DEC The Experts in Digital Video Technology and Solutions ™...

  • Page 2: Table Of Contents

    How to Contact Key Digital ........

  • Page 3: Introduction

    Introduction ™ ™ Enterprise AV Over IP Solutions - Key Digital’s Enterprise AV over IP Encoders and Decoders create expandable HDMI over IP systems that can be scaled to fit any commercial installation: › Digital Video Matrix › Digital Video Distribution System ›...
  • Page 4 HDMI HDMI HDMI KD-IP922DEC KD-IP922DEC KD-IP922DEC KD-IP922DEC TCP/IP TCP/IP Managed Gigabit Switch TCP/IP HDMI HDMI KD-IP922DEC TCP/IP KD-IP922ENC Digital Signage Digital Video Switcher HDMI Cable/Satellite KD-IP922ENC HDMI KD-IP922ENC Laptop 1 HDMI Managed Gigabit Switch KD-IP922ENC TCP/IP TCP/IP HDMI Laptop 2...
  • Page 5 Digital Video Extender Cable/Satellite KD-IP922DEC TCP/IP HDMI HDMI Up to 330 ft / 100 m @ 4K KD-IP922ENC KVM Matrix HDMI KD-IP922ENC PC 1 HDMI HDMI KD-IP922DEC KD-IP922ENC PC 2 Operator Station 1 HDMI Managed Gigabit Switch KD-IP922ENC PC 3...
  • Page 6 Key Features : Utilizes a managed gigabit network switch to enable video › Enterprise AV Over IP ™ distribution, matrix switching, and extension. Video Wall Processing: Encoder + Decoder systems create video walls with up › to 10V and 10H monitors ›...

  • Page 7: Considerations And Preparations

    › Considerations and Preparations Technology Overview: Key Digital’s Enterprise AV over IP products enable distribution, switching, and extension of HD Video and other media using managed network switches as the central hub of the system. Enterprise AV utilizes multicasting technology to broadcast (encode) the source media (ie HD video, audio, IR and RS-232 control, USB) to connected network devices.
  • Page 8 Refer to the Unit and System Setup using Key Digital Management Software ™ section for more information. Product Compatibility: Key Digital Enterprise AV product family consists of many different models. Not all models are compatible together. Model Function Max Video...
  • Page 9 The Key Digital app offers control of other Key Digital App Ready devices » Once launched, the Key Digital app auto-scans to find the Enterprise AV systems on » the local area network...
  • Page 10 » a rich user environment Drag and drop modular or fully custom GUI programming » iOS and Android controllers communicate with Key Digital MC gateway via IP for » control of Enterprise AV system. Email tech@keydigital.com for model information on...

  • Page 11: Connections, Leds, And Controls

    Connections, LEDs, and Controls IMPORTANT: Please ensure that each unit has been configured properly one-at-a-time before connecting multiple units to your network switch. KD-IP922ENC Encoder Unit: HDMI Input Used to connect video source » Compatible with latest HDMI technologies and resolutions up to 4096x2160 or »...
  • Page 12 » Support IGMP with connection IGMP supported network switch » Respective LED blinks during active network communication » See Key Digital’s Verified Network Switch document for list of network switches » verified to support Enterprise AV HD Over IP systems...
  • Page 13 EDID Control Rotary Used to select the desired EDID handshake provided to the connected video source » See EDID and Hot Plug Detection Control section for more information » Service Micro USB » Used as primary unit configuration method and for firmware updates. »...
  • Page 14 Local HDMI Input » Used to connect video source for local presentation, etc » Same supported video and audio formats as KD-IP922ENC HDMI Input connection » Selectable via Input Select button or via TCP/IP or RS-232 command » LED light illuminated when active HDMI signal link (TMDS) from source is present »...

  • Page 15: Rack Mounting Kd-Ip922

    Rack Mounting KD-IP922 Key Digital KD-SMS16 is a universal rack shelf that can hold up to 12 KD-IP922 units utilizing the side mounting screws. Do NOT exceed 12 units as doing so will result in unit damage by overheating. KD-SMS16 supports any Key Digital unit with side mounting screw spacing of 2.912”,...

  • Page 16: Edid And Hot Plug Detection Control

    EDID and Hot Plug Detection Control EDID Control EDID authentication is provided from the Encoder units to the connected input/source device. The EDID file (AKA handshake) is selected using the EDID Control rotary and provides a list of compatible video and audio formats as well as digital data informed the video source what is should output.

  • Page 17: Unit And System Setup Using Key Digital Management Software Pro

    Unit and System Setup using Key Digital ™ Management Software › IMPORTANT: Configure units after properly configuring your network switch according to Key Digital’s Verified Network Switch document. Document is found on the KD- IP922 product pages: http://www.keydigital.com/Items.asp?ItemCode=KDIP922ENC › Organize and label all units before configuring 1.
  • Page 18 1.0.8 d) Set desired Device name with up to 16 characters (ie “DirecTV 1”, “Conf Projector”) » Do not use special characters such as !, @, $, ? » e) Set desired System Group ID according to desired Input (encoder) or Output »...
  • Page 19 g) After all property updates are entered, press Update button in Unit Information » workspace 5. Repeat for each unit Note: For advanced configuration of features such as audio, control, and video wall please visit product pages for the latest guides: http://www.keydigital.com/Items.asp?ItemCode=KDIP922ENC 6.
  • Page 20 e) Choose CONFIGURATION » NEW SWITCHER » i) Enter desired system file name » ii) Recommended Starting Group ID is 1 (group ID for first Encoder) » (1) If multiple switcher systems exist on the same network, they should have »...
  • Page 21 g) After providing all Input/Output assignment, press Link button to finalize assignments » h) Press Save button » Press Load button to the virtual matrix file » i) At top of Device list (default) you may select ALL UNITS for automatic loading to »...
  • Page 22 All Units: Demo_23x23 7. Future software updates will include automatic unit and virtual matrix configuration...

  • Page 23: Video Wall Processing

    Video Wall Processing KD-IP922DEC decoders may be used to build video walls up to 10 displays wide and 10 displays high (10x10). A KD-IP922DEC unit is needed at each display. Configuring each Decoder’s Video Wall settings is achieved via TCP/IP, RS-232, or using the ›...
  • Page 24 For the Main Wall: › Video Wall ID = 01 » Number of horizontal displays = 6 » Number of vertical displays = 4 » Position of each display = 001 ~ 024 » For the sub video walls within the main video wall: ›...

  • Page 25: Tcp/Ip, Rs-232, And Ir Control

    Any unit-specific command received is forwarded to the appropriate unit » As with other Key Digital products, a full Help (set/listing of all possible commands to send the Enterprise AV system) and Status (get/feedback of current system status) is possible.
  • Page 26 -- SPO xxxx SIU : Set Output xxxx Video Input Up -- SPO xxxx SID : Set Output xxxx Video Input Down -- SPOASI yyyy : Set All Outputs to Video Input yyyy -- SPO A yy : Set All Outputs to Video Input yyyy -- yyAll.
  • Page 27 -- IP922DEC Audio Setup Command ( xxxx=[0~1024,A] A=All ) -- SPD xxxx AV yy : Set Output xxxx Audio Volume to yy=[00-99],U,D -- SPD xxxx AB yy : Set Output xxxx Audio Balance to yy=[00-40],U,D -- SPD xxxx AL yy : Set Output xxxx Audio Bass to yy=[00-24],U,D -- SPD xxxx AM yy : Set Output xxxx Audio Middle to yy=[00-24],U,D -- SPD xxxx AH yy : Set Output xxxx Audio Treble to yy=[00-24],U,D -- SPD xxxx AD yy : Set Output xxxx Audio Delay to yy=[00-99],U,D...
  • Page 28 Status command (STA) returns current state and settings of the unit: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- KD-IP922ENC F/W Version : BV1.00, MV1.00, AV1.00 -- Device Name = IP922ENC0001 , System ID = 0001 -- Power = ON, Fanel Button = Enable,...
  • Page 29 -- 0002: DN=IP922DEC0002 , MAC=60:89:B1:92:00:02, GID=0002, LINK=ON -- IP=192.168.002.102, IN=0002, OUT=ON , HPD=ON ,HCP=ON , DG=ON -- AV=99, AB=20, AL=12, AM=12, AH=12, AD=00, MUTE=OFF VW=OFF, VID=00, MWH=01, MWV=01, MWP=001, SWH=01, SWV=01 SWP=001, BWL=0001, BHL=0001, SWL=0001, SHL=0001, MSL=000 MSR=000, MSU=000, MSD=000, SUH=0000, SUV=0000, SRR=0 -- 0003: DN=IP922DEC0003 , MAC=60:89:B1:92:00:03, GID=0003, LINK=ON -- IP=192.168.002.103, IN=0003, OUT=ON...
  • Page 30 Use the numerical keypad for X, Y, and Z values below. X, Y, and Z values may be up to four button presses. ™ All unit setup should be completed in the Key Digital Management Software Pro software found on www.keydigital.com Command...
  • Page 31 Set Output x Audio Volume Up R1, X, Volume, UP Set Output x Audio Volume Down R1, X, Volume, DOWN Set Output x Audio Bass Freq. to yy, yy=[00-24],U,D R1, X, Bass, Y, Y Set Output x Audio Middle Freq. to yy, yy=[00-24],U,D R1, X, Middle, Y, Y Set Output x Audio Treble Freq.

  • Page 32: Multi-Function I/O Ports

    Multi-Function I/O Ports The three multi-function I/O ports can be configured as IR sensor, IR input, IR emitter, RS-232, voltage trigger, or voltage sensor. However, there are limitations per port: I/O Port IR Sensor IR Input IR Emitter Serial RS-232 Trigger I/O port configurations: ›...
  • Page 33 › IR output Compatible ports: 1, 2, and 3 » Supported signal level: 0V – 11.4V » Supported IR frequency: 20kHz – 100kHz » › RS-232 Compatible ports: 2 and 3 » Supported output signal level: 0V – 11.4V » Supported input signal level: -12V –...

  • Page 34: Keycode Open Api Specification

    KeyCode Open API Specification If a KD-IP922ENC or KD-IP922ENC port is configured for use in KeyCode Open API mode, the device will listen on a dedicated TCP port for that particular I/O port. The user application can then make a TCP connection to that port and send to and/or receive data from that I/O port.
  • Page 35 Configuration Commands Command Parameter Description Usage SetIRL: <port#>: Multi-function I/O port Set I/O Port to IR Sensor <port#> number Mode Ex: SetIRL:1\r SetIRO: <port#>: Multi-function I/O port Set I/O Port to Emitter Mode <port#> number Ex: SetIRO:3\r SetIRIN: <port#>: Multi-function I/O port Set I/O Port to IR Input Mode <port#>...
  • Page 36 TRO: <port#>: Multi-function I/O port Set I/O Port Trigger Output High number or Low <port#>, <level> <level>: HIGH, LOW Ex: TRO:2,HIGH GetRS: <port#>: Multi-function I/O port Get I/O Port RS-232 number Configuration <port#> Ex: GetRS:3\r GetTR: <port#>: Multi-function I/O port Get I/O Port Trigger State number <port#>...
  • Page 37 <stop bit> RS-232 stop bit setting 1 stop bit. 1.5: 1.5 stop bits. 2 stop bits. <parity> RS-232 parity type PAR_NONE: No parity. PAR_ODD: Odd parity. PAR_EVEN: Even parity. PAR_MARK: Parity force to 1(Mark). PAR_SPACE: Parity force to 0(Space). PAR_MULTIDROP: Multidrop mode.
  • Page 38 <set level> Trigger level to set HIGH: Change I/O port trigger output pin to high state. LOW: Change I/O port trigger output pin to low state. <CFG_RSP> Standard configuration command See table below: “Possible response Responses” <port mode> Port mode IRL: I/O port is IR Sensor mode.

  • Page 39: Specifications

    Specifications Technical: Inputs KD-IP922ENC (Each): 1 HDMI, 1 External Audio, 3 Multifunction Control » (IR, Bi-Directional RS-232, Trigger), 2 TCP/IP, 1 USB B Outputs KD-IP922ENC (Each): 1 HDMI, 1 Analog Audio » Inputs KD-IP922DEC (Each): 1 HDMI, 3 Multifunction Control (IR, Bi-Directional »...

  • Page 40: Important Product Warnings & Safety Instructions

    Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the ® Key Digital Warranty and risk damage to your unit and associated equipment.

  • Page 41: How To Contact Key Digital

    Please email any comments/questions about the manual to: E-mail: customersupport@keydigital.com › Warranty Information All Key Digital ® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm...
  • Page 42 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.

This manual is also suitable for:

Kd-ip922dec
