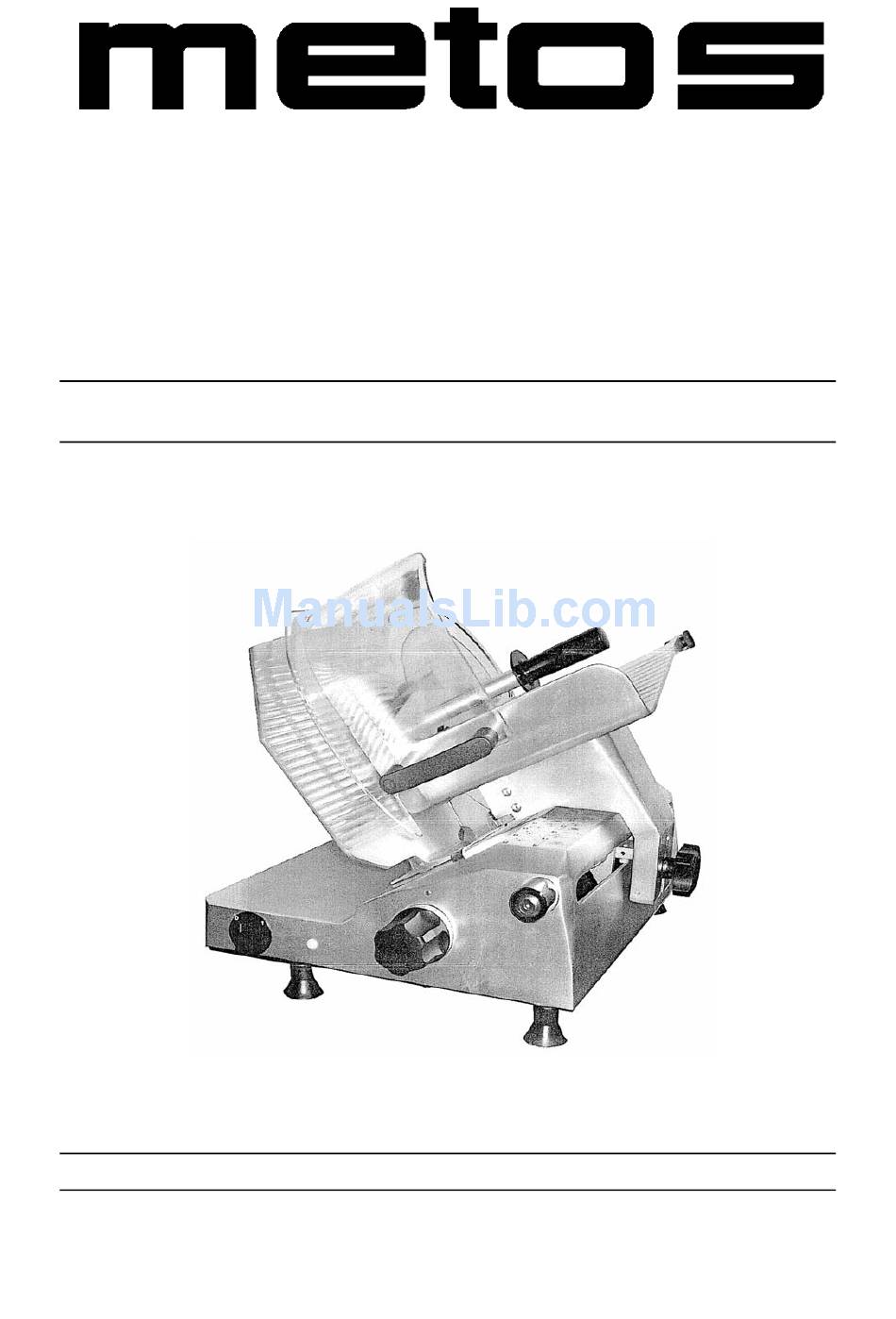

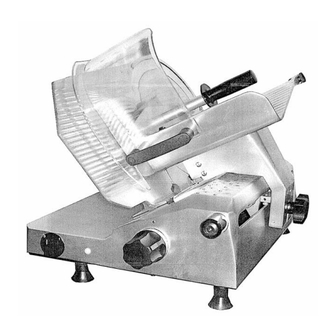

- Page 1 SLICING MACHINE MONDIAL 300 Installation and Operation Manual S/N: Rev.: 2.0...
- Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
- Page 4 26.7.2004 Rev. 2.0...
-
Page 5: Table Of Contents
26.7.2004 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relationship of the appliance and the manual .......... 1 2. Safety ......................2 2.1 Safe use of the appliance ....................2 3. - Page 6 26.7.2004 Rev.
-
Page 7: General
26.7.2004 Rev. 2.0 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. -
Page 8: Safety
26.7.2004 Rev. 2.0 Safety 2. Safety 2.1 Safe use of the appliance All operators involved in the present machine use, in installation, maintenance and serv- icing, must be skilled enough and must read this use manual carefully. It is important that not qualified persons or children do not use, even by chance, this ma- chine. -
Page 9: Functional Description
26.7.2004 Rev. 2.0 Functional description 3. Functional description 3.1 Application of the appliance The machine must be used to cut eatable products with sizes which are in relation to cut- ting capacity and with a weight that does not endanger its balance. -
Page 10: Operation Instructions
26.7.2004 Rev. 2.0 Operation instructions 4. Operation instructions 4.1 Before using the appliance Before product loading onto or unloading from the product holder (1:D), check that slice thickness control (1:B) is on “zero”position and that blade (1:L) is at a standstill. 4.2 Operation procedures Bring the product holder (1:D) at starting position, towards operator;... -
Page 11: After Use
26.7.2004 Rev. 2.0 Operation instructions Machine Parts Food pusher Blade cover Blade Separated blade sharpener Thumb guard Product holder support Blade guard Food pusher handle 4.3 After use 4.3.1 Cleaning Switch (1:A) off the machine and remove the power supply plug from the socket. Check that the slice thickness control (1:B) is on ”zero”... -
Page 12: Sharpening
26.7.2004 Rev. 2.0 Operation instructions 4.3.3 Sharpening Sharpen the blade only after cleaning it. Switch off the machine and turn the regulator knob placing it on thickness 18. Fit the sharpener to the regulator plate by inserting its pin in the corresponding hole and fix it by screwing the knob. - Page 13 26.7.2004 Rev. 2.0 Operation instructions...
-
Page 14: Installation
26.7.2004 Rev. 2.0 Installation 5. Installation 5.1 Unpacking the appliance Check that all the parts have been delivered, that the machine operates as intended,and that nothing has been damaged in transit. The machine supplier should be notified of any shortcomongs within eight days. 5.2 Installation The surface on which the machine is installed must be stable, not inclined, balanced, at a right height in order to obtain a correct working position. -
Page 15: Technical Specifications
26.7.2004 Rev. 2.0 Technical specifications 7. Technical specifications... - Page 16 Wiring diagram...
- Page 17 Installation drawing...
- Page 18 30 kg Blade diameter 300 mm Speed 50 Hz 300 rpm Transmission Belt Materials Housing Anodised aluminium Blade Hard chromed steel of the highest quality Safety system According to the standard EN 1974: 1998 Degree of protection IP33 300=MONDIAL 300...
