Residential/commercial series
Table of Contents

Advertisement

333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ
Symbol: NSSC
© NAPCO 2015
INTRODUCTION
The StarLink
Commercial / Residential Fire and Burglary
alarm capture radio communicators are fully supervised,
wireless digital two-way subscriber units supported by an
extensive nationwide wireless network.
compatible with most 12VDC alarm control panels (always
adhere to the documentation provided by the control panel
manufacturer). All can function as a backup to existing tel-
ephone lines, or as a primary communicator. In backup
mode, all units will automatically switch the communication
channel from the telephone line to the network when tele-
phone line trouble is detected. For Commercial installa-
tions, mount the unit to a single-, dual-, or three-gang elec-
trical box and route the wires through the back knockout(s),
or as specified by local codes. See WI2140 for program-
ming information.
The SLE Series radios use proprietary data-capture tech-
nology that captures the alarm report from the control panel
and transmits the alarm signals to the SLE Control Center;
the alarm signals are then forwarded to ANY central station
via Contact ID or Sur-Gard System II via TCP/IP. The SLE

STARLINK RADIO REPORTING PATH

The diagram below shows the transmission path of a
signal from the StarLink radio to the central station.
1. Signal from a Control Panel.
2. StarLink radio receives the signal transmission
(from the TIP an RING wires); sends RF signal
through the GPRS network operator.
3. Network Operator, part of the vendor system, a
section of the cellular spectrum.
4. SLE Control Center, receives and routes data.
5. Central Station.
StarLink
Radio
Control
Panel
(1)
(5)
CENTRAL
STATION
StarLink
SLE Commercial Series Alarm Communicators -- Installation Instructions
Residential / Commercial Series
Alarm Communicators
INSTALLATION INSTRUCTIONS
All models are
(
(
(
(
(
(
(
)
(
)
(
)
(
)
(2)
(3)
Network
Operator
(4)
StarLink Network
Operations Center
StarLink™ SLE
Control Center reports a trouble signal in the event that the
network does not receive the expected supervision signal
from the wireless communicator. In addition, all models
are powered directly from the control panel.
For Commercial Burglary installations, under the
armed condition, any loss of communication must be
treated as a Burglary Alarm at the Central Station.
The model names are as follows:

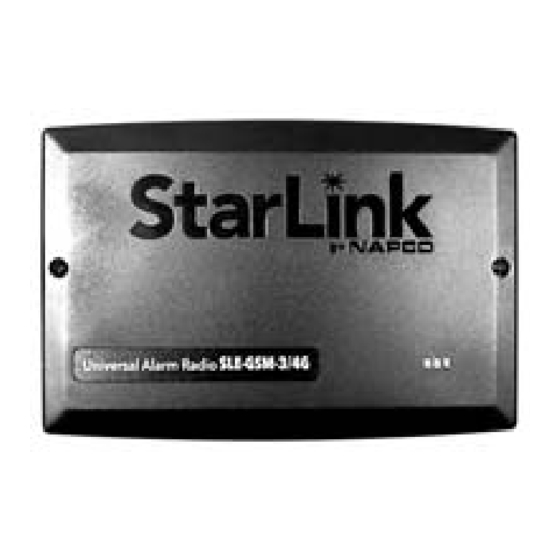

SLE-GSM-3/4G - Commercial / Residential Burglary and
Residential Fire 2G, 3G and 4G Network Compatible
GSM alarm capture Communicator, SIM card included.
Black plastic enclosure.
SLE-GSM-8D-3/4G - Commercial / Residential Burglary
and Residential Fire 2G, 3G and 4G Network Compati-
ble GSM alarm capture Communicator. Supports re-
mote downloading to the Gemini GEM-P400, GEM-
P800, GEMP-801, Express XP-400 and XP-600 series
control panels. SIM card included. Black plastic enclo-
sure.
SLE-CDMA - Commercial / Residential Burglary and Resi-
dential Fire Universal CDMA alarm capture Communica-
tor. Black plastic enclosure.
SLE-CDMA-8D - Commercial / Residential Burglary and
Residential Fire Universal CDMA alarm capture Com-
municator. Supports remote downloading to the Gemini
GEM-P400, GEM-P800, GEMP-801, Express XP-400
and XP-600 series control panels. Black plastic enclo-
sure.
SLE-GSM-FIRE - Commercial / Residential Fire and Bur-
glary 2G, 3G and 4G Network Compatible GSM alarm
capture Communicator. SIM card included. Red plastic
enclosure.
SLE-CDMA-FIRE - Commercial / Residential Fire and Bur-
glary CDMA radio in red plastic enclosure.

ADDITIONAL COMPONENTS

In addition to the models listed above, the following sub-
)
)
)
)
)
)
assemblies are available:
SLE-DLCBL - Download Cable, 6 feet.
SLE-ANTEXT - Extended antenna with 15 feet of cable.

AGENCY LISTINGS

 UL 864 Standard For Control Units and Accessories For Fire
Alarm Systems, 9th Edition
 UL 1610 Standard For Central-Station Burglar-Alarm Units
 UL 985 Standard For Household Fire Warning System Units
 UL 1023 Standard For Household Burglar-Alarm System
Units
CDMA models are Verizon
WI2120.a 04/15
®
Network Certified
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StarLink SLE and is the answer not in the manual?

Questions and answers

Summary of Contents for NAPCO StarLink SLE

  • Page 1 (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2015 WI2120.a 04/15 INTRODUCTION Control Center reports a trouble signal in the event that the network does not receive the expected supervision signal ™...
  • Page 2: Specifications

    SPECIFICATIONS TB1: PWR (+12V) The following specifications apply to all StarLink radio mod- (Refer to section "STEP 4: APPLY POWER") els unless otherwise stated: TB2: PWR GND (–) (Refer to section "STEP 4: APPLY POWER") Electrical Ratings for +12V (all models powered by the TB3: PGM1 (–): Open collector output.
  • Page 3: Led Descriptions

    TB12: PANEL RING: See wiring diagrams. TB13: PANEL TIP: See wiring diagrams. Note: TB14-TB17 no connections permitted by UL. TB14: RTS (R): See TB17 below. TB15: PANEL TX (B): See TB17 below. TB16: PANEL RX (G): See TB17 below. RED DIAGNOSTIC LED (Labeled "D7") TB17: CTS (Y): No connections permitted.
  • Page 4: Network Coverage

    Normal Standby Condition:  Blinks on momentarily every 10 seconds: Unit is PRIMARY AND BACK-UP REPORTING in standby waiting for an alarm to report. The StarLink radio can function as a primary wireless Processing Alarm Conditions: communicator, in cases where there are no telephone ...
  • Page 5 locations have been shown to have a detrimental effect STARLINK RADIO RELATED EVENT on signal strength. REPORT CODES (Contact ID by default)  A fair amount of care may be required to mount the ra- dio so as to achieve an optimal RF path. The installer CONTACT ID PULSE EVENT...
  • Page 6 StarLink GSM Radio Number, then click Signal Log. (+) of a zone dedicated to monitoring the radio status. Should be programmed on Napco control panels as IMPORTANT: Verify that the signals transmitted by the Day Zone, but be programmed to sound locally and StarLink radio have been properly received by your central NOT activate the bell.
  • Page 7 The radio must also Supervision Time Schedule Considerations report this trouble to the central station. With Napco control If a status change (alarm trouble, etc.) is transmitted, the panels, program a dedicated zone for Day Zone, Mini- radio supervision timer is restarted.
  • Page 8 Wiring Diagram for PRIMARY Reporting Configuration GEM-P400 / GEM-P800 / Express XP-400 / Express XP-600 Control Panels (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD (–) AUX POWER (–) (TIP) (RING) ZONE (+) DEDICATED TO GPRS SUPERVISION PANEL...
  • Page 9 Wiring Diagram for PRIMARY Reporting Configuration GEM-P400 / GEM-P800 / Express XP-400 / Express XP-600 Control Panels (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD 16VAC Transformer (–) AUX POWER (TIP) (–) (RING) 16VAC ZONE (+) DEDICATED TO (PROGRAMMED FOR)
  • Page 10 Wiring Diagram for BACKUP Reporting Configuration GEM-P400 / GEM-P800 / Express XP-400 / Express XP-600 Control Panels 16VAC Transformer (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD TO TELCO RING RJ31X (TELCO) (PHONE) AUX POWER (TIP) (TIP) (RING) (RING) (–) 16VAC Optional: When Power HOME Supply SLE-ULPS-R is not...
  • Page 11 Wiring Diagram for PRIMARY Reporting Configuration GEM-P801 Control Panel (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD TELCO T300 AUX POWER (–) ZONE (+) DEDICATED RJ31X TO GPRS SUPERVISION NON-POLARIZED All connections are NON-POLARIZED power limited ex- cept AC Mains, Tel- co and battery ter-...
  • Page 12 Wiring Diagram for PRIMARY Reporting Configuration GEM-P801 Control Panel (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD 16VAC Transformer TELCO T300 AUX POWER (–) 16VAC Optional: When Power Supply SLE-ULPS-R is not used, connect Panel Aux Power to StarLink terminals 1 and 2 (observing polarity) RJ31X...
  • Page 13 Wiring Diagram for BACKUP Reporting Configuration GEM-P801 Control Panel 16VAC Transformer (CONTROL PANEL HOUSING) CONTROL PANEL PC BOARD TO TELCO TELCO RING T300 RJ31X AUX POWER (–) 16VAC Optional: When Power Supply SLE-ULPS-R is not used, connect Panel Aux Power to StarLink terminals 1 and 2 HOME (observing polarity)
  • Page 14 Wiring Diagram for PRIMARY Reporting Configuration GEMC-32, GEMC-96, GEMC-128 and GEMC-255 Control Panels (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) GEMC Control Panel PC Board RJ31X RING RJ31X RING SEE WIRING DIAGRAM AND WI FOR ADDITIONAL INFORMATION MONITOR ZONE (+) DEDICATED TO GPRS...
  • Page 15 Wiring Diagram for PRIMARY Reporting Configuration GEM-X255 / GEM-P9600 / GEM-P3200 Control Panels (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) Control Panel PC Board AUX POWER TEL LINE PHONE (–) RING TIP RING 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32...
  • Page 16 Wiring Diagram for BACKUP Reporting Configuration GEM-X255 / GEM-P9600 / GEM-P3200 Control Panels (CONTROL PANEL HOUSING) Control Panel PC Board 16VAC Transformer Summary of connections:  RJ31X RED to StarLink module 10 TO TELCO  RJ31X GREEN to StarLink module 11 ...
  • Page 17 Wiring Diagram for PRIMARY Reporting Configuration GEM-816 / GEM-P1632 / GEM-P1664, Freedom F-64 Control Panels (Use when telephone line is NOT available) (CONTROL PANEL HOUSING) Control Panel PC Board TELCO PHONE RING TIP RING 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 ZONE (+)
  • Page 18 Wiring Diagram for BACKUP Reporting Configuration GEM-816 / GEM-P1632 / GEM-P1664, Freedom F-64 Control Panels 16VAC (CONTROL PANEL HOUSING) Transformer Control Panel PC Board Summary of connections:  RJ31X RED to StarLink module 10 TO TELCO  RJ31X GREEN to StarLink module 11 Optional: When Power Supply SLE-ULPS-R is not ...
  • Page 19 Housing Template (1:1 Scale) ™ StarLink SLE Commercial Series Alarm Communicators -- Installation Instructions...
  • Page 20 Close (radio remembers last reporting. Panel reports via ALARM ALARM ALARM Linecut state of panel for Napco panels dialer capture but Linecut re- when used with local download ports via an input on radio. cable). Requires two 10K EOLRs. Three off normal conditions...
  • Page 21 Notes ™ StarLink SLE Commercial Series Alarm Communicators -- Installation Instructions...
  • Page 22 Notes ™ StarLink SLE Commercial Series Alarm Communicators -- Installation Instructions...
  • Page 23 Notes ™ StarLink SLE Commercial Series Alarm Communicators -- Installation Instructions...
  • Page 24 In no event shall NAPCO be liable for an amount months following the date of manufacture. NAPCO in excess of NAPCO's original selling price of the...
