NAPCO StarLink SLE-LTEVI Series Installation Instructions Manual

333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2019

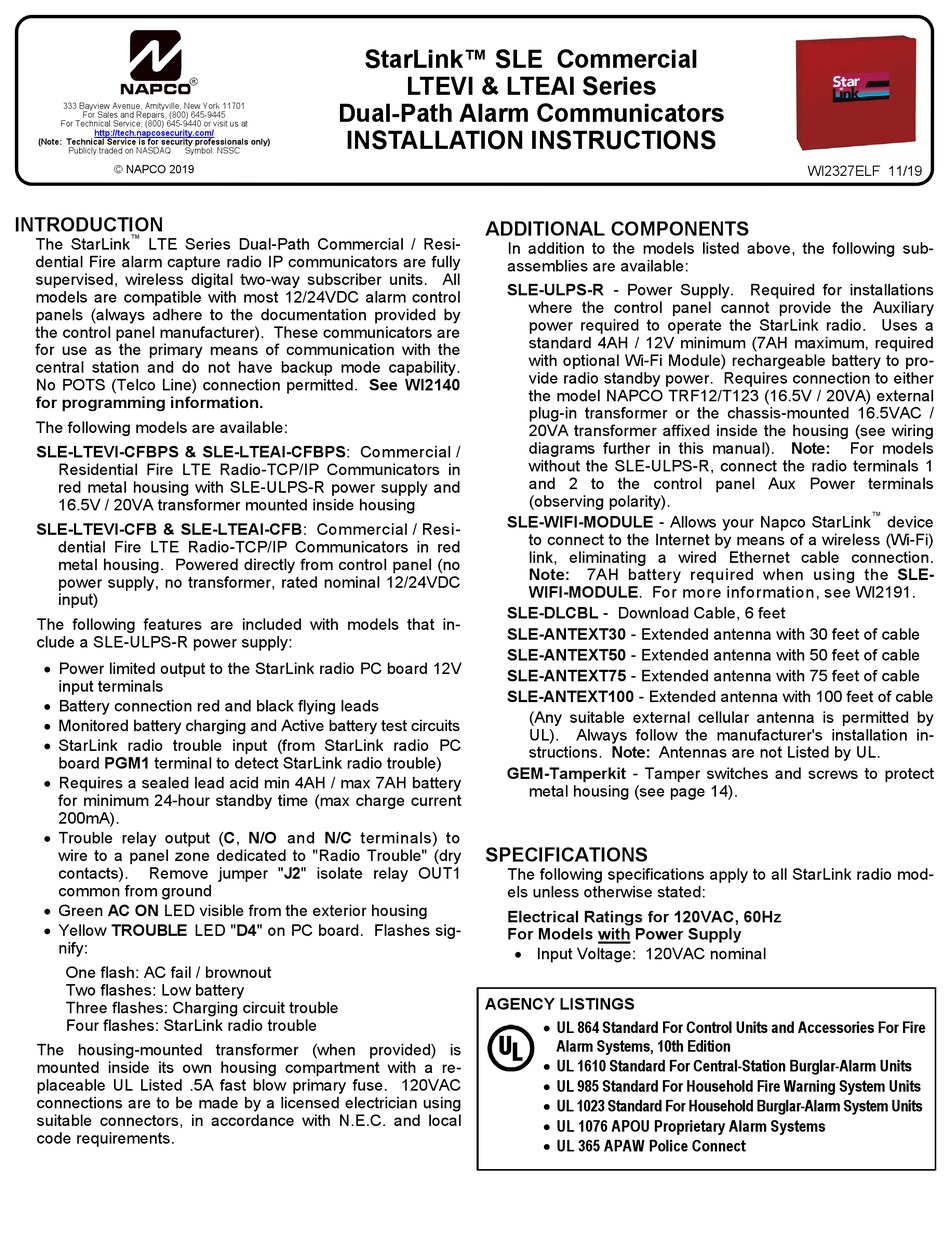

INTRODUCTION
™
The StarLink LTE Series Dual-Path Commercial / Resi-
dential Fire alarm capture radio IP communicators are fully
supervised, wireless digital two-way subscriber units. All
models are compatible with most 12/24VDC alarm control
panels (always adhere to the documentation provided by
the control panel manufacturer). These communicators are
for use as the primary means of communication with the
central station and do not have backup mode capability.
No POTS (Telco Line) connection permitted. See WI2140
for programming information.
The following models are available:

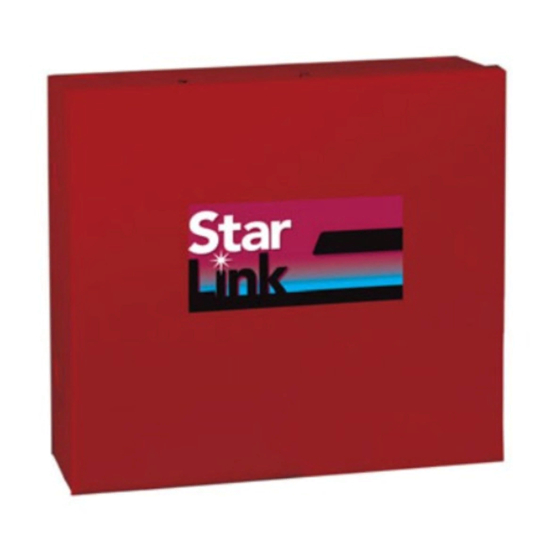

SLE-LTEVI-CFBPS & SLE-LTEAI-CFBPS: Commercial /
Residential Fire LTE Radio-TCP/IP Communicators in
red metal housing with SLE-ULPS-R power supply and
16.5V / 20VA transformer mounted inside housing
SLE-LTEVI-CFB & SLE-LTEAI-CFB: Commercial / Resi-
dential Fire LTE Radio-TCP/IP Communicators in red
metal housing. Powered directly from control panel (no
power supply, no transformer, rated nominal 12/24VDC
input)
The following features are included with models that in-
clude a SLE-ULPS-R power supply:
 Power limited output to the StarLink radio PC board 12V
input terminals
 Battery connection red and black flying leads
 Monitored battery charging and Active battery test circuits
 StarLink radio trouble input (from StarLink radio PC
board PGM1 terminal to detect StarLink radio trouble)
 Requires a sealed lead acid min 4AH / max 7AH battery
for minimum 24-hour standby time (max charge current
200mA).
 Trouble relay output (C, N/O and N/C terminals) to
wire to a panel zone dedicated to "Radio Trouble" (dry
contacts). Remove jumper "J2" isolate relay OUT1
common from ground
 Green AC ON LED visible from the exterior housing
 Yellow TROUBLE LED "D4" on PC board. Flashes sig-
nify:
One flash: AC fail / brownout
Two flashes: Low battery
Three flashes: Charging circuit trouble
Four flashes: StarLink radio trouble
The housing-mounted transformer (when provided) is
mounted inside its own housing compartment with a re-
placeable UL Listed .5A fast blow primary fuse. 120VAC
connections are to be made by a licensed electrician using
suitable connectors, in accordance with N.E.C. and local
code requirements.
™
StarLink SLE Commercial LTEVI & LTEAI Series Dual-Path Alarm Communicators -- Installation Instructions
StarLink™ SLE Commercial
LTEVI & LTEAI Series
Dual-Path Alarm Communicators
INSTALLATION INSTRUCTIONS
ADDITIONAL COMPONENTS
In addition to the models listed above, the following sub-
assemblies are available:
SLE-ULPS-R - Power Supply. Required for installations
SLE-WIFI-MODULE - Allows your Napco StarLink
SLE-DLCBL - Download Cable, 6 feet
SLE-ANTEXT30 - Extended antenna with 30 feet of cable
SLE-ANTEXT50 - Extended antenna with 50 feet of cable
SLE-ANTEXT75 - Extended antenna with 75 feet of cable
SLE-ANTEXT100 - Extended antenna with 100 feet of cable
GEM-Tamperkit - Tamper switches and screws to protect
SPECIFICATIONS
The following specifications apply to all StarLink radio mod-
els unless otherwise stated:
Electrical Ratings for 120VAC, 60Hz
For Models with Power Supply
 Input Voltage: 120VAC nominal
AGENCY LISTINGS
where the control panel cannot provide the Auxiliary
power required to operate the StarLink radio. Uses a
standard 4AH / 12V minimum (7AH maximum, required
with optional Wi-Fi Module) rechargeable battery to pro-
vide radio standby power. Requires connection to either
the model NAPCO TRF12/T123 (16.5V / 20VA) external
plug-in transformer or the chassis-mounted 16.5VAC /
20VA transformer affixed inside the housing (see wiring
diagrams further in this manual). Note:
without the SLE-ULPS-R, connect the radio terminals 1
and 2 to the control panel Aux Power terminals
(observing polarity).
to connect to the Internet by means of a wireless (Wi-Fi)
link, eliminating a wired Ethernet cable connection.
Note: 7AH battery required when using the SLE-
WIFI-MODULE. For more information, see WI2191.
(Any suitable external cellular antenna is permitted by
UL). Always follow the manufacturer's installation in-
structions. Note: Antennas are not Listed by UL.
metal housing (see page 14).
UL 864 Standard For Control Units and Accessories For Fire
Alarm Systems, 10th Edition
 UL 1610 Standard For Central-Station Burglar-Alarm Units
 UL 985 Standard For Household Fire Warning System Units
UL 1023 Standard For Household Burglar-Alarm System Units
UL 1076 APOU Proprietary Alarm Systems
UL 365 APAW Police Connect
WI2327ELF 11/19
For models
™
device
1
