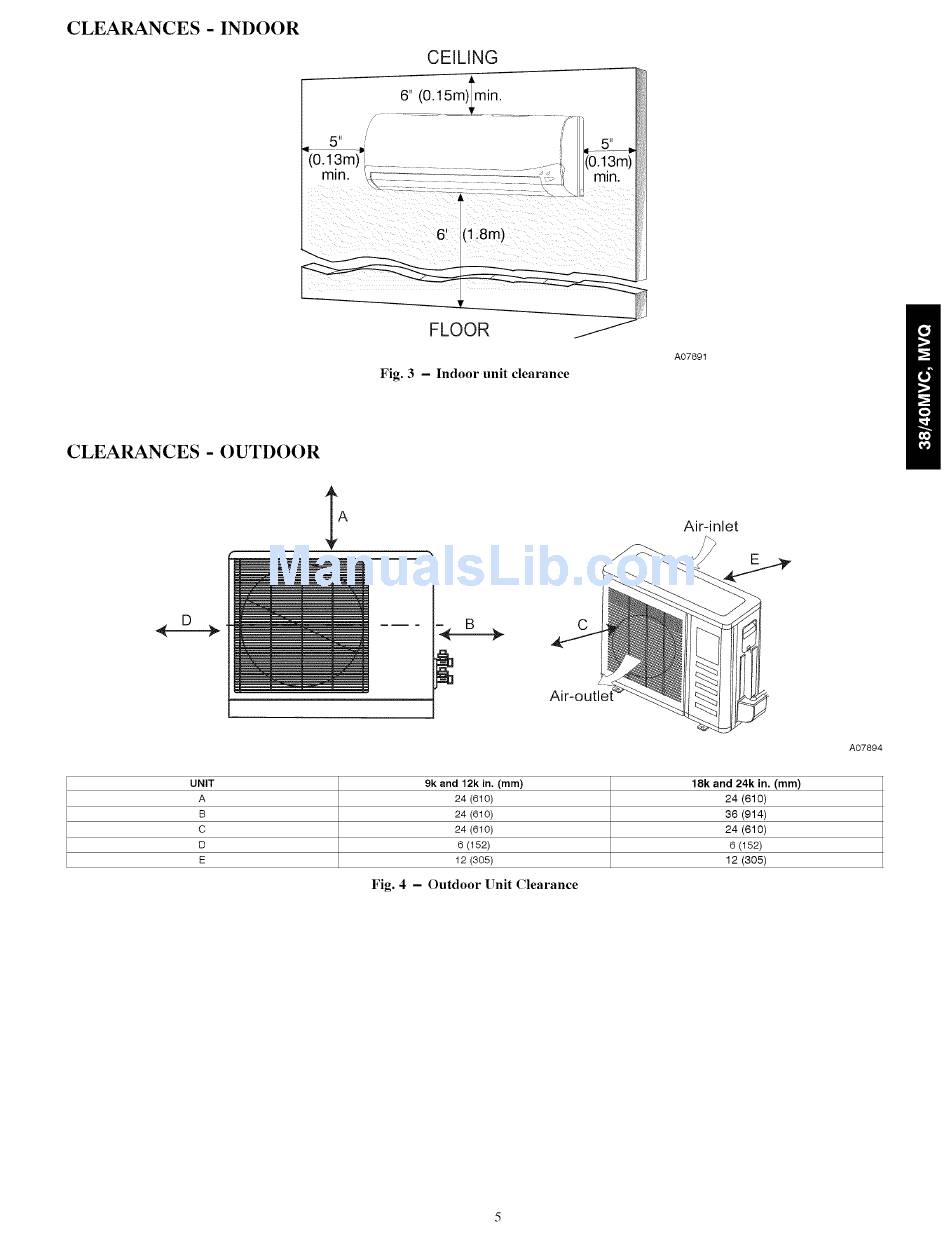

CLEARANCES
- INDOOR
CEILING
J-6"(0.15m!._mi
n.
/
6'
(i 8m)
FLOOR
Fig. 3 - Indoor unit clearance
A07891
CLEARANCES
- OUTDOOR
IA
Air-inlet
C
Air-outle
UNIT
9k and 12k in. (mm)
18k and 24k
in. (mm)
A
24 (610)
24 (610)
B
24 (610)
36 (914)
C
24 (610)
24 (610)
D
6 (152)
6 (152)
E
12 (305)
12 (305)
Fig. 4 -
Outdoor
Unit Clearance
A07894
