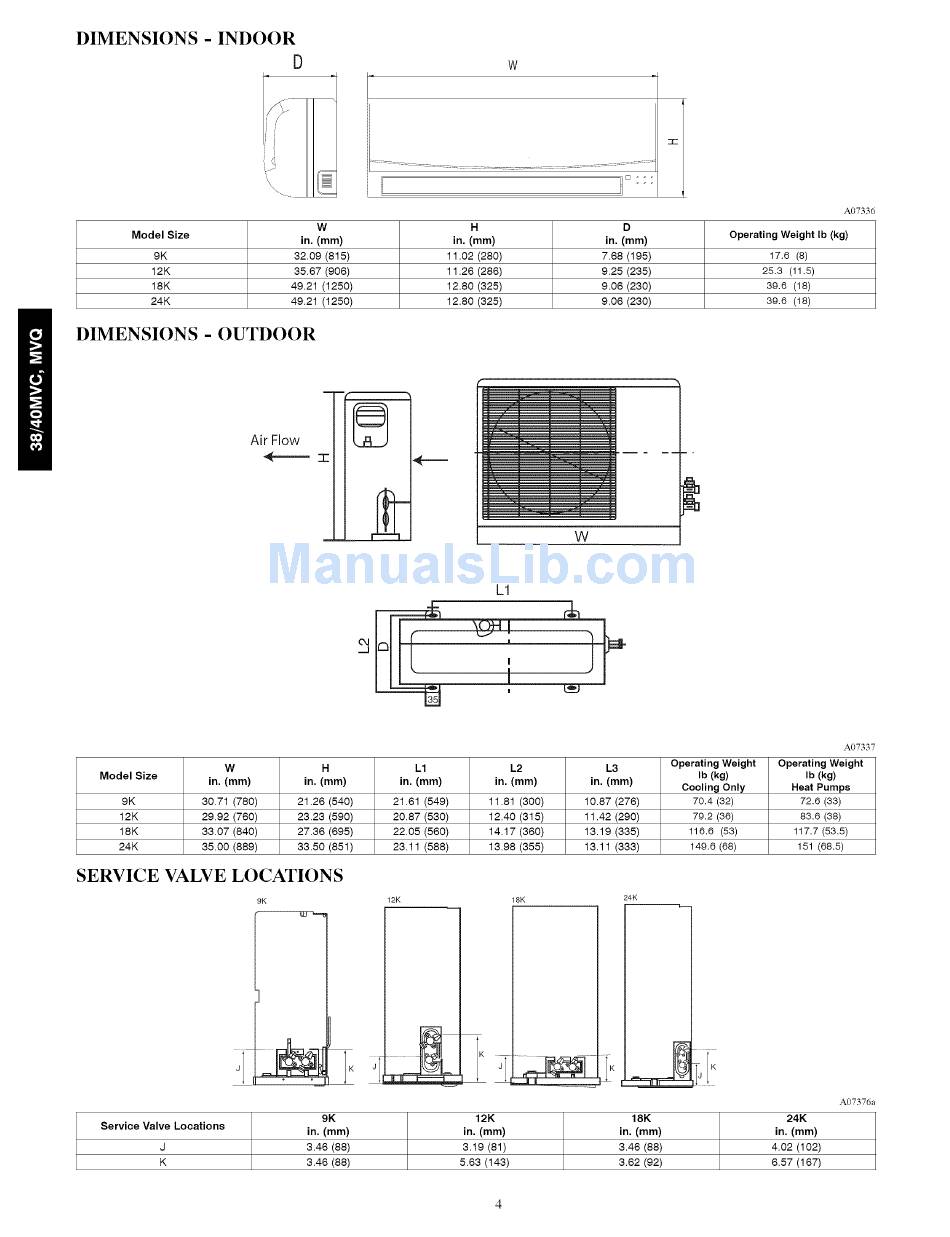

DIMENSIONS
- INDOOR
D
A07336
W
H
D
Model Size
in. (mm)
in. (mm)
in. (mm)
Operating Weight Ib (kg)
9K
32.09 (815)
11.02 (280)
7.68 (195)
17.6 (8)
12K
35.67 (906)
11.26 (286)
9.25 (235)
25.3
(11.5)
18K
49.21 (1250)
12.80 (325)
9.06 (230)
39.6 (18)
24K
49.21 (1250)
12.80 (325)
9.06 (230)
39.6 (18)
DIMENSIONS
- OUTDOOR
i ,_======_i
I IH==
lllll
W
L1
4-
_k
I
r========4._|
_
m
s olb
L.
W
H
L1
L2
L3
Operating
Weight
Model
Size
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
Ib (kg)
Cooling
Only
9K
30.71
(780)
21.26
(540)
21.61
(549)
11.81
(300)
10.87
(276)
70.4
(32)
12K
29.92
(760)
23.23
(590)
20.87
(530)
12.40
(315)
11.42
(290)
79.2
(36)
18K
33.07
(840)
27.36
(695)
22.05
(560)
14.17
(360)
13.19
(335)
116.6
(53)
24K
35.00
(889)
33.50
(851)
23.11
(588)
13.98
(355)
13.11
(333)
149.6
(68)
SERVICE
VALVE
LOCATIONS
9K
12K
18K
24K
A07337
Operating Weight
Ib (kg)
Heat Pumps
72.6 (33)
83.6 (38)
117.7 (53.5)
151 (68.5)
.....
I1_tl .....
IK
IIIt_]j K
9K
12K
18K
24K
Service
Valve Locations
in. (mm)
in. (mm)
in. (mm)
in. (mm)
J
3.46 (88)
3.19 (81)
3.46 (88)
4.02 (102)
K
3.46 (88)
5.63 (143)
3.62 (92)
6.57 (167)
A07376a
