Carrier 40MVC Installation Instructions Manual page 2

Part
Name of Part
No.
1 Mounting Plate
2 Mounting Screw ST3.9x25-C-H
3 Anchor
4 Remote Control
5 Remote Control Holder
6 Mounting Screw B ST2.0xlO-C-H
PARTS LIST
Part
Qty No.
1 1
8 2
8 3
1 4
1 5
2 6
Name of Part Qty
Mounting Plate 1
Mounting Screw A ST3.9x25-C-H 8
Anchor 8
Remote Control 1
Remote Control Holder 1
Mounting Screw B ST2.0xlO-C-H 2
Remote Control
Mounting screw B
ST2.9X10-C-H
Remote control
Air outlet
Remote control holder
Air Inlet
__ Air Inlet
Remote control holder
f
Loop the
connecting
Loop the connectinc Remove the water receiver first
cab e. cable, before connectngthe
pipes.
A07334a

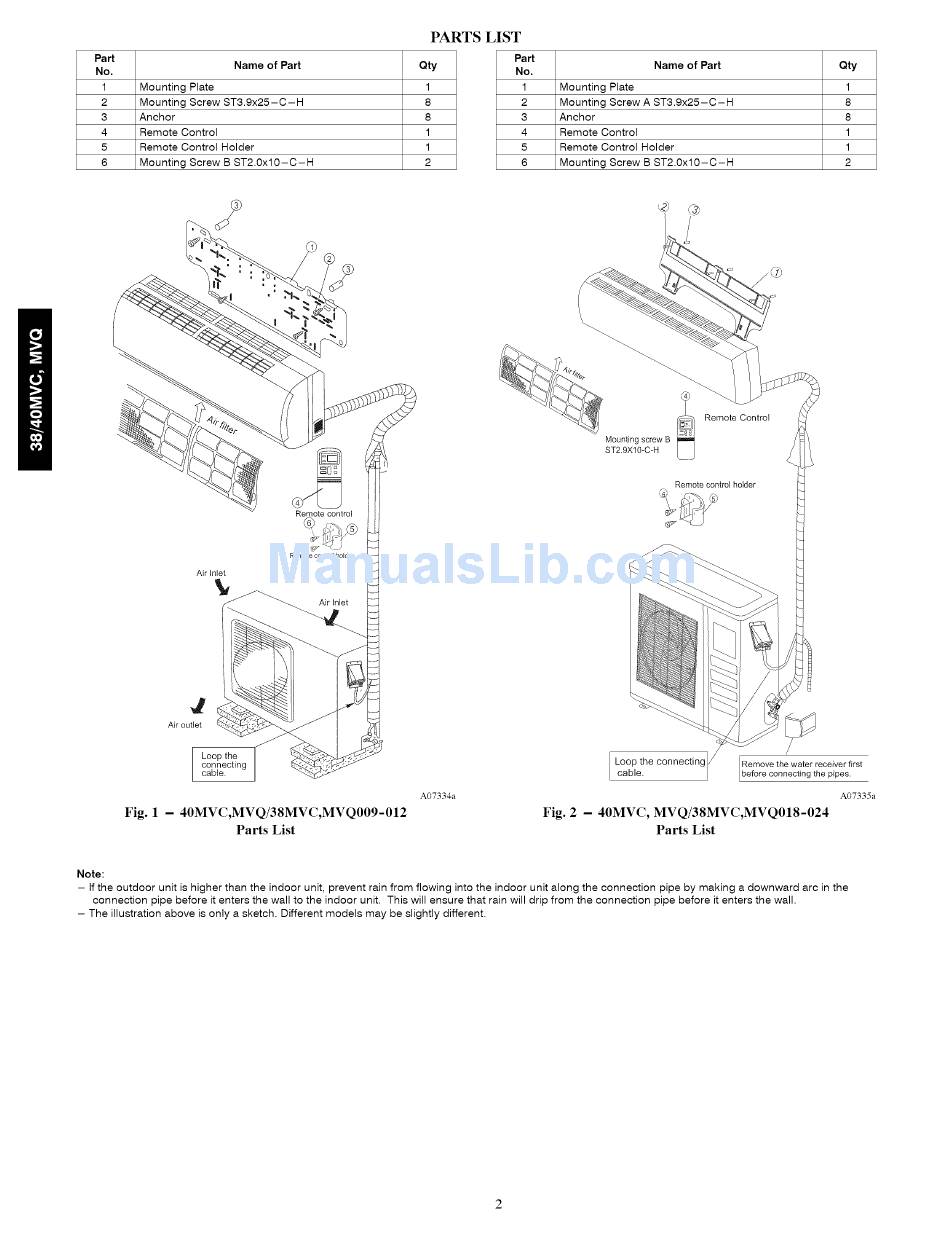

Fig. 1 - 40MVC,MVQ/38MVC,MVQ009-012
Parts List
A07335a
Fig. 2 - 40MVC, MVQ/38MVC,MVQ018-024
Parts List
Note:
- If the outdoor unit is higher than the indoor unit, prevent rain from flowing into the indoor unit along the connection pipe by making a downward arc in the
connection pipe before it enters the wall to the indoor unit. This will ensure that rain will drip from the connection pipe before it enters the wall.
- The illustration above is only a sketch. Different models may be slightly different.
