Carrier 40MAQ Owner's Manual

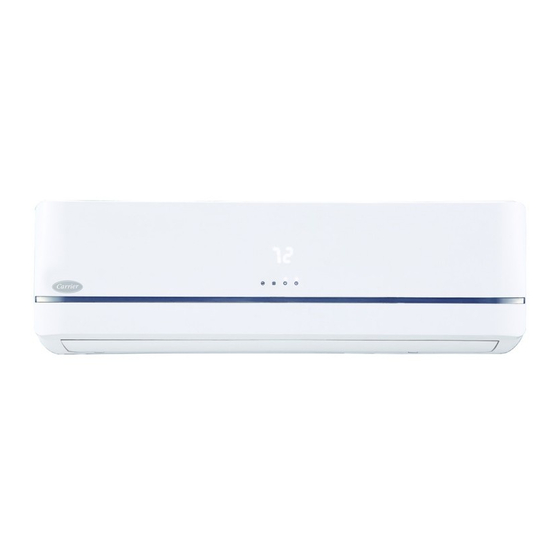

High wall ductless split system
Hide thumbs Also See for 40MAQ:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction and Installation Manual
40MAQ
High Wall Ductless Split System
Sizes 09 to 36
GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL FUNCTIONS
CLEANING, MAINTENANCE AND TROUBLESHOOTING
Please read this Owner's Information Manual carefully before installing and using this appliance
and keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new equipment in the
spaces provided. This information, along with the installation data and dealer contact information,
will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # ___________________________________
Serial # ___________________________________
INSTALLATION INFORMATION
Date Installed _____________________________
Owner's Manual

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTE TO EQUIPMENT OWNER:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DEALERSHIP CONTACT INFORMATION
Company Name: _________________________________
Address:_________________________________________
________________________________________________
Phone Number:__________________________________
Technician Name:_________________________________
________________________________________________
PAGE
2
2
3
4
5
6
8 - - 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40MAQ and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier 40MAQ

Summary of Contents for Carrier 40MAQ

  • Page 1 40MAQ High Wall Ductless Split System Sizes 09 to 36 Owner’s Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY ................. . .
  • Page 2 A NOTE ABOUT SAFETY GENERAL The high wall fan coil unit provides quiet, maximum comfort. In Any time you see this symbol in manuals, instructions and on addition to cooling and/or heating, the high wall fan coil unit the unit, be aware of the potential for personal injury. There are matched with an outdoor condensing unit filters and dehumidifies three levels of precaution: the air in the room to provide maximum comfort.
  • Page 3 PART NAMES ■ Indoor 1. Front panel 2. Air Inlet 3. Display 4. Air Filter 5. Horizontal airflow grille 6. Vertical air flow louver 7. Interconnecting tubing 8. Control and power wiring to indoor unit 9. Service valves 10. Remote control 11.
  • Page 4 DISPLAY PANELS SELECTED TEMPERATURE / SELF-DIAGNOSTIC CODES indicator DEFROST indicator Illuminates when the coil is warming up to prevent cold blow or when the unit goes into defrost mode. OPERATION indicator This indicator flashes once per second after power is on and illuminates when the unit is in operation.
  • Page 5 REMOTE CONTROL ON/OFF SH ORT MODE TIMER ON T EMP FA N TIMER OFF SLEEP SWI NG DI RECT TURBO Fig. 5 - - Remote Control Remote Control Operation - - Quick Start CAUTION NOTE: When transmitting a command from the remote control to the unit, be sure to point the control toward the right side of the EQUIPMENT DAMAGE HAZARD unit.
  • Page 6 REMOTE CONTROL FUNCTIONS The horizontal louvers (Vertical Swing) can be adjusted by pressing the DIRECT button in the remote control and can be set Pressing the On/Off Button to be stationary or moving continuously pressing the SWING When the air conditioner is not in operation, the remote control button.
  • Page 7 UNIT OFF Self Clean Mode a. Set the TIMER off as described in the UNIT ON section. Press the “Self Clean” button to activate or deactivate the The TIMER display on the unit illuminates and the unit self- -cleaning function. Under this function, the air conditioner remains off.
  • Page 8 CLEANING, MAINTENANCE AND TROUBLESHOOTING Indoor Unit Front Panel CAUTION To clean the front panel on the indoor unit, wipe the outside with a soft, dry cloth. ELECTRICAL SHOCK HAZARD Preparing for Extended Shutdown Period Failure to follow this caution may result in personal injury Clean the filters and reposition them in the unit.
  • Page 9 Table 1—Periodic Maintenance INDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Air Filter* Replace Carbon Filter Change Remote Control Batteries OUTDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Outdoor Coil from Outside Clean Outdoor Coil from Inside† Blow Air Over Electric Parts†...
  • Page 10 Catalog No: OM38---40MAQ---04 Copyright 2016 Carrier Corporation S 7310 W. Morris St. S Indianapolis, IN 46231 Edition Date: 01/16 Replaces: OM38--- 40MA--- 03 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
