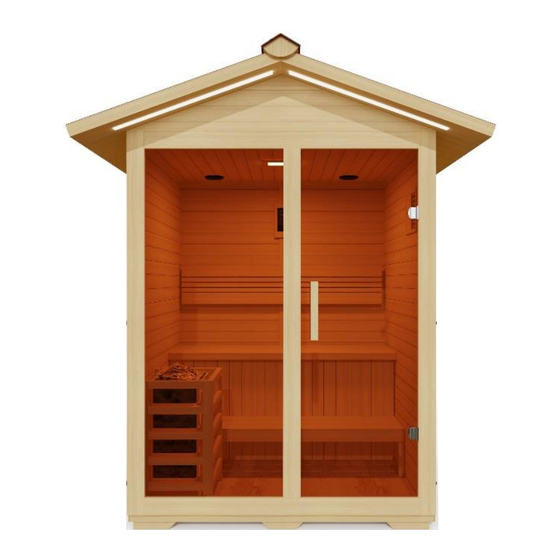

GDI-8103-01
3-Person Steam Saunas
Owner's Manual
SAUNA IS FOR OUTDOOR USE
120VAC 15AMP Outlet Required
240VAC 30AMP Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Follow your local codes and ordinances. The heater must be installed by
a certified licensed electrician per the manufacturer's manual. The heater must be
installed per the electrical code in your area with reference to the breaker and wire
sizes. Models are subject to change.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-8103-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoldenDesigns GDI-8103-01

Summary of Contents for GoldenDesigns GDI-8103-01

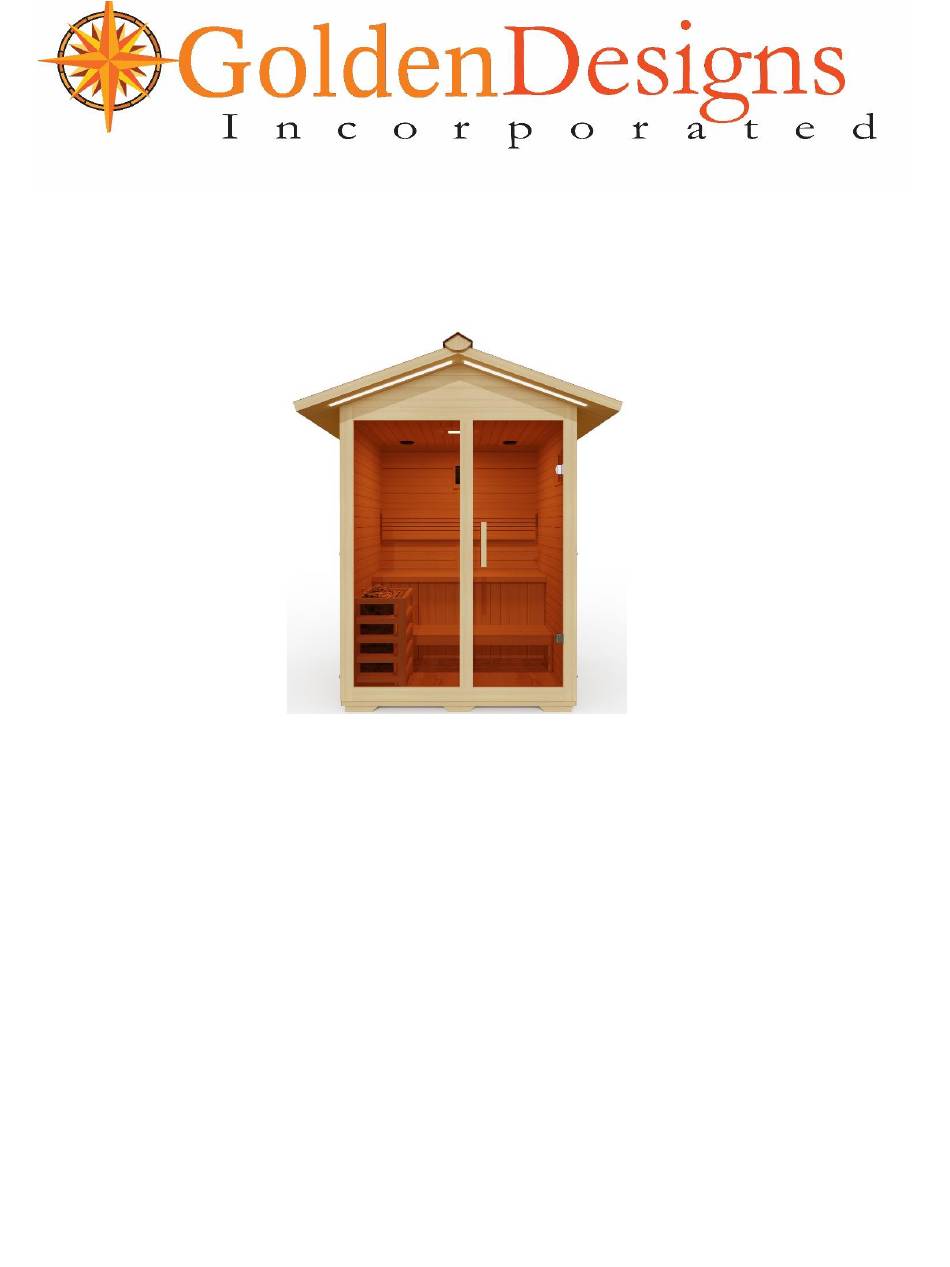

  • Page 1 GDI-8103-01 3-Person Steam Saunas Owner’s Manual SAUNA IS FOR OUTDOOR USE 120VAC 15AMP Outlet Required 240VAC 30AMP Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future reference.
  • Page 2 Thank you for your purchase. As you remove the parts from the boxes, be sure to examine them for damages. If your unit has any damages or missing parts, please contact Golden Designs Inc. See the Warranty section for more information. A Certified Licensed Electrician will be needed to install the electrical wiring.
  • Page 3 FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical wiring must be performed by a certified licensed electrician. Although this manual is a universal manual, the information within this manual is applicable to each sauna. High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury.
  • Page 4 8. When the equipment is not going to be used for an extended period of time, you can disconnect the sauna from the power source or turn OFF the dedicated circuit breaker. 9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30 seconds between powering the control system “On”...
  • Page 5 24. Pregnant women should never use the sauna. Women should also not use the sauna during their menstrual cycle. 25. If you have any medical condition, you must consult with your medical doctor before using the sauna. 26. Be cautious not to over extend yourself after an intense exercise workout by using the sauna.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Visual Assembly Diagrams Parts Description Dimensional Diagram Screw Identification Wall Panel Descriptions Assembly Instructions Sauna Control Panel Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 7: Visual Assembly Diagrams

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8103-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 8: Parts Description

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 9: Dimensional Diagram

    DIMENSIONAL DIAGRAM GDI-8103-01...

  • Page 10: Screw Identification

    Screw Identification Chart...

  • Page 11: Wall Panel Descriptions

    Wall Panel Descriptions for GDI-8103-01 NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.

  • Page 12: Assembly Instructions

    Assembly Instructions A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water. 2. The heater must be installed by a certified electrician. 3. Three adults are required for installation. 4.
  • Page 13 C. Installing the LEFT SIDE WALL PANEL 1. Place the LEFT SIDE WALL PANEL up and onto the FLOOR PANEL and next to the REAR WALL PANEL. Use the buckles to latch the two wall panels together. (see Figure 2) Figure 2 D.
  • Page 14 Installing the FRONT WALL PANEL 1. Now it is time to install the FRONT WALL PANEL. Place the FRONT WALL PANEL up and onto the FLOOR PANEL next to the RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL. Use the buckles to latch the wall panels together.
  • Page 15 G. Installing the BENCH SUPPORT, BENCH, BACKREST, and STEP 1. Locate the BENCH SUPPORT and slide it down the vertical channels on the side wall panels. Use the provided screws to screw the BENCH SUPPORT down to the vertical channels on the side wall panels. Next, the BENCH can slide horizontally over the BENCH SUPPORT PANEL.
  • Page 16 H. Installing the EXTERIOR ROOF PANEL 1. Locate the two triangular OUTER ROOF PANEL supports. Use the provided screws to screw the triangular OUTER ROOF PANEL supports to the FRONT WALL PANEL and REAR WALL PANEL. (see Figure 7) Figure 7 2.
  • Page 17 Figure 8 3. Locate the third section of the OUTER ROOF PANEL, the DECORATIVE ROOF TRIM. Use the provided screws to mount the DECORATIVE ROOF TRIM to the OUTER ROOF PANELS. (see Figure 9) Figure 9 Installing the DOOR HANDLE 1.

  • Page 18: Sauna Control Panel

    SAUNA CONTROL PANEL - GENERAL INTRODUCTION 1. Electrical Parameters: Functions Touch Key Technology √ FM Radio √ Roof Lights √ Chromotherapy Lighting √ Bluetooth Music Play √ 2. Control System Specifications: A.) Rated Voltage: AC110V-AC240V B.) Bluetooth Approximate Effective Distance: 10 feet C.) Rated Power: 50Hz/60Hz 3.
  • Page 19 CONTROL PANEL OPERATION 1. The Power Button “ “ powers the control panel. Press the “ “ button to turn the control panel ON/OFF. Once you press the “ “, the display will show “ “ and the - - - - Chromotherapy Light will turn ON.

  • Page 20: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) The ventilation vent is installed on the sauna and should never be obstructed.
  • Page 21 5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Excessive temperature has a high potential for causing fetal damage during pregnancy. 6.) Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting.

  • Page 22: Safeguards For Your Sauna

    19) Please make sure the supplied power meets the specifications required. Failure to meet the requirements may cause safety risks. 20) Do not attempt to touch any electrical parts or make repairs on your own when using the sauna. 21) Do not bump, hit, or break the heater as it may cause an electrical short and pose a safety risk.

  • Page 23: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room against defects in material and workmanship for the life of the product from the original date of purchase. The sauna is for outdoor use. When placed outdoors, a water proof cover or the sauna shingle roof may be installed to cover the sauna room for protection.
  • Page 24 ▪ Improper use of the sauna ▪ Moisture or water seepage Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Since the wood used in construction may have been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.

  • Page 25: Warranty Card

    WARRANTY CARD Congratulations on your purchase from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
