GoldenDesigns GDI-6264 Owner's Manual

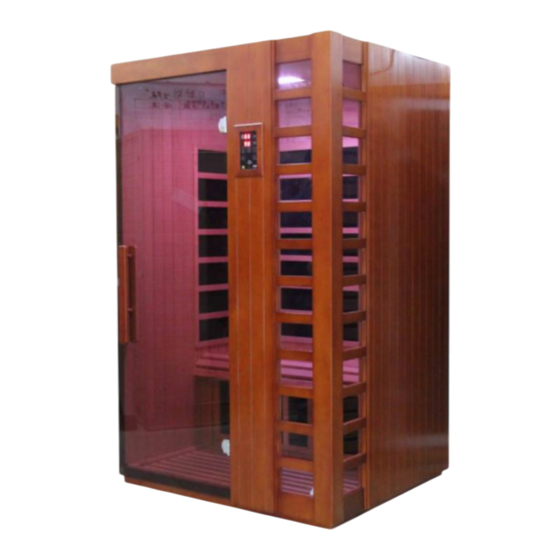

2 person sauna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

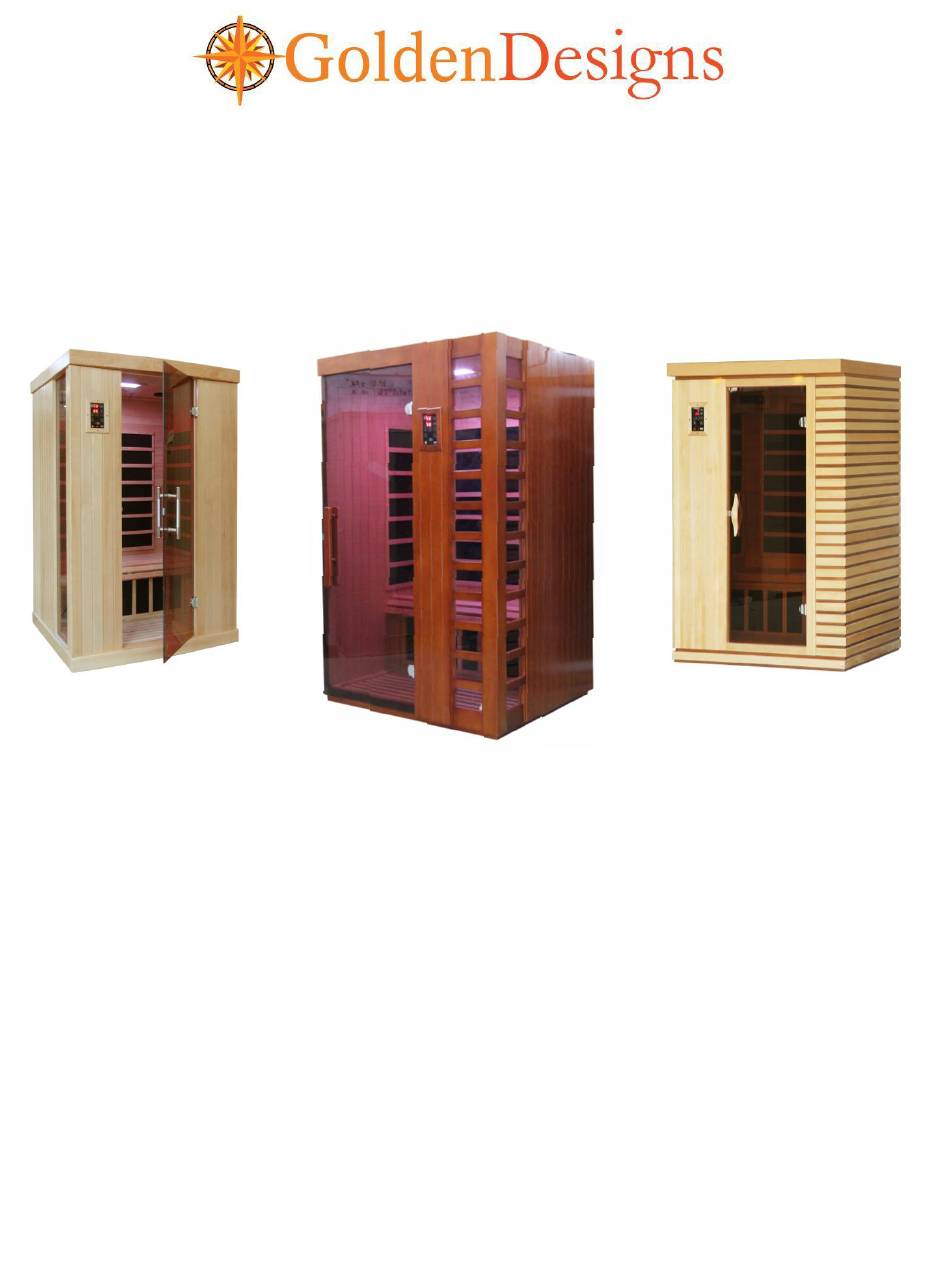

GDI-6264
2 Person Sauna
Owner's Manual
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15AMP
DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-6264 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoldenDesigns GDI-6264

Summary of Contents for GoldenDesigns GDI-6264

  • Page 1 GDI-6264 2 Person Sauna Owner’s Manual FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
  • Page 2 *PLEASE READ INSTRUCTIONS B E F O R E ASSEMBLY* GDI-6264 *The above assembly diagrams are quick reference visual guides only. All sauna models are not shown. Model types, parts, and accessories may vary.
  • Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 7: Parts Description

    PARTS DESCRIPTION A.FRONT OF SAUNA (see figure 1) B.INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 1) Control Panel 2) Door Handle 3) Tempered Glass Door 4) Speaker 5) Temperature Sensor 6) Ventilation Grid 7) Back Protection Grid 8) MP3 Auxiliary Socket (optional)
  • Page 8 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords LIGHT...
  • Page 9 III. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector CTRL Control panel connector CD/SIG For CD/temperature sensor/buzzer/etc. connectors L/SPEAKER Left speaker connector R/SPEAKER Right speaker connector TEMP SENSOR Temperature sensor BUZZER Buzzer connector MP3 AUX INPUT MP3 /radio connection...
  • Page 10 Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the floor panel faces upward, you will find that the edges are raised which the wall panels will rest on and up against. The front of the floor panel is the portion with the floor heat emitter panel.

  • Page 11: Assembly Instructions

    Rear Panel The REAR PANEL has the two heat emitter panels side-by-side. The REAR PANEL will be slightly warped. This allows for a snug and tight fit once the sauna room is assembled. (see figure 9) Figure 9 Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitter panels on the inside of the rear panel.
  • Page 12 C. Installing the FRONT PANEL and SIDE PANELS 1. Place the FRONT PANEL onto the recessed area on the FLOOR PANEL. The RIGHT SIDE PANEL and LEFT SIDE PANEL will need to be raised slightly, inserted into the FRONT PANEL, and then pull downward.
  • Page 13 Installing the ROOF PANEL 1. The side with the power supply faces up. 2. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the cords/wires coming from the FRONT PANEL, REAR PANEL, and SIDE PANELS when you set the ROOF PANEL down onto the wall panels.
  • Page 14 Figure 13 Figure 14 Figure 15 Figure 16 Plugging in the FLOOR EMITTER PANEL Locate the FLOOR EMITTER PANEL cord coming out of the floor and plug it into the left side outlet on the rear wall panel. Installing the BENCH EMITTER PANEL and BENCH 1.
  • Page 15 Figure 17 I. Installing the TEMPERATURE SENSOR 1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see figure 18) Figure 18 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.
  • Page 16 Figure 19 Figure 20 Figure 21 Figure 22 Assembling the RADIO BOX (optional) 1. Locate the wood sides for the CD/Radio housing. There is one for the front, side, and bottom. (see figure 23) 2. Attach “A” on side panel with “A” on bottom panel and insert screws. (see figure 24) 3.
  • Page 17 L. Putting on the ROOF COVER 1. Place the ROOF COVER over the top of the sauna. Be careful when pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.
  • Page 18 STANDARD CONTROL PANELS Power On/Off: Press to control the main power of the sauna Indicator: Indicates the status of the sauna’s main power - “POWER”, “WORK”, & “HEAT” Start/Stop: Press to control the working functions of the sauna Indicator: Indicate the working status of the sauna Heat Indicator: Indicate the status of heating function Light: Press to control the lighting function Time Display: Display the heating time of the sauna in minutes...
  • Page 19 UPGRADED CONTROL PANEL (Optional Upgrade On Some Models) Power On/Off : Press to control the main power of the sauna Indicator : Indicates the working status of the sauna Start/Stop : Press to start/stop the working functions of the sauna Temp Indicator : Press to select the temperature adjustment mode Time Indicator...

  • Page 20: Operating The Sauna

    Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 21 set the time to the desired setting, then press the START/WORK button twice and the control panel will stop flashing and heat will began coming from the emitters once again. Heating times do vary. Generally, it will take approximately twenty to thirty minutes to preheat the sauna to approximately 115 degrees Fahrenheit/46 degrees Celsius.

  • Page 22: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly.

  • Page 23: Safeguards For Your Sauna

    9.) Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation. 10) Exercise care before and after sauna use. 11) Never sleep inside the sauna. 12) Do not use any type of cleaning agents on the interior of the sauna.

  • Page 24: Troubleshooting Guide

    Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply.
  • Page 25 (you just connected) down the vent on the roof so that it is now inside the sauna. Then go to the control panel and press the power button. If the heat emitters now heat, then the temperature sensor was the cause of the problem.

  • Page 26: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.

  • Page 27: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
