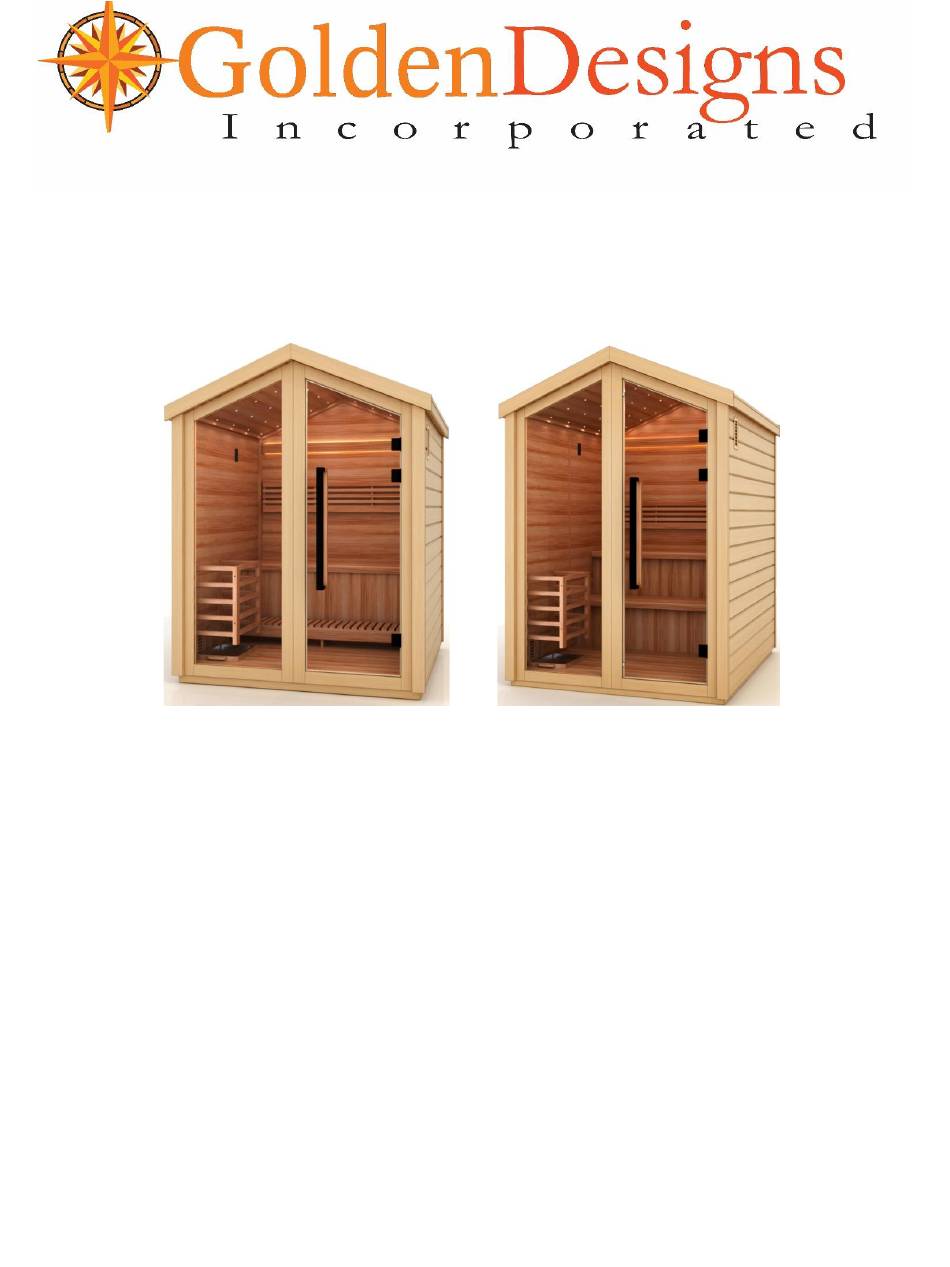

GDI-8503-01 / GDI-8506-01
3 & 6 Person Steam Saunas
Owner's Manual
SAUNA IS FOR INDOOR/OUTDOOR USE
GDI-8503-01 - 240VAC 30AMP Circuit Required (6kW Heater)
GDI-8506-01 - 240VAC 40AMP Circuit Required (8kW Heater)
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Follow your local codes and ordinances. The heater must be installed by
a certified licensed electrician per the manufacturer's manual. The heater must be
installed per the electrical code in your area with reference to the breaker and wire
sizes. Models are subject to change.
