READ AND SAVE THESE INSTRUCTIONS

QUICK ASSEMBLY NOTES:

* Do not wire in fan while house wires are Live. Turn power off at breaker before installation

begins.

* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.

* Please do not use any electric or battery powered tools in the assembly and installation of this

or any other Matthews Fan Company product.

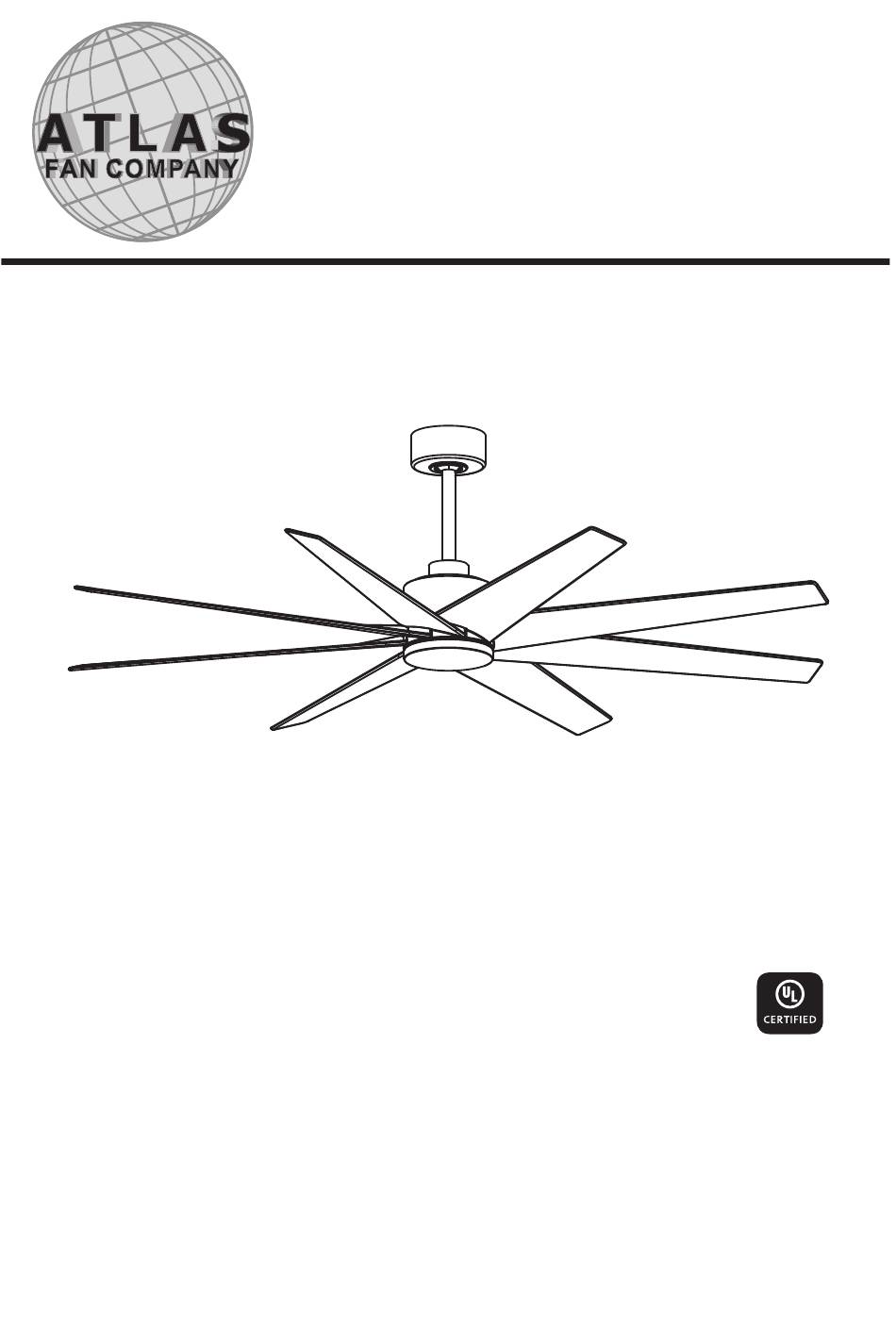

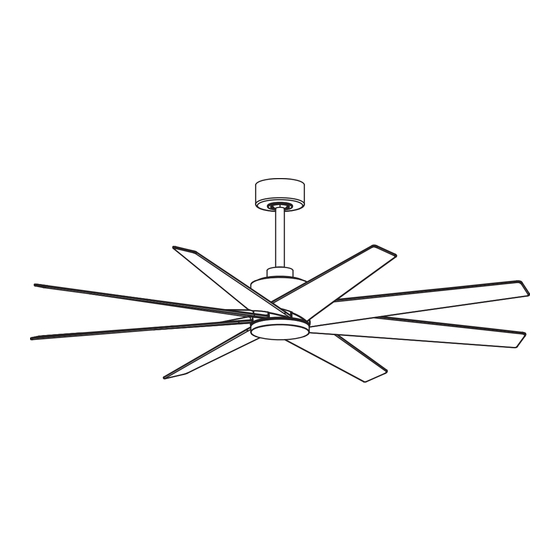

ARIELLA

64" CEILING FAN

FAN RATING AC 120V. 60Hz

Wet Location

Need help?

Do you have a question about the ARIELLA and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas fan company ARIELLA

Page 1 ARIELLA 64" CEILING FAN READ AND SAVE THESE INSTRUCTIONS Wet Location FAN RATING AC 120V. 60Hz QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins. * Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
Page 2 TABLE OF CONTENTS 1. Tools and Materials Required..................2. Package Contents ...................... 3. Safety Rules........................ 4. Mounting Options......................5. Hanging the Fan ......................6. Make the Electric Connections..................7. Finishing the Installation....................8. Attaching the Fan Blades.................... 9. Installing the Decorative Cover................... 10.
Page 3 1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set (8) Blade support plate with screws and lock washers (8) Hanger bracket assembly Downrod rubber cover...
Page 4 3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan.
Page 5 4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.
Page 6 5. HANGING THE FAN Ceiling hanger REMEMBER to turn off the power. Follow the bracket steps below to hang your fan properly. Ceiling canopy 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover 2.
Page 7 NOTE: If a longer downrod (not included) is Extension needed, take out the screw located in the hanger cord ball, lower the hanger ball and remove the pin. Extension Remove all three pieces from the downrod and cord assemble them onto the new longer downrod before proceeding to the downrod installation.
Page 8 6. MAKE THE ELECTRIC CONNECTIONS WARNING/CAUTION: Disconnect the power at Hanger the electrical box. Follow the steps below to bracket Receiver connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose strands or connections.
Page 9 7. FINISHING THE INSTALLATION Outlet box Hanger STANDARD CEILING INSTALLATION bracket Screws 1. Tuck connections neatly into ceiling outlet box. 2. Slide the canopy up to hanger bracket and place Canopy the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
Page 10 9. INSTALLING THE DECORATIVE COVER REMEMBER to disconnect the power. Position the notches on the inner edge of the decorative cover so they match the tabs on the outside of the rim on the mounting plate. Carefully lift the decorative cover inside the mounting plate and secure it to the fan by turning the decorative cover clockwise until snug.
Page 11 11. PROGRAMMING YOUR FAN AND OPERATING THE REMOTE CONTROL Before programming takes place, fan must be fully assembled and mounted to the ceiling with blades attached. You must also choose which control you will be using for programming the fan, the remote or the wall control. No other wall control should be used with this fan but that whichwas included.
Page 12 NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. If the frequency is changed the self calibration test will occur again. This receiver provides the following protective function: 1.
Page 13 12. OPERATING YOUR Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Figure 20 Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig.
Page 14 14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds noisy. 1.
Page 15 LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside or outside damp location installation for: Motors: Lifetime of original purchaser: Labor &...

This manual is also suitable for:

An-tb-bk-64 An-bn-bw-64
