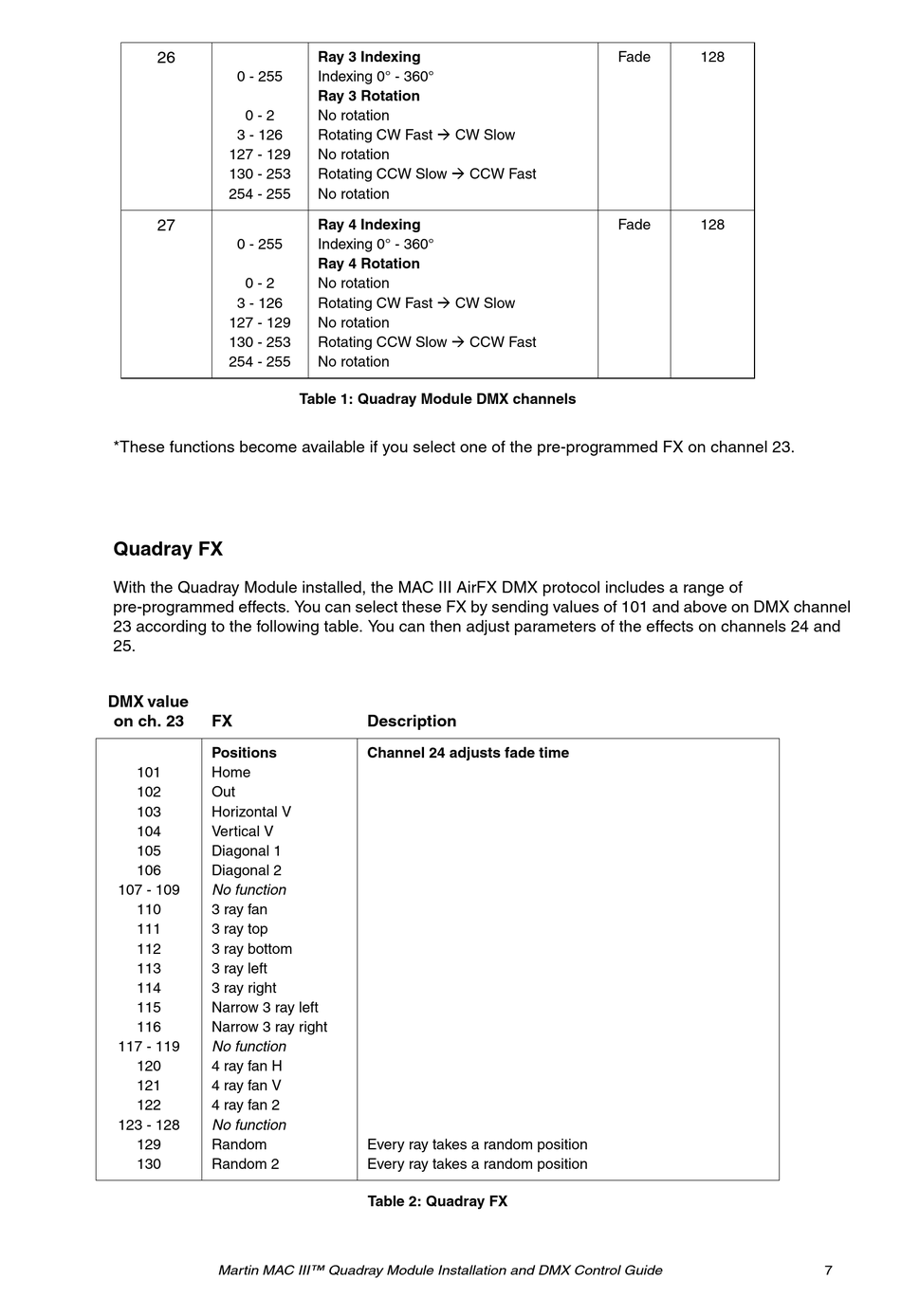

Martin MAC III Quadray Module Installation And Control Manual page 7

26
0 - 255
0 - 2
3 - 126
127 - 129
130 - 253
254 - 255
27
0 - 255
0 - 2
3 - 126
127 - 129
130 - 253
254 - 255
*These functions become available if you select one of the pre-programmed FX on channel 23.
Quadray FX
With the Quadray Module installed, the MAC III AirFX DMX protocol includes a range of
pre-programmed effects. You can select these FX by sending values of 101 and above on DMX channel
23 according to the following table. You can then adjust parameters of the effects on channels 24 and
25.
DMX value
on ch. 23 FX
Positions
101 Home
102 Out
103 Horizontal V
104 Vertical V
105 Diagonal 1
106 Diagonal 2
107 - 109 No function
110 3 ray fan
111 3 ray top
112 3 ray bottom
113 3 ray left
114 3 ray right
115 Narrow 3 ray left
116 Narrow 3 ray right
117 - 119 No function
120 4 ray fan H
121 4 ray fan V
122 4 ray fan 2
123 - 128 No function
129 Random
130 Random 2
Martin MAC III™ Quadray Module Installation and DMX Control Guide
Ray 3 Indexing
Indexing 0° - 360°
Ray 3 Rotation
No rotation
Rotating CW Fast  CW Slow
No rotation
Rotating CCW Slow  CCW Fast
No rotation
Ray 4 Indexing
Indexing 0° - 360°
Ray 4 Rotation
No rotation
Rotating CW Fast  CW Slow
No rotation
Rotating CCW Slow  CCW Fast
No rotation
Table 1: Quadray Module DMX channels
Description
Channel 24 adjusts fade time
Every ray takes a random position
Every ray takes a random position
Table 2: Quadray FX
Fade 128
Fade 128
