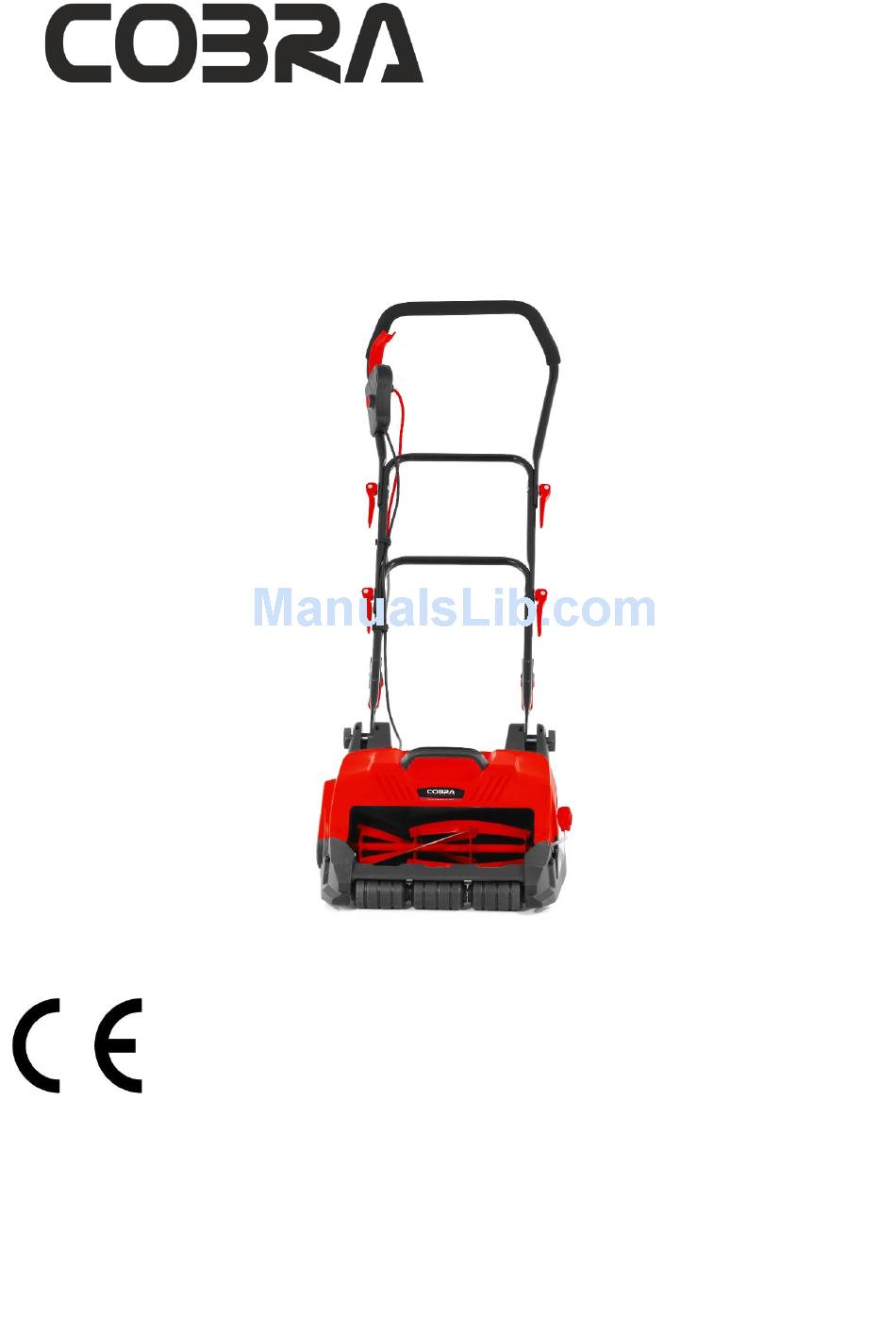

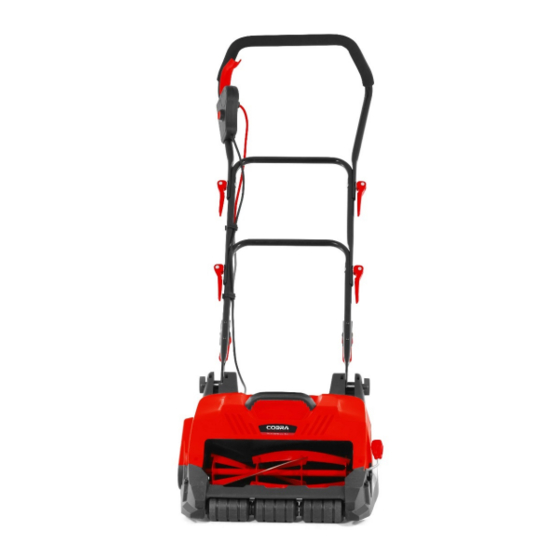

MODEL: CM32E
COBRA LAWN MOWER
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 400W and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra 400W

Summary of Contents for Cobra 400W

  • Page 1 MODEL: CM32E COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...

  • Page 2: Table Of Contents

    CONTENT SECTION 1 SYMBOLS MARKED ON THE PRODUCT ……………..………….………. 3 SECTION 2 GENERAL SAFETY RULES……………… ……………..………….………. SECTION 3 GENERAL IDENTIFICATION ... ……………………………………… SECTION 4 TECHNICAL DATA ......………………………………………. 7 SECTION 5 ASSEMBLY ........………………………………………. 6 SECTION 6 OPERATING THE MOWER ………………………………………………….. 9 SECTION 7 STORAGE AND TRANSPORTATION …………...…………………………..

  • Page 3: Section 1 Symbols Marked On The Product

    Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference. Keep bystanders away. Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the plug from the machine before maintenance or if cord damaged. Keep the supply flexible cord away from the cutting blades.

  • Page 4: Section 2 General Safety Rules

    DOUBLE INSULATED Your mower is double insulated. This means that all external parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts. 2. GENERAL SAFETY RULES The purpose of the safety rules is to attract your attention to possible dangers. The safety symbols and the explanations with them, require your careful attention and understanding.
  • Page 5 IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. 1. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 2. Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator 3.

  • Page 6: Section 3 General Identification

    mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 29. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

  • Page 7: Section 4 Technical Data

    4. TECHNICAL DATA Model: CM32E Rated Voltage: 230V~ Rated Frequency: 50Hz Rated Power: 400W No Load Speed: 3400/min Cutting Width: 320mm Grass catcher: Included Net weight: 12kg Height adjustment : 18-38mm, 3 adjustment Sound pressure level at the 74dB(A) K=4 dB(A) operator’s position...
  • Page 8 5.2 ASSEMBLY- THE MIDDLE & UPPER HANDLE 1.Firstly, slide the cable holder / retainer onto the middle handle, position it around the top of the handle so it does not fall off during the following assembly steps. 2. Slide the middle handle into the profiled area of the lower handle frame. Making sure that the holes of both sides of the upper handle are directly aligned with the holes of the frame.

  • Page 9: Section 6 Operating The Mower

    5.5 BEFORE CONNECTING TO THE POWER SUPPLY WARNING: READ ALL THE INSTRUCTIONS BEFORE PROCEEDING 1. Never use the mower if the power cable is damaged or cut in anyway. Replace the cable before using. 2. Do not use the use the mower in damp conditions. 3.
  • Page 10 6.2 OPERATING THE ON/OFF SWITCH WARNING: THE MOWER IS FITTED WITH A TWO STAGE SAFETY SWITCH. ENGAGE THE LOCK SWITCH BEFORE PULLING THE LEVER. TO SWITCH ON: 1. Press the switch lock button (A) 2. Pull the switch lever (B) and release the switch lock button (A) TO SWITCH OFF: Release the switch lever (B) 6.3 ADJUSTING THE BOTTOM BLADE AND CUTTING CYLINDER...

  • Page 11: Section 7 Storage And Transportation

    6.3 OPERATING THE MOWER WARNING: - Always keep a firm hold of the mower handle with both hands and beware of others in the area. The blades may cause an accident. Be careful while moving backwards –danger of tripping! To avoid damage to the mower: - Never lift or drag the tool with the motor running.
  • Page 12 7.2 STORING THE MOWER WARNING: DISCONNECT THE PLUG FROM THE SOCKET FIRST The handles of the mowers fold down to allow for compact storage. Push the lower handle to the right and then rotate forward, make sure the lower handle is out of the block position. Release the cam-lock levers and fold the handle down.

  • Page 13: Section 8 Troubleshooting

    Warning: before performing any maintenance or cleaning work, always pull out the mains plug and wait until the cutter has come to a standstill. CAUTION! Faults which cannot be rectified with the aid of this table may be rectified by a Cobra Service Centre only.

  • Page 14: Section 9 Warranty

    Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly.

  • Page 15: Section 11 Ec-Declaration Of Conformity

    11. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
