Hardware Installation

6.1

Tools Needed

To install the NetGuardian, you'll need the following tools:
Phillips No. 2 Screwdriver
Wire Strippers/Cutter
Punch Down Tool (if 66 blocks are used)
6.2

Mounting

The NetGuardian mounts in a 19" rack or a 23" rack using the provided rack ears for each size. Two rack ear
locations are provided. Attach the appropriate rack ears in the flush-mount or rear-mount locations shown in
Figure 6.2.1.
Note: Rack ears can be rotated 90° for wall mounting or 180º for other mounting options (not shown).

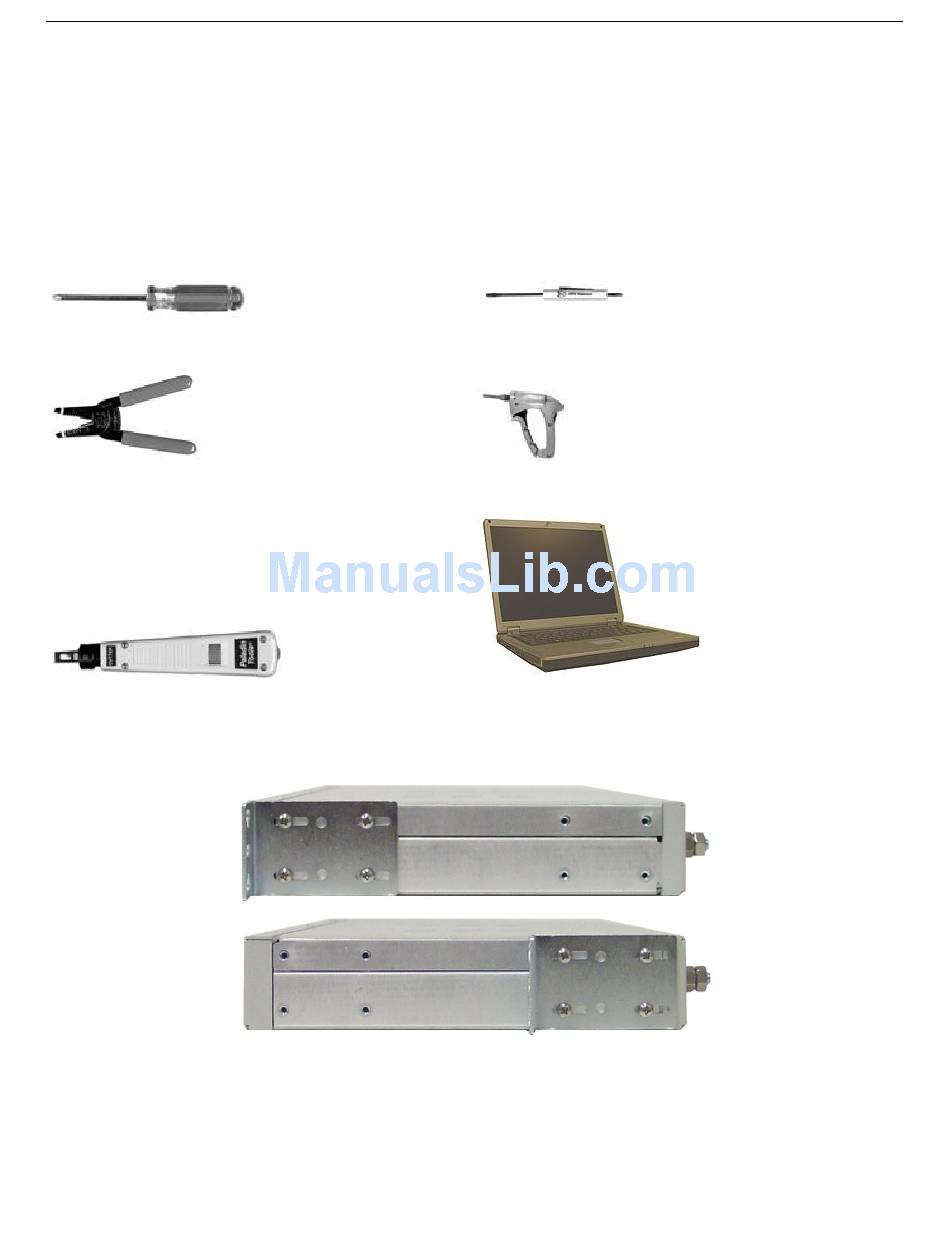

Fig. 6.2.1. The NetGuardian can be flush or rear-mounted
Small Standard No. 2 Screwdriver
Wire Wrap Gun (if hinged wire wrap panel is used)
PC with NGEditG5 software
