5

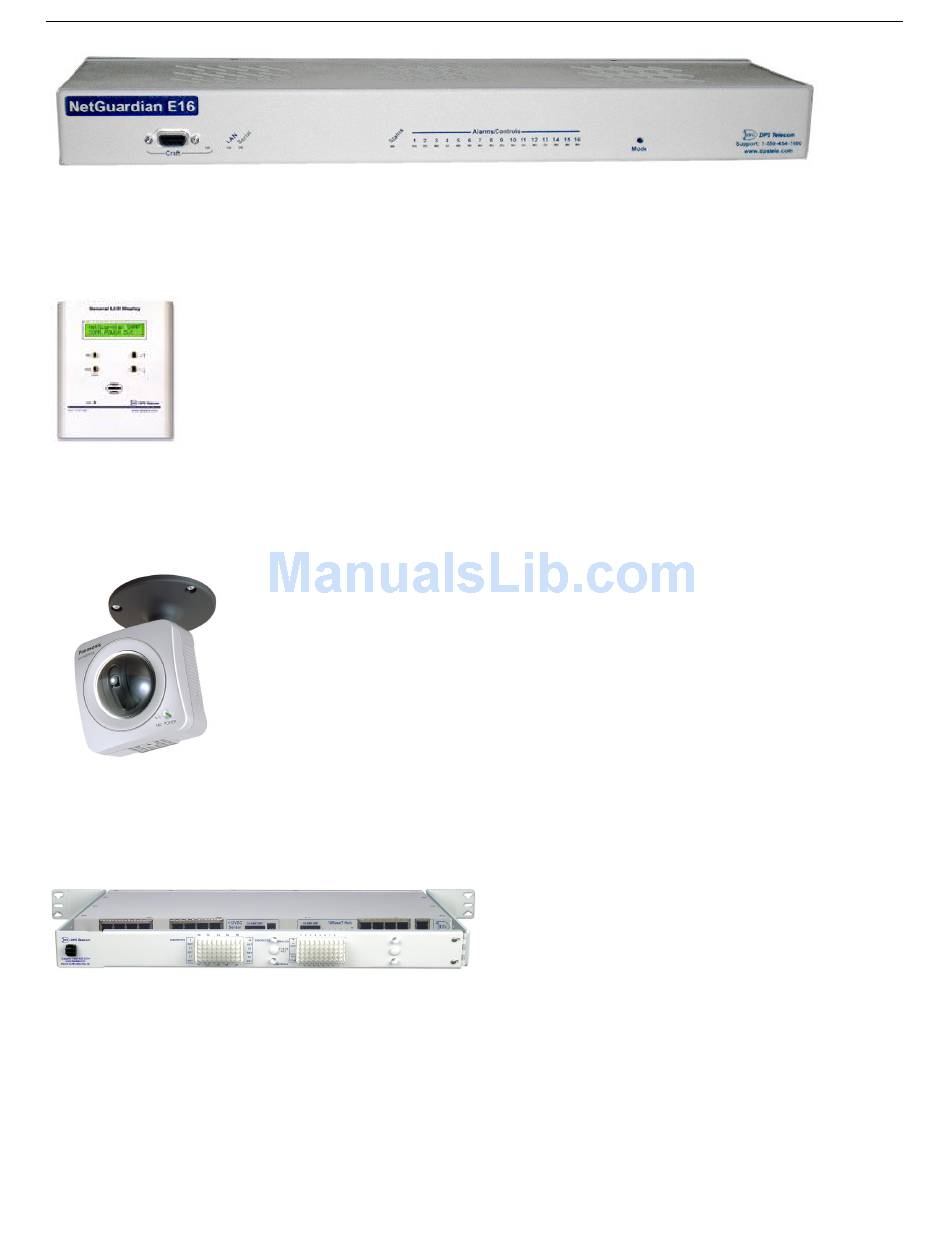

NetGuardian E16
D-PK-DXE16
Adding the NetGuardian E16 provides an additional 16 alarm points and 16 controls. One NetGuardian E16 unit
may be used per NetGuardian 832A/864A G5 remote. In this configuration, the E16 must be the last unit in the
chain. Having only 1 serial port, it cannot forward traffic to a subsequent RTU.
General LCD Display (GLD)
D-PC-820-10A-04
The General LCD Display (GLD) is a small wall-mounted remote terminal for the NetGuardian. The LCD
display shows system status and alarm messages, and the built-in speaker gives an audible notice of alarms. Up
to 12 GLDs can be daisy-chained off the NetGuardian.
NetGuardian SiteCAM D-PK-CAMRA-12001.00001
The NetGuardian SiteCAM provides streaming video security surveillance of remote sites. The SiteCAM
connects to either the NetGuardian's integrated 10/100BaseT switch or a separate 10/100/1000 switch. SiteCAM
video can be accessed directly from the NetGuardian's Web Browser Interface. Up to four cameras can be
supported.
Hinged Wire-Wrap Back Panel
For 19" rack: D-PK-NGPAN-12002 For 23" rack: D-PK-NGPAN-12006
The hinged wire-wrap back panel provides wire-wrap connections for the NetGuardian's alarms and control
relays.
