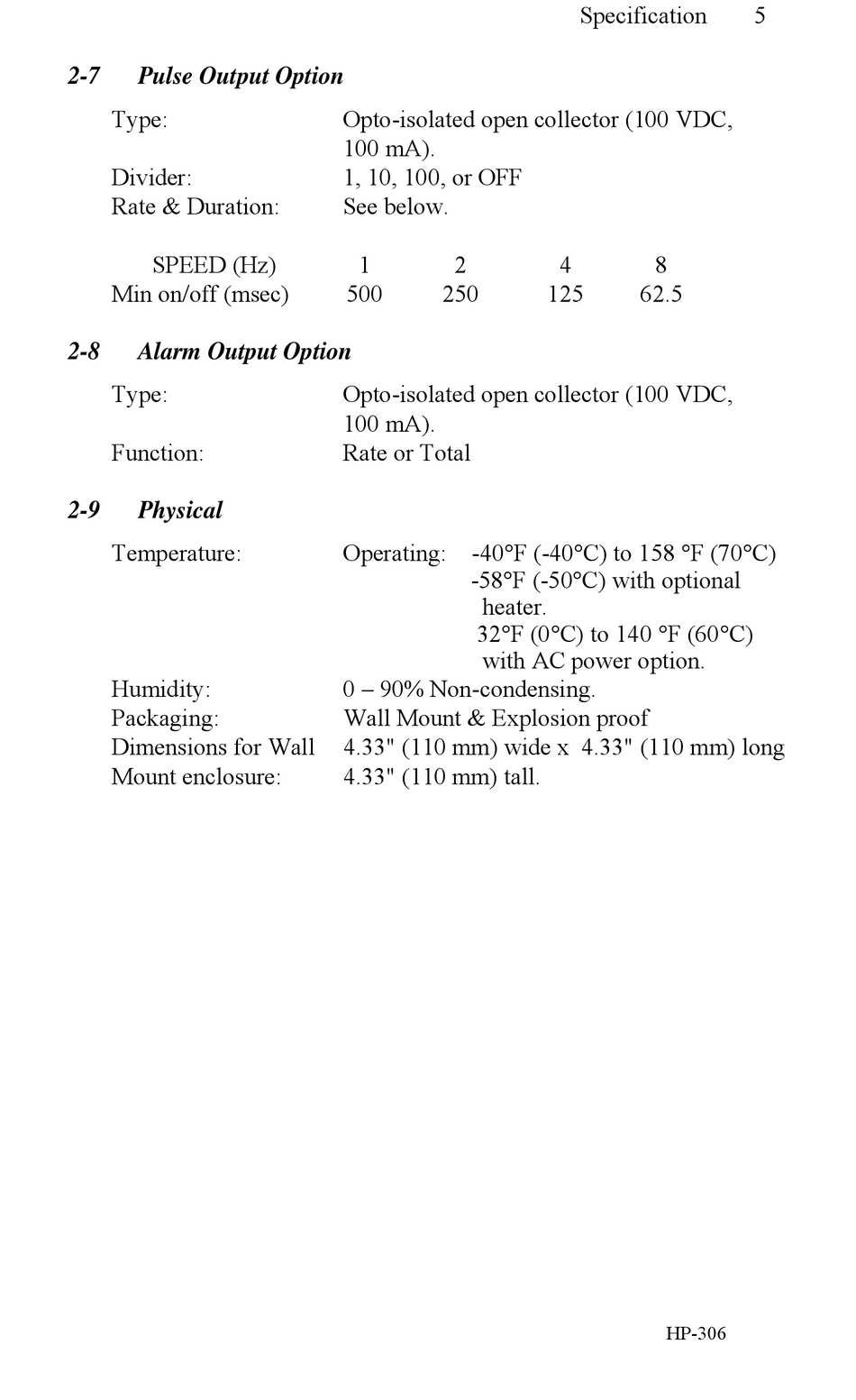

Pulse Output Option; Alarm Output Option; Physical - Hoffer Flow Controls HIT-2A User Manual

2-7

Pulse Output Option

Type:
Divider:
Rate & Duration:
SPEED (Hz)
Min on/off (msec)
2-8

Alarm Output Option

Type:
Function:
2-9

Physical

Temperature:
Humidity:
Packaging:
Dimensions for Wall
Mount enclosure:
Opto-isolated open collector (100 VDC,
100 mA).
1, 10, 100, or OFF
See below.
1 2
500 250
Opto-isolated open collector (100 VDC,
100 mA).
Rate or Total
Operating: -40°F (-40C) to 158 °F (70C)
-58°F (-50C) with optional
heater.
32°F (0°C) to 140 °F (60°C)
with AC power option.
0 – 90% Non-condensing.
Wall Mount & Explosion proof
4.33" (110 mm) wide x 4.33" (110 mm) long
4.33" (110 mm) tall.
Specification
4 8
125 62.5
HP-306
5
