Summary of Contents for Clarke CFP9HND
-
Page 1: Air Compressor

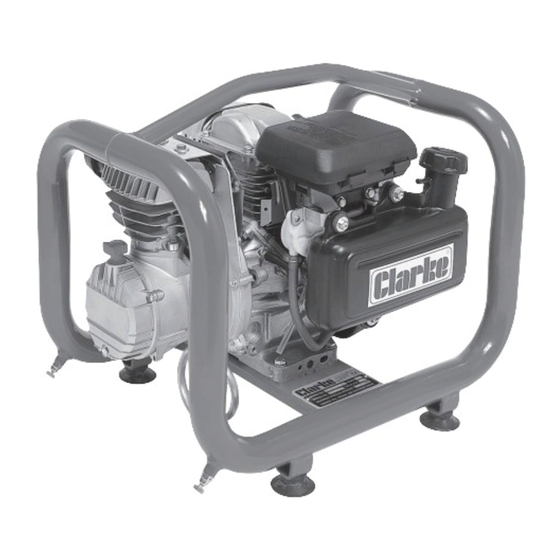

Air Compressor Air Compressor Models: CFP9HND Part Number: 2090901 Operating & Maintenance Instructions © 1216... - Page 2 - 2 -...
- Page 3 NOTE: Specifications are correct at the time of going to print. Clarke International reserves the right to change specifications at any time, as it sees fit, in the interests of safety or improvement in design. Copyright: Clarke International, All rights reserved. June,2002...
-
Page 4: Table Of Contents
Read these safety instructions before using the equipment. INTRODUCTION Thank you for purchasing this Clarke Air portable compressor. The unit is powered by a 5HP Honda engine, a manual for which, is provided separately. Please refer to that manual for all matters relating to the engine, ...starting and stopping procedures, maintenance etc. -
Page 5: For Your Own Safety
FOR YOUR SAFETY WARNING As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked, or ignored, personal injury to the operator, or damage to property may result. -
Page 6: Important General Notes
IMPORTANT General Notes • NEVER allow anyone, not fully familiar with compressors, to use this equipment. • DO NOT alter the engine settings..these settings are set at the factory. Should they need recalibration - consult your Clarke dealer - 6 -... -
Page 7: General Layout
GENERAL LAYOUT CFP9ND Fig.1 - 7 -... -
Page 8: Preparation For Use
F. Air Hose & Air Tool • Attach the air hose to the outlet using an appropriate connector. • Attach the air tool/spray gun to the air hose...If using snap couplings, use a whip end, available from your Clarke dealer. - 8 -... -
Page 9: Starting & Using Your Air Compressor
STARTING AND USING THE COMPRESSOR First time startup NOTE: For first time operation, do not connect the air hose or any tools and proceed as follows: Start the engine, according to the instructions contained in the engine service manual, and allow to run for 10 minutes. Fig.2 After a ten minute period, stop the engine and attach an air hose to... -
Page 10: Shutting Down The Compressor
Take care not to touch the engine or pump as they remain hot for some time after use. REPLACEMENT OILS Replacement oils are available from your Clarke dealer as follows: 1 litre of Compressor pump oil - Part No. 3050796 1 litre of Engine oil - Part No. 3050852... -
Page 11: Maintenance
Replace screw and top up until oil is level with the mark on the dipstick, using compressor oil available from your Clarke dealer as follows: Part No. 3050796 In addition to the above, check the engine manual for service schedule. -
Page 12: Troubleshooting
Compressor unit Load Genie defective. Have Load Genie serviced or replaced constantly ‘on load’ Contact Clarke Service Load Genie set at a pressure Department higher than the safety valve’s opening pressure. Load Genie leaking. Contact Clarke Service... - Page 13 Flywheel loose. Tighten flywheel. Unit installed on an unsuitable Move unit to a more solid base. base. Bearings, piston rings or cylinder Contact Clarke Service worn. Department Contact Clarke Service Valve broken. Department Compressor See that sufficient air is supplied to Insufficient ventilation.
-
Page 14: Parts And Service Contacts
For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 or e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 15: Parts Lists And Diagrams
PUMP PARTS - 15 -... - Page 16 PUMP PARTS Description Part No. Air Filter Assy ............... FN317013000 Head Bolt M6x45 ..............FN014002021 Cylinder Head ..............FN116001001 Spacer ................. FN116060015 Heat Shield ................. FN116060016 Screw M6x70 ..............FN014002029 Washer 6.5x18 ..............FN014005044 Screw M5x15 ..............FN014013042 Elbow ................... FN011015000 Gasket .................
- Page 17 PARTS LIST - ENGINE HS17211-ZL8-000 HS98079-56846 HS28400-ZL8-013ZA HS28462-ZL8003 RECEIVER AND ANCILLIARY PARTS No. Description Part No. CFP9ND Pump MK 238 1370005 Engine Honda 5HP Contact Spares Department Drain Cock 2000221 Bottom Entry Gauge 2000171 Safety Valve 2000192 Manifold 4-way FN011276000 Rubber Foot FN116011006 Regulator Assy...
- Page 19 - 19 -...
