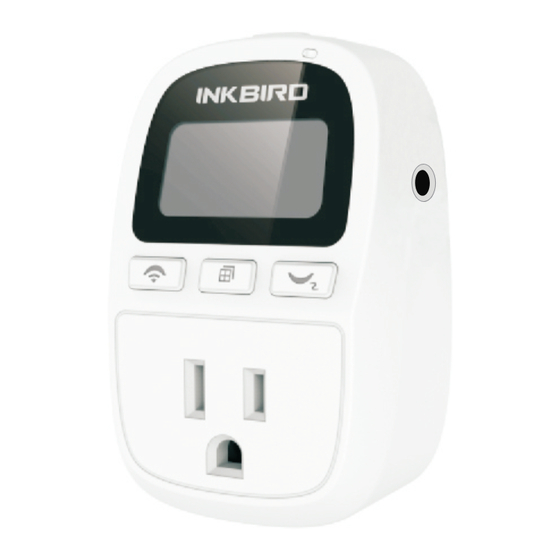

Power Button: Power ON / OFF
PAUSE / RUN
Up
Button
Set
Button
Indicator
Light
Probe
Input: 100~265VAC 50/60HZ
Interface
Maximum Current: 13.5A
Maximum Power: 1500W (110V)
Down Button
Ambient Temperature: -30~75 °C (-22°F~167°F)
Output Socket
Dimension: 93(L)*63(W)*34(H) mm/
3.66(L)*2.48(W)*1.34(H) in
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inkbird C909
Summary of Contents for Inkbird C909

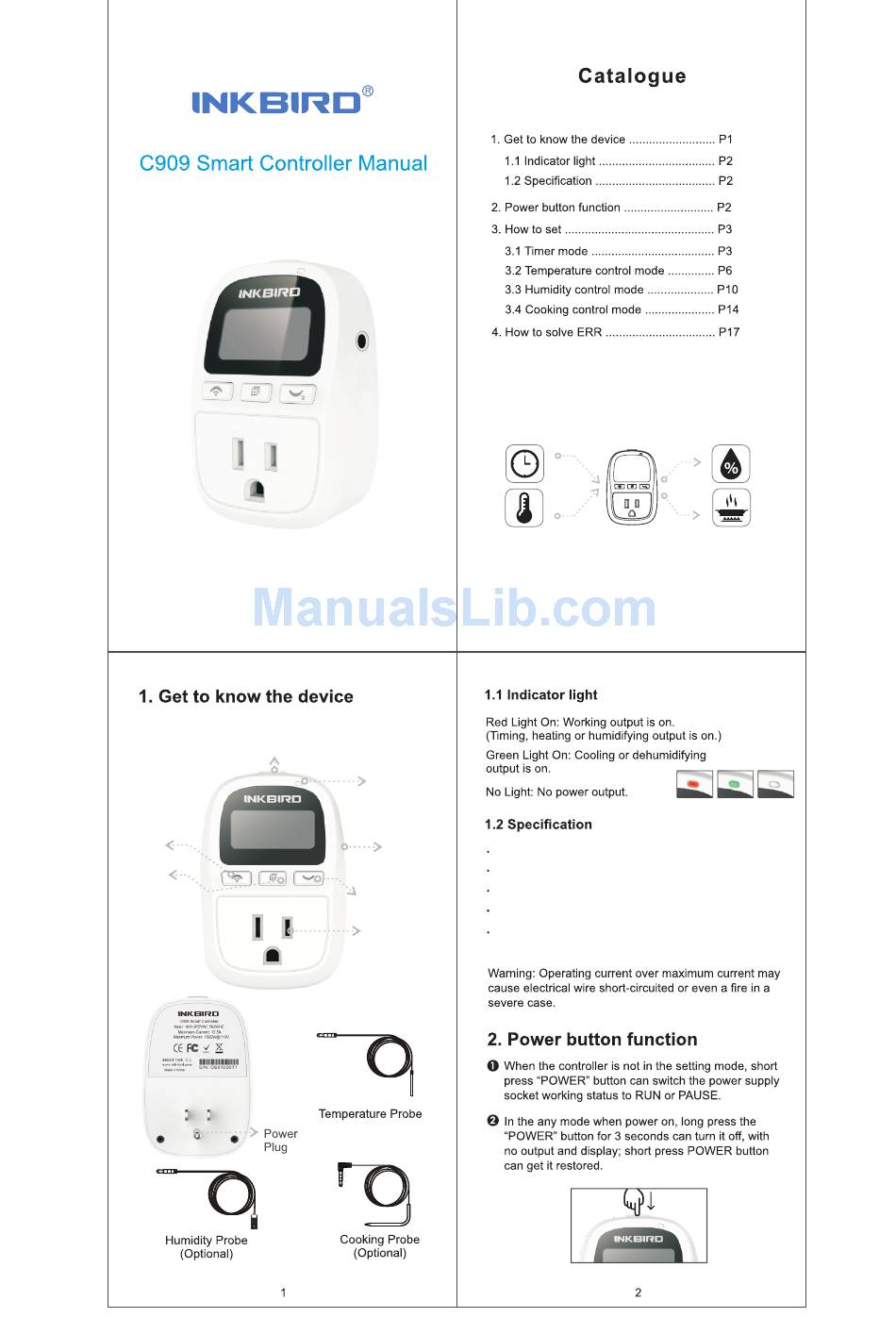

- Page 1 Power Button: Power ON / OFF PAUSE / RUN Indicator Light Probe Button Input: 100~265VAC 50/60HZ Interface Maximum Current: 13.5A Button Maximum Power: 1500W (110V) Down Button Ambient Temperature: -30~75 °C (-22°F~167°F) Output Socket Dimension: 93(L)*63(W)*34(H) mm/ 3.66(L)*2.48(W)*1.34(H) in...
- Page 2 Controlling Time Duration Working status: RUN - working PAUSE - pause END - end Remaining Time / Already Running Time Temperature Control Range: -50~100°C (-58~212°F) Temperature Resolution: 0.1°C/ 0.1°F Temperature Accuracy: ± 1°C/ ± 1°F Temperature T1 Temperature Unit ( ° F) Control mode: Setting Value H - Heating...
- Page 3 Step 2. Short press the “SET” button to enter the next parameters setting mode, long press “SET” button to save and quit. If there is no operation carried out for 30 seconds, the device will automatically quit without saving any parameters modified.
- Page 4 Step 4. Short press “SET” button again to save the modified parameters. Working Normally 100%RH 0.0%RH 0.0%RH Function Setting range Symbol Code Default Note H: Humidifying/ Temperature Control Range: -10~250°C/ 14~482°F D: Dehumidifying Temperature Resolution: 1°C/ 1°F Humidity -25.0~25.0% 0.0% Calibration Temperature Accuracy: ±...
- Page 5 Function Setting range Symbol Code Default Note Temperature Unit (°C/°F) Temperature -9.9~9.9 °C/ 0.0°C/°F Calibration -15.0~15.0°F Alarm 30.0~250°C/ 100°C/ Temperature 68.0~482°F 212°F Alarm High Setting (AT) Display in Fahrenheit or Centigrade (CF) Inkbird Tech.C.L cs@ink-bird.com www.ink-bird.com Shenzhen, GD, 518000, China...
Need help?
Do you have a question about the C909 and is the answer not in the manual?
Questions and answers
Can I use it as a timer to turn on lights
Yes, the Inkbird C909 can be used as a timer. It supports count up and count down timing modes and controls power output through its socket. This allows it to turn connected devices, such as lights, on or off based on the set time duration.
This answer is automatically generated
