CONTENTS Overview Features & Specifications What you will Get Tools You Will Need Cinnection Terminal Product Diagram Need Help? Installation Steps Wiring Diagram Operation Instructions Troubleshooting Guide Product Warranty Fcc Requirement Irrigation Schedule Table... -
Page 3: Features & Specifications

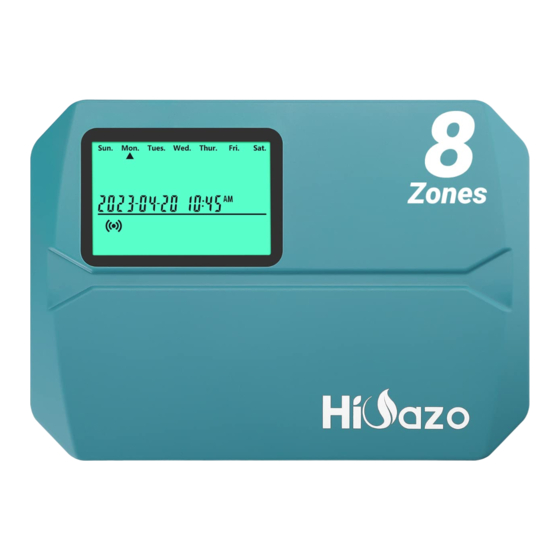

OVERVIEW INKBIRD HO-SC-8W smart sprinkler controller upgrades your water pipes into an intelligent automatic system, which will save you plenty of time that you would have spent watering in the past. This controller features a Wi-Fi function, enabling you to program and monitor irrigation by your phone. -
Page 5: What You Will Get
WHAT YOU WILL GET... -
Page 7: Tools You Will Need
TOOLS YOU WILL NEED... -
Page 8: Cinnection Terminal
CINNECTION TERMINAL... -
Page 9: Product Diagram
PRODUCT DIAGRAM POWER：Turn on to enter the AUTOMATIC: Automatically water auto irrigation mode; Turn off to based on the programmed stop all progressing irrigation and watering schedules forbidden the auto mode SEASONAL ADJUST: Extend or SCHEDULE: Customize irrigation reduce the irrigation duration (run schedules, to determine how time) of all stations often the timer will water... -
Page 10: Need Help
need help? INSTALLATION STEPS... - Page 14 Connect Pump Start Relay (optional) If you want to start up the water pump of the controller, you must install a pump start relay.The pump start relay is connected in the same way as the main valve. Note: The controller does not provide the main power supply for the water pump.
- Page 15 Note: PLEASE DO NOT turn on the power before confirming all lines are well connected. Please cut off the power of the line if it's damaged. In that case, we suggest changing a replacement line to avoid danger.
-
Page 16: Wiring Diagram
Wiring Diagram... -
Page 17: Operation Instructions
OPERATION INSTRUCTIONS INKBIRD APP Setting Download the APP Search the keyword “INKBIRD” in App Store or Google Play, or scan the left QR code to download and install the APP. Pair your phone United States United States Open the app and... - Page 18 Add Products SmartConfig Short press Configuration Configuration button State State Long press button for 2 seconds SmartConfig Connection Connection Other State State State • Power on the device, reset the Wi-Fi network，and choose the connection mode. Turn on the device. Now you can add the device needed.
- Page 19 Select the icon state from the Select the icon state from the Select the icon state from the following options: following options: following options: Confirm and select the Wi-Fi icon status of the device, then click the relevant symbol on the app. Note: If the Wi-Fi icon of the device is in the “Stay Lit”...
- Page 20 SmartConfig Connection Mode (Fast Flash) Enter your Wi-Fi account and password. Note: This device supports a 2.4GHz Wi-Fi network only. Cancel Pairing is successful. AP Connection Mode (Slow Flash) Go to Connect Choose the name of your Click “Go to Connect” to go to your phone's WLAN setting Wi-Fi device and enter the page, select the “SmartLife-xxxx”...
- Page 21 Pairing is successful. Cancel Functional Operation on APP Interface Main Interface Device Name Menu Information HO-SC-8W Back to Home Page Local Weather Conditions Scheduled Mode /Manual Mode/ Schedules & History Zone Number Edit Schedules Edit Multi-zone Schedules...
- Page 22 • Menu Information Back to Home Page Rain Sensor Switch Seasonally Adjusted Value More Information Reset Parameters Power ON/OFF Interface of Scheduled Irrigation HO-SC-8W HO-SC-8W Information of the upcoming irrigation Information of current zone irrigating zone Zone Number Watering Period Finished Time Scheduled Time 7 minutes...
- Page 23 Interface of scheduled irrigation settings Shut down the zone Cancel the setting and restore the last setting parameters Confirm the settings Zone description, such as”Front yard garden” Watering Peroid Choose to obey or ignore the rain sensor on this zone Scheduled irrigation time Start Time Shut down the zone and...
- Page 24 Interface of Manual Irrigation • Interface of single or multiple zones HO-SC-8W HO-SC-8W Zone Number Manual watering time Multi-zone Start irrigation Settings Stop irrigation at the current zone and enter the next zone HO-SC-8W Finished Time Remaining Time Stop all irrigation...
- Page 25 Device Settings Date & Time: Set the clock time, year, month and day • Press the button to enter the setting of the current time; Long press the button for 2 seconds to select between 12-hour clock and 24-hour clock. •...
- Page 26 2/ Set watering duration • Press the button to adjust the watering duration time, then press the button to move forward to the next option. 3/ Set watering start times Note: 1~6 start times can be set for each zone. •...
- Page 27 • Press the button to activate or forbidden irrigation on the designated day which is flashing, then move to the setting of the next day. Or you can press the button to move to the setting of the next day. Option 2: Water on odd days •...
- Page 28 • Press the button to set a number of days for the time interval. You will see the display character flashing. In that case, press the button to move forward to the next setting. • Press the button to set the desired start day.
- Page 29 Display in Auto Mode: The screen displays the current time and date. Display in Irrigation Process: The screen displays the current time and date, the serial number of the zone, and the remaining watering time. You will see the icon of the sprayer flashing.
- Page 30 • Press the button to check other start times on this zone. • Press any other buttons or wait for 5 seconds of no operation to quit the inquiry state. Turn On/Off: Turn on to enter the auto mode to irrigate based on programmed schedules;...
- Page 31 • All zones are selected by default. Press the button to move forward to the next option. • Press the button to set the desired watering duration time. • Press the button to quit setting and start irrigating. The device will automatically quit and start irrigating if there is no operation within 60 seconds.
- Page 32 Note: • In irrigating process, if you press the button, all irrigation will be paused and the device will enter shutdown mode. • You can press the button to stop all irrigation and enter auto irrigation mode. • You can press the button to adjust the remaining watering time of the activated zone based on your need.
- Page 33 Rain Sensor Bypass: Set controller to OBEY or IGNORE the Rain Sensor a) Set Bypass for one or several zones • Press the button to enter the setting. • Press the button to select the desired zone number. • Press the button for 2 seconds to toggle between OBEY and IGNORE.
-
Page 34: Troubleshooting Guide
PRODUCT WARRANTY This item carries a 2-year warranty against defects in either components or workman- ship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. -
Page 35: Fcc Requirement
FCC Requirement (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide Changes or modifications not expressly approved by the party responsible for compli- ance reasonable protection against harmful interference in a residential installation. - Page 36 WATERING DEFINI- WATERING WATERING ZONE DURATION TION START TIMES CYCLIC DAYS TIME Days of the week: am/pm am/pm Mon. Tue. Wed. Thur. Fri. Sat. Sun. am/pm am/pm odd days even days am/pm am/pm every ____ days Days of the week: am/pm am/pm Mon.
- Page 37 INKBIRD APP...
