Inkbird C929-A Manual

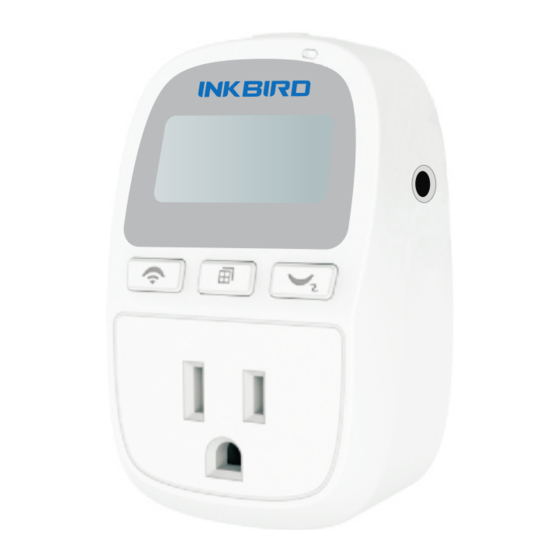

Smart wi-fi controller for aquarium
Hide thumbs

Advertisement

Table of Contents

C929-A Smart Wi-Fi Controller
for Aquarium Manual

Advertisement

Table of Contents
loading

Related Manuals for Inkbird C929-A

Summary of Contents for Inkbird C929-A

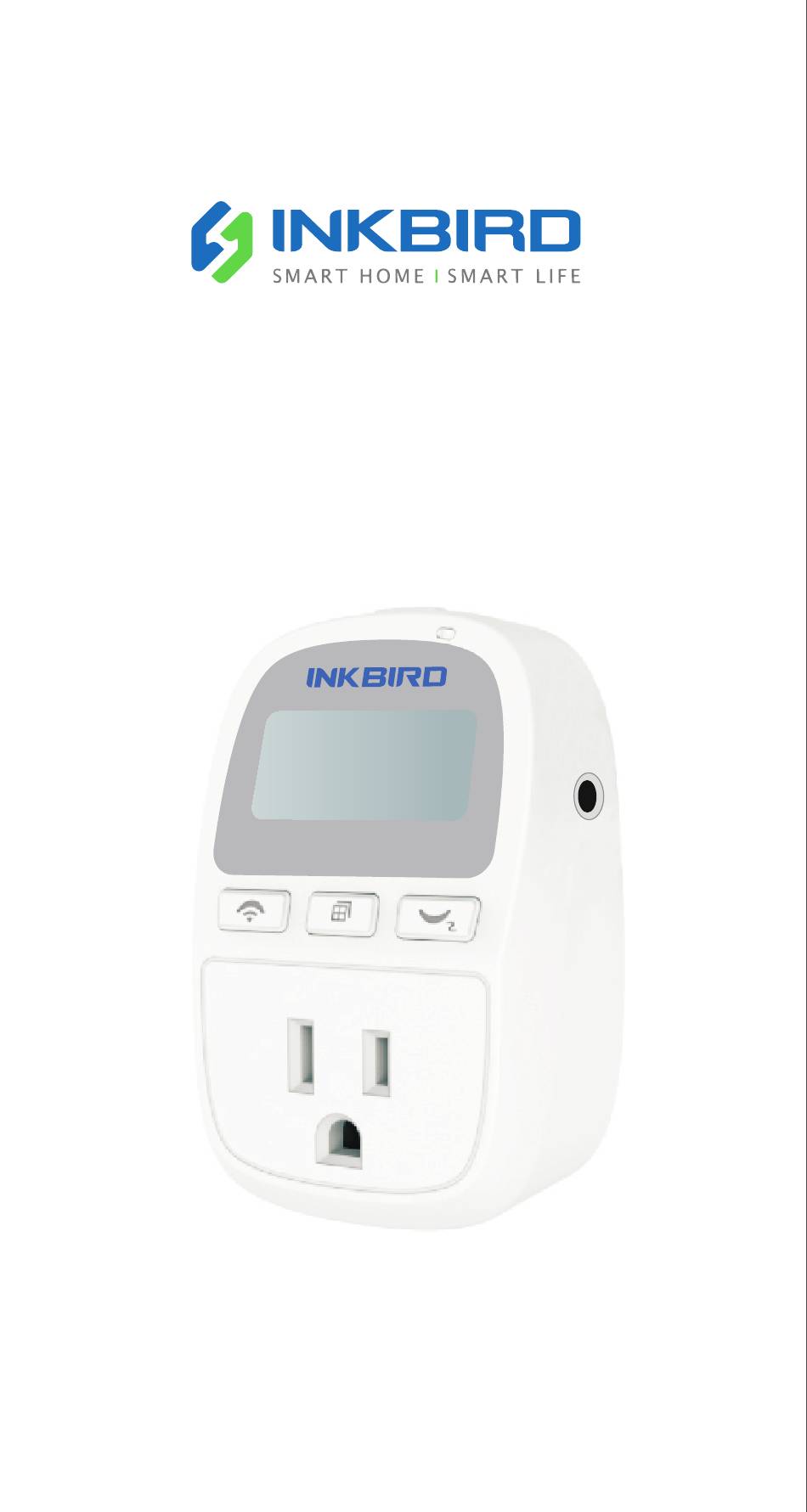

  • Page 1 C929-A Smart Wi-Fi Controller for Aquarium Manual...

  • Page 2: Table Of Contents

    CAUTION Features Technical Parameters Get to Know the Device Inkbird Smart APP Setting Controlling Function Description Abnormal Situation APP Q&A Technical Assistance and Warranty...

  • Page 3: Caution

    1. Caution KEEP CHILDREN AWAY TO REDUCE THE RISK OF ELECTRIC SHOCK, USE ONLY I NDOORS RISK OF ELECTRIC SHOCK. DO NOT PLUG INTO ANOTHER RELOCATABLE POWER TAPS OR AN EXTENSION CORD. USE ONLY IN DRY LOCATION 2. Features Plug-n-Play, easy to use Dual relay controlling, one for control output, another for abnormal protection Support Celsius and Fahrenheit reading...

  • Page 4: Get To Know The Device

    Temperature control range: 20.0℃~35.0℃/68.0℉~95.0℉ Temperature measurement range: -40℃~100℃/-40℉ ~212℉ Temperature display accuracy:0.1℃/℉(<100℃/℉), 1℃ /℉(>=100℃/℉) Temperature measurement accuracy: Range of Range of Temperature(T) Temperature(T) Celsius Fahrenheit Display unit: Celsius ℃ or Fahrenheit ℉ Ambient temperature: -20℃~40℃/-4℉~104℉ Storage environment: temperature: 0℃~60℃/32℉~ 140℉; Humidity: 20~80%RH (Unfrozen or condensation state ) Warranty: Controller 2 years, probe 1 year 4.
  • Page 5 4.1 Indicator light Red Light On: Heating output is on. No Light: No power output. 4.2 Control Panel Instruction PV: It shows the measured temperature when the temperature probe is inserted. T1: In normal mode, it will display the temperature setting value1.

  • Page 6: Inkbird Smart App Setting

    RUN: In running mode, the“RUN”symbol will be displayed. PAUSE: In pause mode, the“PAUSE”symbol will be displayed. 5. Inkbird Smart APP Setting 5.1 Download the APP Search the keyword “InkbirdSmart” in Appstore or Google Play, or scan the following QR code to download and i nstall the APP .
  • Page 7 Tap “+” or “add device” button in home page of the APP to add the device. If the controller is in the normal working state, you can long press 2 seconds to reset the WIFI. It will enter the Smartconfig configuration state by default. You can quickly press to switch the Smartconfig configuration state and the AP mode.
  • Page 8 Add device in AP mode: Plug the device in the socket and make sure that the device is in the AP Configuration State (the LED symbol is flashing slowly, interval flashing 1500ms). click “Confirm indicator slowly blink” and then select Wi-Fi network, enter Wi-Fi password, click “confirm”...
  • Page 9 Device Name Device Information Back to Home Page Current Temperature Heating State Temperature Trend gragh Temperature Setting Value2 Temperature Setting Value1 Power Button Menu Setting Back to Front Page Temperature Unit Switch Temperature Calibration High Temperature Value Low Temperature Value Continuous Heating Time...

  • Page 10: Controlling Function Description

    6. Controlling Function Description 6.1 Button Instructions 6.1.1 Power button In any case, it will be turned off when long pressing for 2 seconds and no output no display. After power off, quickly press to restore the power-on state. In the power-on state, quickly press the button, it will turn on or suspend outlet power.
  • Page 11 the setting state, long press for 2 seconds or without operation in 30 seconds, it will exit the setting state and save the parameters, then return to the working mode. 6.2 Setup Menu Flow Chart Press “SET” Key for over 2 seconds to enter parameters setting mode Temperature Unit...
  • Page 12 6.3 Setting Menu Instruction Menu Code Symbol Remarks Function Fahrenheit or More details Celsius setting on 6.8 High Temperature Alarm More details on 6.5 Low Temperature Alarm Continuous More details 1～72 hours 6 hours Heating Time on 6.6 Temperature More details Calibration on 6.7 6.4 Control Function Description...
  • Page 13 When measured temperature ≤ the setting value of low temperature AL, it will alarm. The screen will rotate to display“AL”and current temperature, buzzer will“bi-bi-Biii”, until the temperature > AL, buzzer will be off and return to normal display and control. Or press any button to only turn the buzzer alarm off.

  • Page 14: Abnormal Situation

    temperature unit is Fahrenheit. If you need to display the unit in Celsius, please set the CF to C and note that when the CF is changed , all setting values will be restored to the default setting and the buzzer will beep. 7.

  • Page 15: Technical Assistance And Warranty

    (not transferable), against defects caused by INKBIRD’ s workmanship or materials. This warranty is limited to the repair or replacement, at INKBIRD’ s discretion, of all or part of the controller. The original receipt is required for warranty purposes.
