Inkbird Hioazo HO-SC-6W User Manual

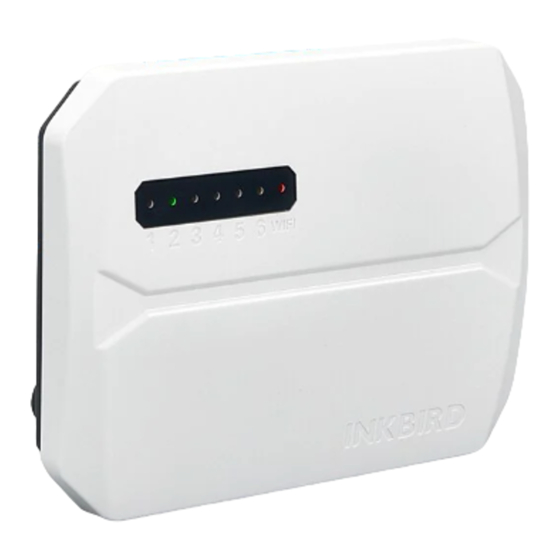

Smart sprinkler controller
Hide thumbs

Advertisement

Quick Links

Download this manual

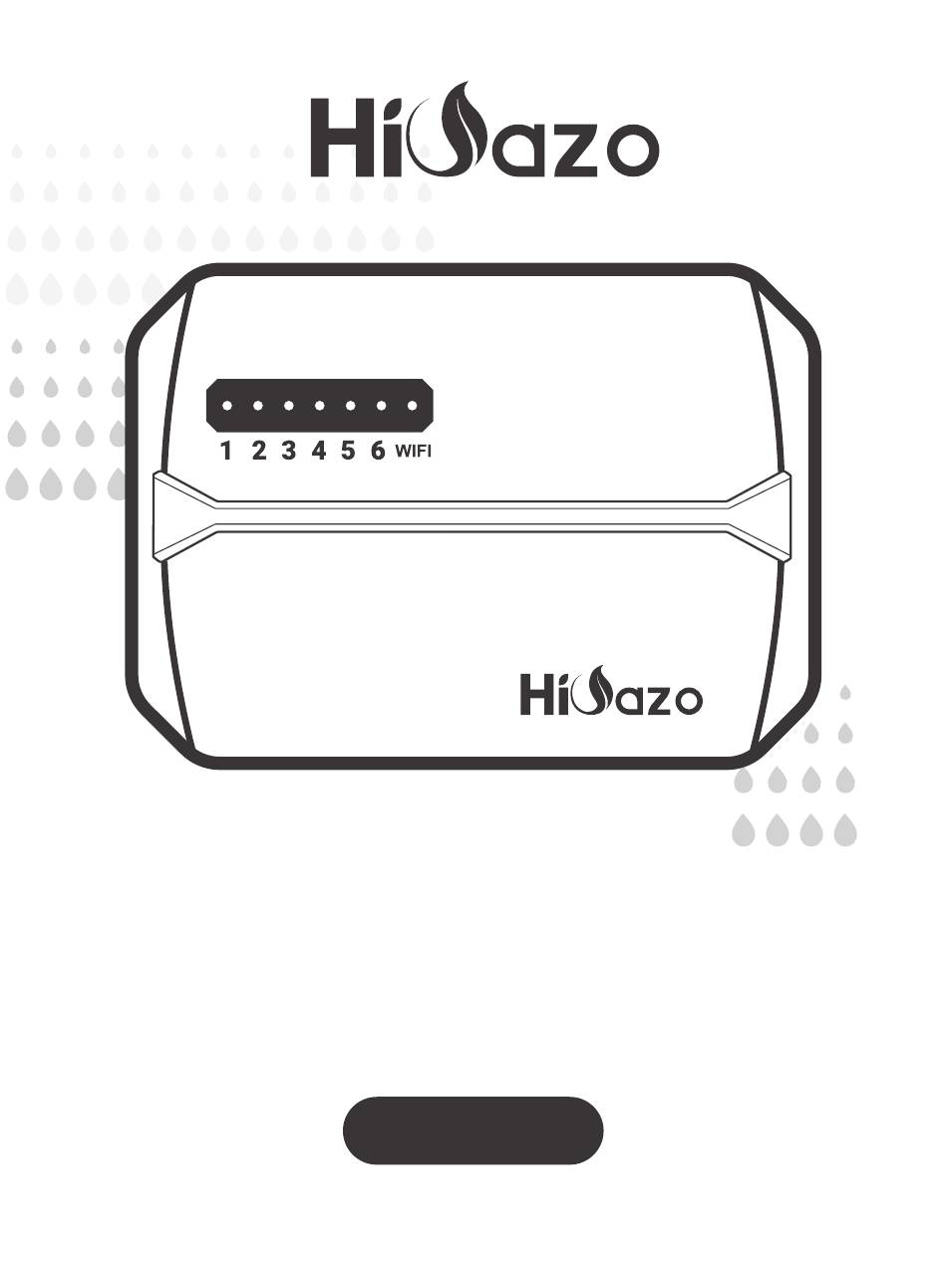

SMART SPRINKLER
CONTROLLER
HO-SC-6W
U S E R
M A N U A L
V1.0

Advertisement

loading

Related Manuals for Inkbird Hioazo HO-SC-6W

Summary of Contents for Inkbird Hioazo HO-SC-6W

  • Page 1 SMART SPRINKLER CONTROLLER HO-SC-6W U S E R M A N U A L V1.0...

  • Page 2: Table Of Contents

    CONTENTS 01 Overview 02 Features & Specifications 03 Product Diagram 04 Operation Instructions 05 Installation 06 Troubleshooting Guide 07 Product Warranty 08 FCC Requirement 09 Irrigation Schedule Table...

  • Page 3: Overview

    01 OVERVIEW INKBIRD HO-SC-6W is a smart sprinkler controller that can upgrade our water pipes into a smart automation system, saving us plenty of time we used to spend on watering. Also, it has Wi-Fi capability that enables us to control and monitor irrigation from our smartphones.
  • Page 4 Controller Size：6.1"*4.7"* 1.3" Product Weight：224g...
  • Page 5 03 WHAT YOU WILL GET...
  • Page 7 04 TOOLS YOU WILL NEED...

  • Page 8: Product Diagram

    05 PRODUCT DIAGRAM Wi-Fi Button Indicators of Wi-Fi Setting Button Connection and Start/Stop Button Irrigation Zone Common Zone1~6 24VAC – 24VAC + Master Valve Sensor PWR IN（AC24V Power Input Port）...
  • Page 11 Hang your new controller on the nut. Then secure the controller with two screws at the bottom. Attach the labels for the marked wires to your new device Common port is usually marked with C. A common wire can be inserted into any wire hole marked with C.
  • Page 13 Connect Pump Start Relay (optional) If you want to start up the water pump of the controller, you must install a pump start relay.The pump start relay is connected in the same way as the main valve. Note: The controller does not provide the main power supply for the water pump.
  • Page 15 Note: PLEASE DO NOT turn on the power before confirming all lines are well connected. Please cut off the power of the line if it's damaged. In that case, we suggest changing a replacement line to avoid danger.
  • Page 16 08 Wiring Diagram...

  • Page 18: Operation Instructions

    09 OPERATION INSTRUCTIONS INKBIRD APP SETTINGS Download the App Search the keyword “INKBIRD” in App Store or Google Play, or scan the QR code on the left to download and install the APP. Pair Your Phone United States United States...
  • Page 19 Open the app and enter the login interface. You can log in by your Apple ID or Google ID. You can also click register and use your email address as prompted to register. Registration and login are completed. Congratulation that you created your family successfully.
  • Page 20 Click “+” on the top right corner to add a device. Find and click HO-SC-6W on All Devices or Device Category. 1/ Power on the device HO-SC-6W...
  • Page 21 2/ Confirm the Wi-Fi icon status and click the relevant icon on the app. Wi-Fi Wi-Fi Note: If the Wi-Fi icon on the device is in the Stay Lit or No Display status, click the relevant icon on the app and follow the steps below.
  • Page 22 Wi-Fi Wi-Fi Fast Flash: Press and hold the button for 2 seconds to reset the Wi-Fi connection, and make sure the Wi-Fi indicator flashes quickly. Slow Flash: Press and hold the button for 2 seconds to reset the Wi-Fi connection. When the Wi-Fi indicator is quickly flashing, short press the button again to switch to the slow flashing state.
  • Page 23 3/ SmartConfig Connection Mode (Fast Flash) Wi-Fi Select your Wi-Fi device name, enter the Wi-Fi password, and click “Next Step” to start the connection.
  • Page 24 Cancel Pairing is successful.
  • Page 25 4/ AP Connection Mode (Slow Mode) Wi-Fi Select your Wi-Fi device name, enter the Wi-Fi password, and click “Next Step”to start the connection.
  • Page 26 Go to Connect Click “Go to Connect” to go to your phone's WLAN setting page, select the “SmartLife-XXXX” to connect to the router, and then return to the connection page.
  • Page 27 Cancel Pairing is successful.
  • Page 28 APP OPERATION Main Interface Device Name Menu Information HO-SC-6W Back to Local Weather Home Page Conditions Scheduled Mode / Manual Mode/ Schedules & History Zone Number Edit Schedules Edit Multi-zone Schedules...
  • Page 29 Main Interface Back to Home Page Rain Sensor Switch Master Valve Switch Master Valve Switch Seasonally Adjusted Value More Information Reset Parameters Power ON/OFF...
  • Page 30 Scheduled Watering Interface Information of the upcoming irrigation HO-SC-6W zone HO-SC-6W Information of current irrigating zone 0 minutes Finished Time Seasonally 7 minutes Adjusted Value 0 minutes Scheduled Time Remaining Time Watering Period Zone Number Cancel irrigation of the current zone and activate irrigation of the next zone in the sequence.
  • Page 31 Setting Interface of Scheduled Watering Confirm the settings Shut down the zone Cancel the setting and restore the last setting parameters Zone description, such as“Front yard garden” Watering Peroid Choose to obey or ignore the rain sensor on this zone Scheduled irrigation time Start Time Shut down the zone and...
  • Page 32 Setting Interface of Manual Watering HO-SC-6W HO-SC-6W Zone Number Manual watering time Start irrigation Multi-zone Settings Stop irrigation at the current zone and enter the next zone...
  • Page 33 HO-SC-6W Finished Time Remaining Time Stop all irrigation...
  • Page 34 Manual Mode Press the button to enter the setting mode, and the indicator lights of each channel are on. When setting channel one, the indicator of channel one flashes. Press the button to cancel the manual irrigation of that channel and enter the setting of the next channel. Press the button to confirm the setting and advance to set the next channel.

  • Page 35: Troubleshooting Guide

    Here are some possible reasons and relative solutions for reference. We hope they are helpful. For any further questions, please feel free to contact INKBIRD. Q: The water supply is not available? A: Please confirm if the water main is connected and if all water pipes are open and work normally.

  • Page 36: Fcc Requirement

    During this period, products that prove to be defective will, at the discretion of HiOazo, be either repaired or replaced without charge. support@inkbird.com 12 FCC REQUIREMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 37: Irrigation Schedule Table

    – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 38 TIME Days of the week: am/pm am/pm Mon. Tue. Wed. Thur. Fri. Sat. Sun. am/pm am/pm odd days even days am/pm am/pm every ____ days Days of the week: am/pm am/pm Mon. Tue. Wed. Thur. Fri. Sat. Sun. am/pm am/pm odd days even days am/pm...
  • Page 39 WATERING DEFINI- WATERING WATERING ZONE DURATION TION START TIMES CYCLIC DAYS TIME Days of the week: am/pm am/pm Mon. Tue. Wed. Thur. Fri. Sat. Sun. am/pm am/pm odd days even days am/pm am/pm every ____ days...
  • Page 40 WATERING ZONE DURATION TION START TIMES CYCLIC DAYS INKBIRD TECH.C.L. support@inkbird.com Factory address: 6th Floor, Building 713, Pengji Liantang Industrial Area, NO.2 Pengxing Road, Luohu Disctrict, Shenzhen, China Office address: Room 1803, Guowei Building, NO.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China V1.0...
