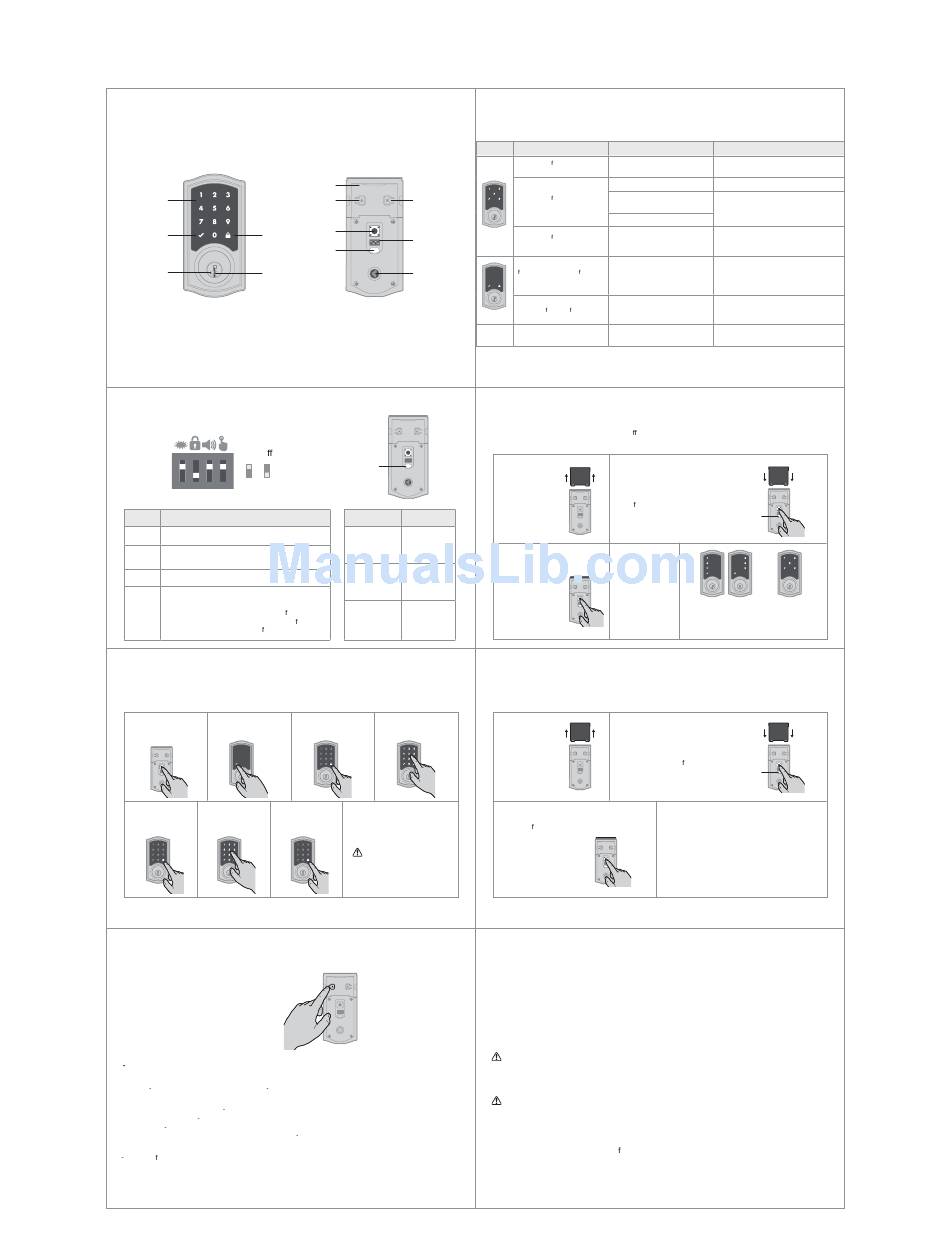

SmartCode at a Glance
Exterior
Touchscreen
Checkmark Lock
symbol symbol
SmartKey Keyway
tool hole
Switches and Status LED Colours
Switches
On O
1 2 3 4
Switch Function
1 Door lock status LED blinks every 6 seconds
Lock automatically re-locks door 30 seconds after
2
unlocking. Disabled if no codes are programmed.
3 Audio
SecureScreen feature displays random digits to be
pressed before entering user code. This added-
4 security feature ensures that there are ingerprints
on all digits so that codes cannot be identi ied by
examining the touchscreen for ingerprints.
Deleting a Single User Code
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the online Programming and Troubleshooting Guide.
1 Keep door open. 2 Press Checkmark 3 Press Lock
Press Program symbol once.
button once.
5 Press Lock 6 Re-enter user 7 Press Lock
symbol once. code. symbol once.
If the screen is not pressed for 20 seconds, the system will time out,
and you will need to restart the procedure.
Network Information Network Information
Removing the lock from the network
Follow your smart home system's instructions
to remove the lock from the network. When
prompted by the system, press button A" on the
lock interior once.
Z Wave System Notes
This product is a security enabled Z-wave Plus product and must be used with a Security
Enabled Z Wave controller to be fully utilized. Z Wave is a "Wireless mesh network," and
results may vary based on building construction and communication path.
To assure interoperability, each Z Wave product must pass a stringent conformance test to
assure that it meets the Z Wave standard for complete compliance with all other devices and
controls. The Z Wave identity mark assures consumers, integrators, dealers and manufacturers
that their products will reliably perform with any other Z Wave device. And, regardless of the
vendor, always powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products.
Z Wave Con iguration and Association Parameters are available on the
SmartCode 10 Touchscreen page at www.weiserlock.com.
Reference Guide
Interior (cover removed)
Back
panel
Button "A" Button "B"
Program
button
Switches
Status
LED
Turnpiece
shaft
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
Status
LED
Colour Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
4 Enter user code
symbol once. to be deleted.
If unsuccessful
Make sure to enter the same
valid code in steps 4 and 6.
Test code
While the door is open, test the
user code to make sure it no
longer unlocks the door.
4 / 4
System Alerts
Display Alert Reason
"X" pattern lashes one time
One incorrect code entered.
with one beep*.
No user code programmed.
"X" pattern lashes three Programming timeout after 20
times with three beeps*. seconds.
Unsuccessful programming.
"X" pattern lashes 15 times Three incorrect codes entered
with 15 beeps* within one minute.
Checkmark and lock symbols
lash simultaneously ive
Low battery.
times with long continuous
beep*.
Checkmark and lock symbols
Door jammed while attempting
alternate lashing ive times
to lock.
with long continuous beep*.
Interior assembly is
N/A Lock beeps continuously.
disconnected from exterior.
*Beeping sound will only be heard if switch #3 is on.
Manual Door Handing
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a di erent door.
1 Remove 2 Press and HOLD the Program
battery pack. button while reinserting the
battery pack.
Release button once battery
pack is installed. The status LED
will lash red and green.
3 Press the Program 4 The latch bolt
button once more. will extend and
retract to learn
the orientation
of the door.
Factory Reset
A factory reset will delete all codes associated with the lock, and it will
remove it from your smart home system.
1 Remove 2 Press and HOLD the Program
battery pack. button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED lashes red.
3 Press the Program button
once more. The status
LED will lash green and
red several times.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder's hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a quali ied locksmith or other security professional.
Solution
Re-enter code.
Program at least one user code.
Attempt programming procedure again.
Re-enter code after 60-second
touchscreen lockout.
Replace batteries.
Manually re-lock door. If needed,
reposition strike.
Remove battery pack, reconnect the interior
to the exterior, then replace battery pack.
Status
LED
Success Failure
If the touchscreen indicates a failure, see the
online Programming and Troubleshooting Guide
or call Technical Support.
Status
LED
4 After a few seconds, the lock will
initiate the door handing process, and
the latch bolt will extend and retract
to learn the orientation of the door.
