Alto-Shaam 300-TH/III Touch Installation Operation & Maintenance

Cook & hold oven touch control
Hide thumbs Also See for 300-TH/III Touch:

Advertisement

Quick Links

Download this manual See also: Installation Operation & Maintenance, Operation & Installation Manual

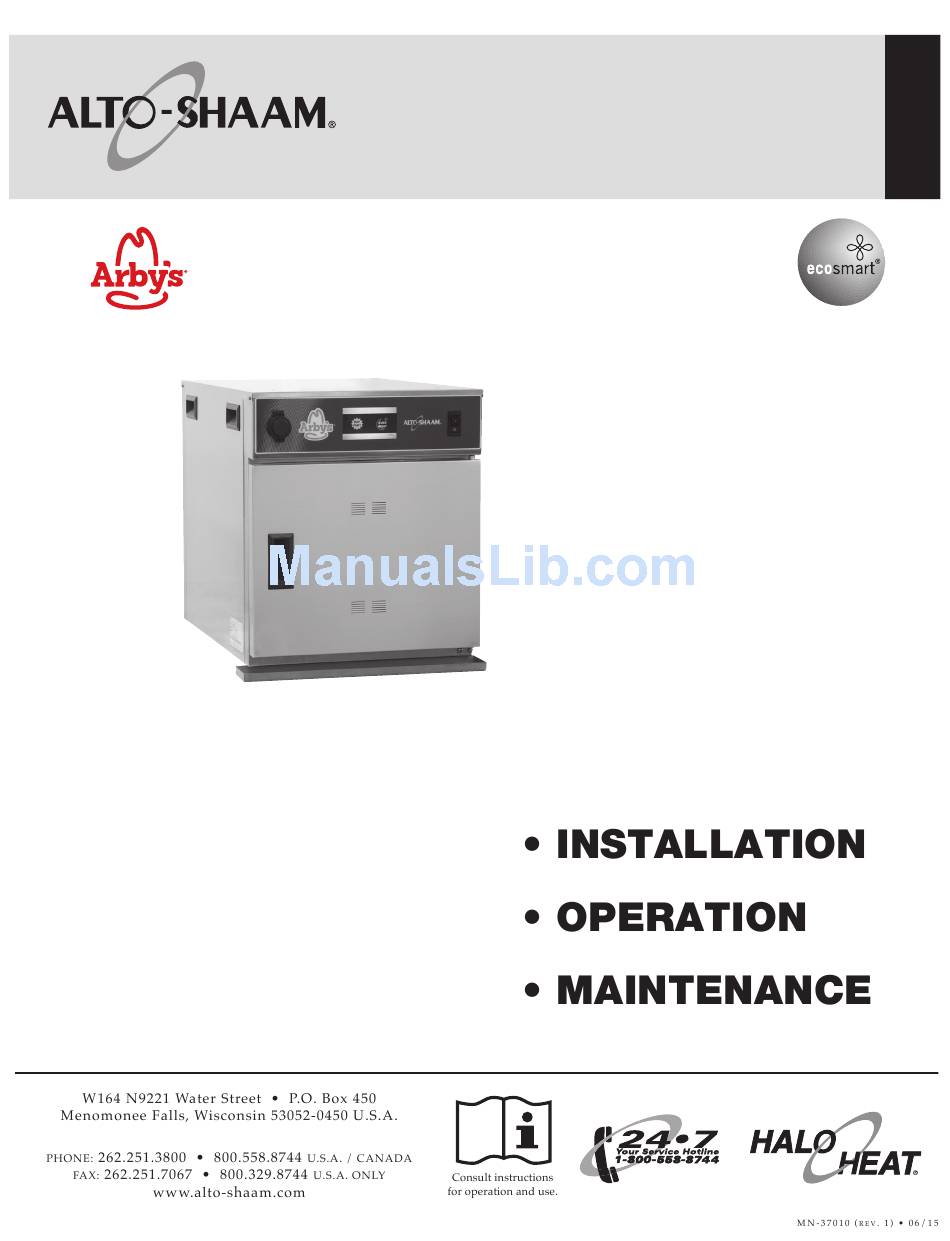

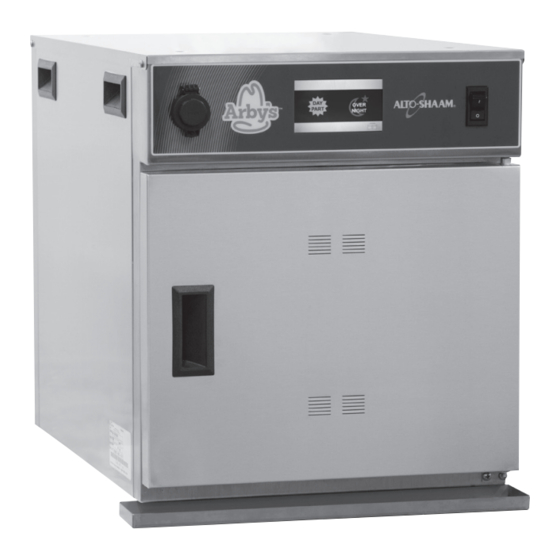

Co o k & Ho ld O v e n
To uch Co ntr ol
Model:
300-TH/III Touch
.
.
.
P R I N T E D I N U
S
A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300-TH/III Touch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto-Shaam 300-TH/III Touch

Summary of Contents for Alto-Shaam 300-TH/III Touch

  • Page 1 Co o k & Ho ld O v e n To uch Co ntr ol Model: 300-TH/III Touch P R I N T E D I N U...
  • Page 2 Delivery ........1 Sanitation Unpacking .
  • Page 3 NOTICE: See Transportation Damage and Claims section located in this manual. NOTICE: Additional manuals are available from the Alto-Shaam Tech Team Service Department. Appliance and accessories may be heavy. To prevent serious injury, ALWAYS use a sufficient number of trained and experienced workers when moving or leveling appliance and handling accessories.
  • Page 4 Used to indicate that referral to DO NOT dispose of electrical or operating instructions is recommended electronic equipment with other to understand operation of equipment. municipal waste. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 5 (do not use water to extinguish a grease fi re!). Failure to clean the appliance properly invalidates the warranty and relieves Alto-Shaam of all liability. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental...
  • Page 6 ALWAYS use a sufficient number appliance. of trained and experienced workers when moving or leveling appliance and handling accessories. ® ® NOTICE: 2. DO NOT 3. DO NOT MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 7 Cord Length: 9 ft. (2.7 M) 26-1/16" (662mm) 16-13/16" (426mm) & OVEN EXTERIOR VOLTAGE PHASE CYCLE AMPS CORD PLUG 5-15 NEMA 15A-125 V PLUG OVEN INTERIOR : 129 SHIP CARTON DIMENSIONS L X W X H MAXIMUM MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 8 Metal parts of this equipment become extremely hot when in operation. To prevent SERIOUS INJURY, DEATH, OR PROPERTY DAMAGE, ALWAYS disconnect unit from power source before cleaning or servicing. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 9 DEATH, or PROPERTY DAMAGE: All electrical connections must be made by a qualified service technician in accordance with applicable electrical codes. ALWAYS use the correct AWG NOTICE: wire size based on the electrical requirements for the appliance. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 10 Error Codes Cavity: 76ºF Heater 0000:07:44:49 Probe 1: 85ºF Probe 2: 75ºF Probe 3: 74ºF Probe 4: 75ºF Download HACCP Download Recipes E-71 Upgrades E-94 Features Probe Calibration Cook and Hold Calibration Options Recipe Review MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 11 250°F 0°F Note: MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 12 Downloads ACCESSIBLE BY PASSWORD ONLY Download HACCP Download Recipes Upgrades Note: Note: Note: Sample of Data File HACCP data can only be read using Alto-Shaam HACCP Viewer software. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 13 Downloads ( CONTINUED Note: Once the upgrade is complete, you must reset the control to the Factory Presets by selecting the following: MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 14 Recipe Review Features Probe Calibration Note: Recipe Review Cook and Hold Calibration Options ACCESSIBLE BY PASSWORD ONLY Note: Warning: Pressing Factory Reset will erase all User Settings, Recipes and presets programmed by the user. Note: MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 15 Probe Count: Cavity: 76ºF Heater 0000:07:44:49 Probe 1: 85ºF Probe 2: 75ºF Probe 3: 74ºF Probe 4: 75ºF Cavity Probe 1-4 Heater E-71 E-94 One brief beep Long beep Continuous beeps at 1 second intervals MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 16 VEGETABLES 160°F — 175°F 71°C — 79°C THE HOLDING TEMPERATURES LISTED ARE SUGGESTED GUIDELINES ONLY FOOD HOLDING SHOULD BE BASED ON INTERNAL PRODUCT TEMPERATURES ALWAYS FOLLOW LOCAL HEALTH HYGIENE REGULATIONS FOR ALL INTERNAL TEMPERATURE REQUIREMENTS MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 17 (do not use water to (muriatic acid) on stainless steel. extinguish a grease fi re!). Failure NEVER use wire brushes, metal to clean the appliance properly scouring pads or scrapers. invalidates the warranty and relieves Alto-Shaam of all liability. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 18 DO NOT use water jet to clean. Failure to observe this precaution will void the warranty. To prevent SERIOUS INJURY, DEATH, OR PROPERTY DAMAGE, ALWAYS disconnect unit from power source before cleaning or servicing. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 19 To protect stainless steel surfaces, completely avoid the use of abrasive cleaning compounds, chloride based cleaners, or cleaners containing quaternary salts. NEVER use hydrochloric acid (muriatic acid) on stainless steel. NEVER use wire brushes, metal scouring pads or scrapers. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 20 ABOVE 40°F (ABOVE 4°C) SAFE ZONE 36°F TO 40°F (2°C TO 4°C) FROZEN FOODS DANGER ZONE ABOVE 32°F (ABOVE 0°C) CRITICAL ZONE 0°F TO 32°F (-18°C TO 0°C) SAFE ZONE 0°F or below (-18°C or below) MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 21 Do not attempt to repair or service the oven beyond this point. Contact Alto-Shaam for the nearest authorized service agent. Repairs made by any other service agents without prior authorization by Alto-Shaam will void the warranty.
  • Page 22 X represents the probe (1-6). Any PX30 error indicates that the product connected to the identified probe dropped outside the safe temperature threshold by 5°F or more after it had previously achieved the required temperature threshold. Product should be evaluated and/or discarded. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 23 P ar t n u mber s a n d dr a win g s ar e su bje ct to ch an g e w ith o u t n o tic e. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 24 To prevent SERIOUS INJURY, DEATH, To prevent SERIOUS INJURY, DEATH, OR PROPERTY DAMAGE, OR PROPERTY DAMAGE, ALWAYS ALWAYS disconnect unit from power lock-out or post breaker panel until service work has been completed. source before cleaning or servicing. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 25 P ar t n u mbe r s an d dr a win g s a r e su bjec t to c h an g e w ith o u t n o tice. MN-37010 (Rev. Arby’s 300-TH/III Touch...
  • Page 26 CR-36971 SCREW, M4 x 0.7 x 45mm PAN SC-28142 SERIAL CABLE MOUNTING BOX 1018249 HI-LIMIT PROTECTION COVER 1003936 CABLE, ASSY, 300-TH/III TOUCH 5018092 SCREW, M4 x 0.7 x 6mm PAN SC-22271 BUSHING, STRAIN RELIEF, 90° BU-34898 THERMOSTAT, 300F HI-LIMIT TT-33476...
  • Page 27 MN-37010 (Rev. Arby’s 300-TH/III Touch...

  • Page 28: Transportation Damage And Claims

    E ffe c tive Novemb er 1, 2012 RECORD THE MODEL AND SERIAL NUMBER OF THE APPLIANCE FOR EASY REFERENCE. ALWAYS REFER TO BOTH MODEL AND SERIAL NUMBER IN ANY CONTACT WITH ALTO-SHAAM REGARDING THIS APPLIANCE. Model: Date Installed:...
