Chapter 2 : STARTING

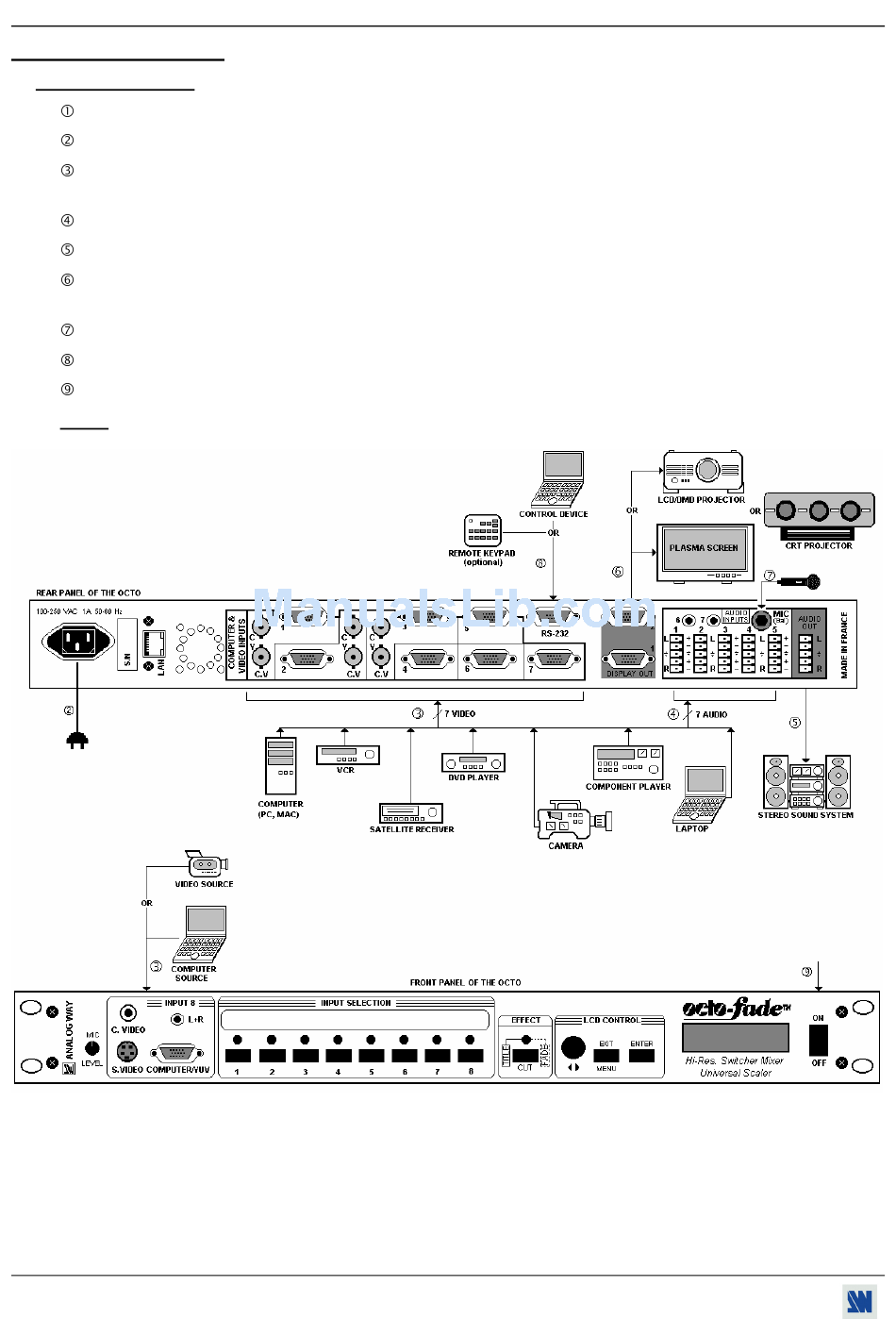

2-1. CONNECTIONS
Turn OFF all of your equipment before connecting.
Connect the AC Power supply cord to the OCTO and to an AC power outlet.
Connect your Computer and video sources to the 8 inputs of the OCTO (7 inputs on the rear panel and one input on
the front panel). See next paragraphs for more information.
Connect all of your audio sources to the corresponding AUDIO IN connectors.
Connect the AUDIO OUT connector to your sound system.
Connect the DISPLAY OUT connector to the DATA INPUT of your display device (data projector, plasma
screen...).
Connect your microphone to the rear panel MIC (Bal) connector (jack 6.35 mm).
If needed, connect your control device or the remote keypad to the RS-232 connector.
Turn ON the OCTO (front panel switch). Then turn ON all yours input sources, and then your display device.
NOTE: For switching operation please see Chapter 3 : OPERATING MODE.
